UT-9061A Industrial Wireless Gateway Intelligent Gateway

SKU : UT-9061A

Price

85.00 USD


105.00 USD

 (-19%)
Quantity to buy
Total 85.00 USD

Do not have enough stock

Out of stock

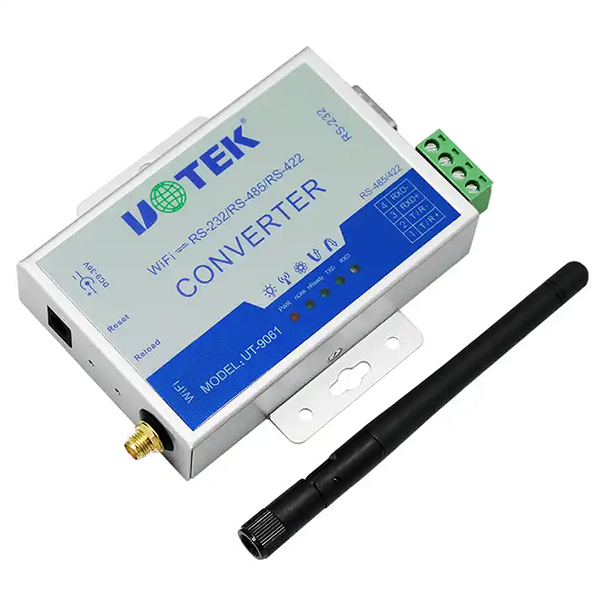

UT-9061A Industrial Wireless Gateway Intelligent Gateway

Serial Device Servers Rs-232 Rs-485 Rs-422 To Wifi Converter

Overview :

  • UT-9061A is a wireless WIFI converter, which can realize the conversion between user RS-232, RS-485, RS-422 and wireless network (WIFI) interface. Data conversion adopts isolation technology, which effectively guarantees the reliability of the product. With a variety of conversion modes, it supports AT commands + WEB interface settings, and realizes simple interconnection between wired and wireless networks for user equipment. With a certain anti-surge protection, it is widely used in the fields of data communication and industrial automation.

หมายเหตุ : สินค้ารายการนี้ มีศูนย์ บริการในประเทศ,มีอะไหล่เครื่องราคาส่งพร้อมช่างผู้ชำนาญ มีบริการติดตั้ง สอนการใช้งานฟรี และให้คำแนะนำกรณีมีช่างติดตั้งเอง จัดส่งถึงมือลูกค้าก่อนชำระเงิน ค่าจัดส่งค่าใช้จ่ายอัตตราของผู้ให้บริการรายต่างๆ ตามบิล สำหรับร้านค้าและช่างมีราคา พิเศษ ร้านค้าหรือช่างสามารถสมัครสมาชิกสะสมแต้ม เพื่อแลกของรางวัลได้ที่หน้าเวปไซด์ มีของรางวัลหลายรายการ ( สินค้านี้ซื้อ 1เครื่อง ขึ้นไป ส่งฟรี ) รับตัวแทนจำหน่าย ฟรีข้อมูลสินค้า รับสอนประกอบและตรวจซ่อมฟรี / ไม่มีค่าใช้จ่าย / มีอะไหล่และเครื่องมือในราคาช่าง / มีบริการปรับปรุง เครื่องจักรเพื่อให้มีประสิทธิภาพในการประหยัดพลังงาน ให้ระบบทำงานเพื่อเพิ่มประสิทธิภาพลดการซ่อมยึดอายุการใช้งาน สินค้านี้ขายยกลังในราคาส่ง ราคาที่เสนอต่อ ชิ้น สินค้านี้ต้องตรวจสอบล่าสุดก่อนส่งถึงมือผู้ใช้งานตามมาตรฐานของผู้ผลิตเพื่อลดปัญหาการเสื่อมคุณภาพจากการจัดเก็บที่ไม่ถูกต้องเป็นเวลานาน

Order tracking

  • Standards: RS-232, RS-485, RS-422 TIA/EIA
  • Automatic data direction control, no need external flow control
  • Signal (RTS), real TXD/RXD/GND communication
  • Baud rate: 300bps-115.2Kbps
  • Allows connecting 128 sets RS-485 or RS-422 device
  • Transmission distance: 5,000m(9,600bps)
  •  Power & data flow indicator, failure detection
  • Working mode: asynchronous half-duplex (RS-485) or full-duplex (RS-422), without jumer configuration
  • 2.5KVrms/500VDC enhanced isolation, special DC/DC module, RS-485/422 provides with 1,500W lighting, surge & ±15KV ESD protection each line

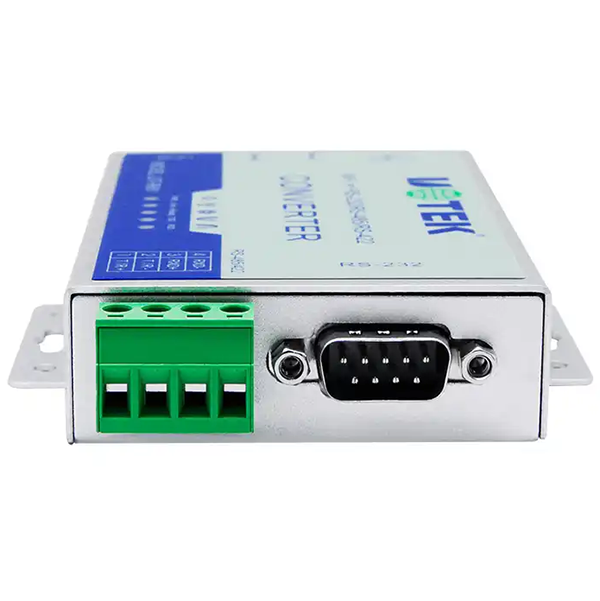

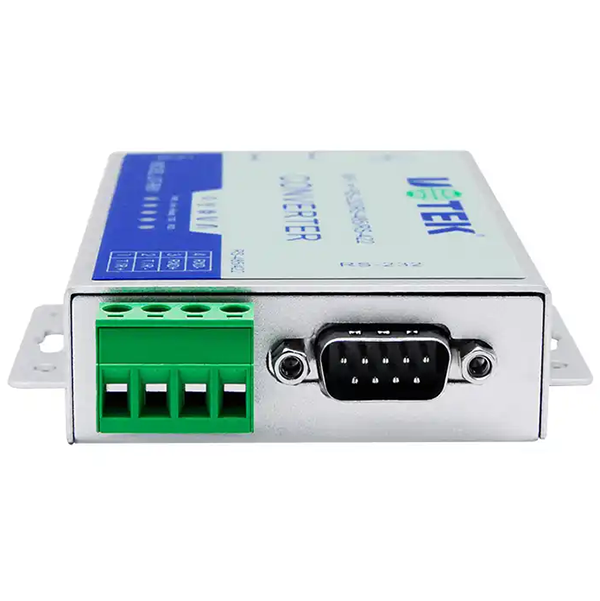

  • Connector: DB9 female to DB9 male RJ-45 connector
  • Transmission media: twisted-pair or shielded cable
  • Dimension: 97×65×22mm
  • Operating temperature: -40℃ to 85℃
  • Relative humidity: 5% to 95%
  • Works with all communication software, plug & play
  • Supports all operating system

Product Spec.
