DINA-DR1 DIN rail mounted lighting controller

Order tracking

SKU : DINA-DR1

Price

2,600.00 USD


2,750.00 USD

 (-5%)
Quantity to buy
Total 2,600.00 USD

Do not have enough stock

Out of stock

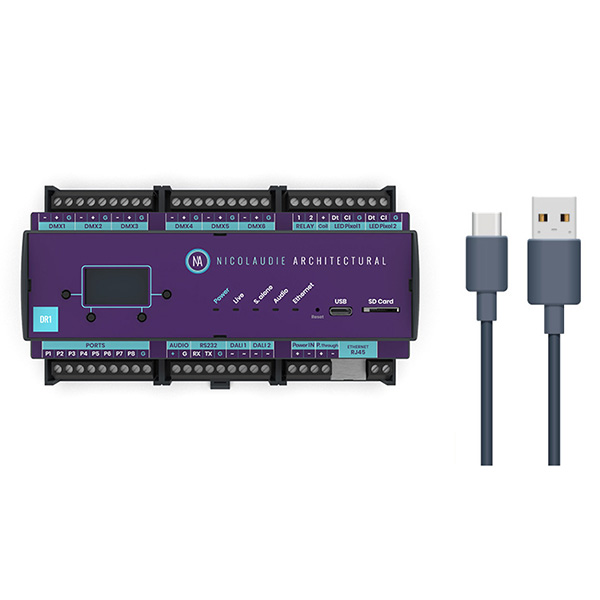

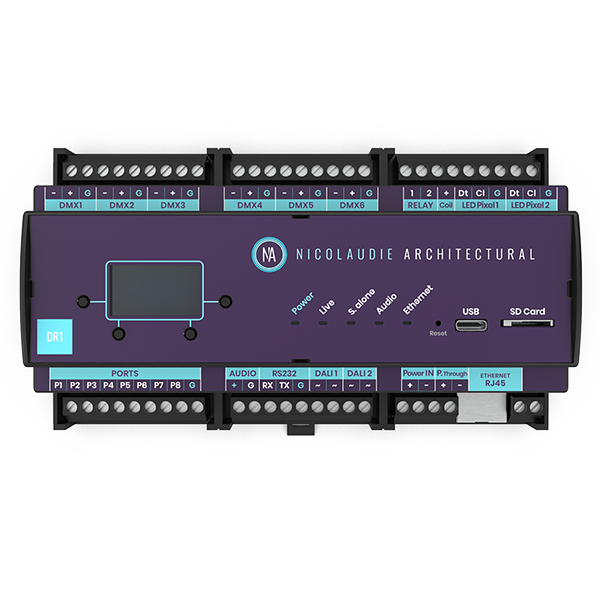

DINA-DR1 DIN rail mounted lighting controller

The DINA-DR1 is the latest lighting control solution from Nicolaudie Architectural. Our talented R&D team has worked a lot to design this all-in-one controller featuring multiple output protocols, triggering and integration facilities, programmable memory for dynamic lighting sequences, remote control

Overview :

  • The DINA-DR1 is a lighting controller for the most ambitious of projects, outputting 6
  • DMX512 universes (3072 channels) in 20 zones, eDMX and DALI simultaneously. Trigger lighting scenes using calendar triggers and conditional rules. Connect to the Nicolaudie Cloud for remote control and management.
  • Lighting levels, color and effects can be programmed from a PC or Mac. Remote control from iPhone/iPad, Android, Win & Mac.

หมายเหตุ : สินค้านี้ มีศูนย์ บริการในประเทศไทย สินค้านี้มีบริการจัดส่งถึงมือลูกค้าพร้อมชำระเงิน / มีบริการออกแบบ Food process / มีผลิต OEM/ODM.พร้อมบริการหลังการขาย / สินค้ามีราคาตัวแทนและราคาช่าง

สินค้ารายการนี้ ติดตั้งฟรี บริการตรวจซ่อมในประเทศฟรี 2ปี / ไม่รวมค่าอะไหล่ / สินค้ารับประกัน 2ปี / Service ทุกๆ 1 เดือน รับตัวแทนจำหน่ายสินค้าราคาส่งและช่างบริการทุกพื้นที่ รับปรับปรุงระบบใหม่/เก่า ให้รองรับการทำงานเพื่อยึดอายุการใช้งาน ลดค่าซ่อม ลดค่าใช้จ่าย ประหยัดพลังาน เพิ่มประสิทธิภาพการทำงาน

DINA- DR1 DIN rail mounted lighting controller


 The DINA-DR1 is the latest lighting control solution from Nicolaudie Architectural. Our talented R&D team has worked a lot to design this all-in-one controller featuring multiple output protocols, triggering and integration facilities, programmable memory for dynamic lighting sequences, remote control

DINA- DR1 DIN rail mounted Main Feature

 Programmable with ESA Pro 2

ESA Pro 2 is our latest generation of programming software. Available for Mac and Windows, this is the perfect complement to the DINA-DR1 controller: pixel mapping, triggering management, patch configuration, everything is available with a few mouse clics. The only limit is your imagination

 New Stand Alone Engine

The new Nicolaudie Architectural engine (NSA) offers great possibilities for the control of your lighting installation: multi-zone, extended triggers, multiple output protocols, 16-bit channels management, full recovery after power lose, and more...

Some features may require future firmware updates, see the specifications for estimated availability

 Extended triggering possibilities

 Triggers are very important for lighting control. The DINA-DR1 offers multiple possibilities to trigger your lighting scenes: time/date, input ports, RS232, TCP/UDP commands, DALI...
In combination with ESA Pro 2 software the DR1 offers a lot more than just assigning a trigger to a scene. Each trigger is made of an event and conditions. The programmer can define a specific conditional procedure for each trigger to perfectly fit the most demanding lighting installations.
Some features may require future firmware updates, see the specifications for estimated availability

 Multiple output protocols

 A total of 3072 channels (1024 RGB or 768 RGBW devices) can be individually controlled by the DINA-DR1. If most of the installations will use the 6 DMX outputs, it is also possible to drive the 3072 channels over different protocols and connectors: eDMX (Art-Net, SACN) through the RJ45 connector or LED Pixel (2 output connections).
Some features may require future firmware updates, see the specifications for estimated availability

Scalable

 Several DINA-DR1 lighting controllers can be linked together on a standard local network to extend the number of channels (e.g. 4 linked DINA-DR1 would make it possible to control 4x3072=12288 channels and so on...).
Some features may require future firmware updates, see the specifications for estimated availability

DINA- DR1 DIN rail mounted Spec.

DINA- DR1 DIN rail mounted Spec.

DINA- DR1 DIN rail mounted Dimension

DINA- DR1 DIN rail mounted Programming

            Brochure & Picture Download :
