MGWIP.430 Buspro Gateway (HomeKit Version)

Overview :

  • Buspro Gateway is a product designed based on Linux system hardware platform. It supports HDL Buspro Setup Tool, ON Pro, Cloud server, etc., integrating scene, logic, security, clock, server automatic prompt upgrade and other functions.HomeKit is a smart home platform released by Apple in 2014. Apps created with HomeKit allow you to control connected accessories in your home.
  • Buspro gateway(HomeKit Version) supports the following functions currently: switch, dimming, CCT, RGB, curtain motor, curtain panel (Apple only support open and close )
  • Support commissioning software startup function: air conditioning

Its main functions include:

  • Real-time update of device status and device control
  • Scene function: add scene, * area capture scene, * movie (dynamic) scene function
  • Automation function
  • Security function
  • Support local clock, network clock, automatic synchronization of network time
  • The server application automatically prompts for upgrade
  • Supported protocol http \ tcp \ udp \ mqtt
  • Communication via LAN between App and gateway
  • APP remote access through the Cloud
  • System detection, device status report
  • Support backup upload and download of APP, Cloud, * SD card, debugging software
  • Drive management of third-party products
  • Factory reset function
  • Data backup and data recovery function

Note: The functions with * are not yet open for use.

หมายเหตุ : สินค้านี้ มีศูนย์ บริการในประเทศไทย สินค้านี้มีบริการจัดส่งถึงมือลูกค้าพร้อมชำระเงิน / มีบริการออกแบบ Food process / มีผลิต OEM/ODM.พร้อมบริการหลังการขาย / สินค้ามีราคาตัวแทนและราคาช่าง สินค้ารายการนี้ สอนการใช้งาน ติดตั้งฟรี บริการตรวจซ่อมในประเทศฟรี 2ปี / ไม่รวมค่าอะไหล่ / สินค้ารับประกัน 2ปี / Service ทุกๆ 1-3 เดือน รับตัวแทนจำหน่ายสินค้าราคาส่งและช่างบริการทุกพื้นที่ รับปรับปรุงระบบใหม่/เก่า ให้รองรับการทำงานเพื่อยึดอายุการใช้งาน ลดค่าซ่อม ลดค่าใช้จ่าย ประหยัดพลังาน เพิ่มประสิทธิภาพการทำงาน

MGWIP.430 Buspro Gateway

 Basic Parameters

External Environment

Specifications

  • Working voltage: 15~30V DC
  • Working current: 70mA/24V DC
  • Communication protocol: HDL Buspro, Ethernet, RS485
  • Hardware information: 1.2GHz, 512M RAM, 4G Flash
  • Operation system: Linux 3.2.0 Kernel
  • Working temperature: -5℃~45℃
  • Working relative humidity: ≤90%
  • Storage temperature: -20℃~60℃
  • Storage relative humidity: ≤93%



  • Dimensions: 90×36×63.7 (mm)
  • Net weight: 82g
  • Housing material: PA66
  • Installation: 35mm DIN rail installation
  • Protection rating (Compliant with EN 60529): IP20

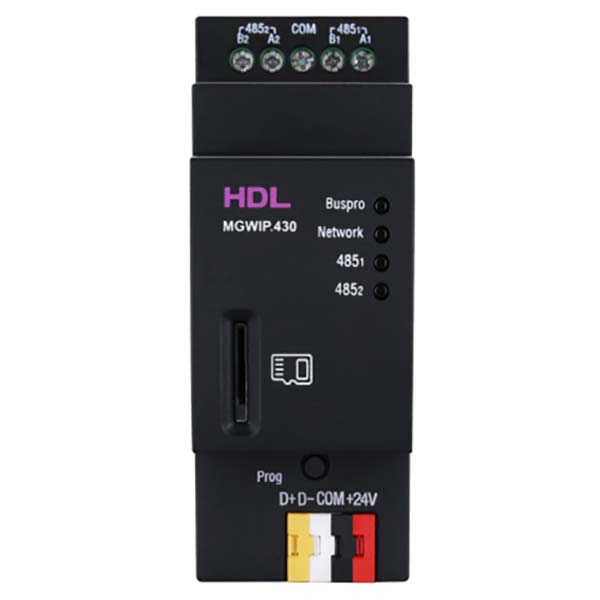

MGWIP.430 Buspro Gateway Parameter

1. RS485 connector
2. Buspro indicator: When there is Buspro data transmission, this indicator flashes.
3. Network status indicator: When there is network data transmission, this indicator flashes.
4. RS4851 indicator: When there is data transmission in RS4851 , this indicator flashes.
5. RS4852 indicator: When there is data transmission in RS4852 , this indicator flashes.
6. * SD card slot: supports up to 32G micro SD card
7. Programming button & indicator: The indicator will flash when the device is working properly. Keep
pressing the button for 3s, the ID can be read and modified via HDL Buspro Setup Tool.
8. HDL Buspro connector
9. RJ45 port
Factory network parameters :
IP: 192.168.10.250
Router IP: 192.168.10.1
Port: 6000
Note: The functions with * is not yet open for use.

MGWIP.430 Buspro Gateway Component

MGWIP.430 Buspro Gateway Dimension
