JFC-009 28U Integrated Outdoor Power Cabinet with UPS

SKU : JFC-009

Price

800.00 USD


850.00 USD

 (-6%)
Quantity to buy
Total 800.00 USD

Do not have enough stock

Out of stock

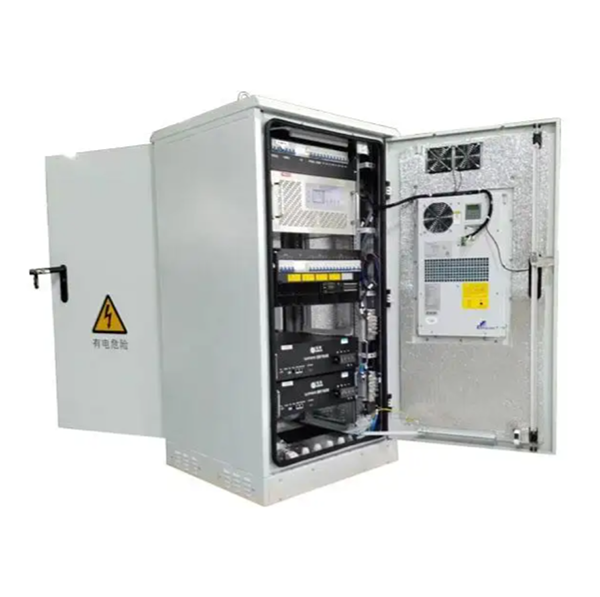

28U Integrated Outdoor Power Cabinet with UPS

Rectifier System Enterprise Firewalls Battery Energy Storage Enclosure Outdoor Use

Description :

  • Type : Enterprise Firewall

Other attributes :

  • Model Number JFC-009 / Warranty 1 Year
  • Place of Origin Bangkok Thailand or Guangdong, China
  • Brand Name Energy Power or JFC
  • Use : Outdoor / Color : White (Other Option)
  • Product name : Outdoor Cabinet
  • Condition : 100% Original Brand
  • Package Carton Packing / 1Unit

Packaging and delivery

  • Selling units Single item
  • Single package size : 120X50X115cm.
  • Single gross weight : 90.000kg.

หมายเหตุ : สินค้ารายการนี้ มีศูนย์ บริการในประเทศ,มีอะไหล่เครื่องราคาส่งพร้อมช่างผู้ชำนาญ มีบริการติดตั้ง สอนการใช้งานฟรี และให้คำแนะนำกรณีมีช่างติดตั้งเอง จัดส่งถึงมือลูกค้าก่อนชำระเงิน ค่าจัดส่งค่าใช้จ่ายอัตตราของผู้ให้บริการรายต่างๆ ตามบิล สำหรับร้านค้าและช่างมีราคา พิเศษ ร้านค้าหรือช่างสามารถสมัครสมาชิกสะสมแต้ม เพื่อแลกของรางวัลได้ที่หน้าเวปไซด์ มีของรางวัลหลายรายการ ( สินค้านี้ซื้อ 1เครื่อง ขึ้นไป ส่งฟรี ) รับตัวแทนจำหน่าย ฟรีข้อมูลสินค้า รับสอนประกอบและตรวจซ่อมฟรี / ไม่มีค่าใช้จ่าย / มีอะไหล่และเครื่องมือในราคาช่าง / มีบริการปรับปรุง เครื่องจักรเพื่อให้มีประสิทธิภาพในการประหยัดพลังงาน ให้ระบบทำงานเพื่อเพิ่มประสิทธิภาพลดการซ่อมยึดอายุการใช้งาน สินค้านี้ขายยกลังในราคาส่ง ราคาที่เสนอต่อ ชิ้น สินค้านี้ต้องตรวจสอบล่าสุดก่อนส่งถึงมือผู้ใช้งานตามมาตรฐานของผู้ผลิตเพื่อลดปัญหาการเสื่อมคุณภาพจากการจัดเก็บที่ไม่ถูกต้องเป็นเวลานาน

Order tracking

      Brief introduction:

Outdoor telecom cabinets typically come with a range of features to ensure the protection and functionality of the telecom equipment. Some common features of outdoor telecom cabinets include:
Weatherproof Design: Outdoor cabinets are designed to withstand harsh weather conditions such as rain, snow, extreme temperatures, and dust. They are typically made of durable materials like stainless steel or aluminum and have IP (Ingress Protection) ratings to indicate their level of protection against water and dust.
Thermal Management: Outdoor cabinets often include thermal management systems to regulate the temperature inside the cabinet and prevent overheating. This can include features like fans, air conditioning units, heat exchangers, or passive cooling methods.
Security Measures: Outdoor cabinets are equipped with security features to protect the telecom equipment from theft or unauthorized access. This can include lockable doors, tamper-proof locks, and alarm systems.
Cable Management: Outdoor cabinets have provisions for proper cable management to organize and protect the cables connected to the telecom equipment. This can include cable trays, cable entry points, and cable management accessories.
Power Distribution: Outdoor cabinets may have built-in power distribution units (PDUs) to distribute power to the telecom equipment. This ensures proper power supply and helps manage power consumption.
Environmental Monitoring Unit:An Environmental Monitoring Unit (EMU) is a feature commonly found in outdoor telecom cabinets. It is designed to monitor and report environmental conditions inside the cabinet to ensure the optimal functioning of the telecom equipment.
2. Customized IP55 outdoor telecom cabinet, with air conditioner, Rectifier system, ATS(Automatic Transfer Switch ), battery, PDU, etc.
(1) It’s a galvanized steel cabinet with thermal insulation, surface treat with outdoor anti-corrosion powder coating. For cabinet, we can customize different size, material including galvanized steel/ stainless steel or aluminum
(2) This cabinet equip with a embedded door with inner hinge ,door stopper ,electronic lock and three-point anti-theft lock, and an air conditioner for cooling.
(3) The battery shelf is for house 2* 100AH lithium batteries.
(4) These four stand column are 19 inch standard rack with L-shape tray and cable manager, this rack usually used for installing client’s telecom equipment, power system, lithium battery and so on, at the bottom it’s the grounding copper bar with earth wire , and some cable inlets.
(5) We also can equip an environmental monitoring unit,this system support SNMP and RS485 communication and it can work together with various sensors to monitor the cabinet inside environment
(6) AC power distribution unit. Our power distribution unit spec can be customized based on client’s requirement
(7) Rectifier system:48VDC rectifier with 3 parts: power distribution unit ,rectifier module and monitoring module. our power distribution unit spec can be customized ;our rectifier module have 3 models: 30A/50A/75A,the quantity depends on customer’s capacity ; monitoring module support SNMP/RS485 communication and battery management etc.

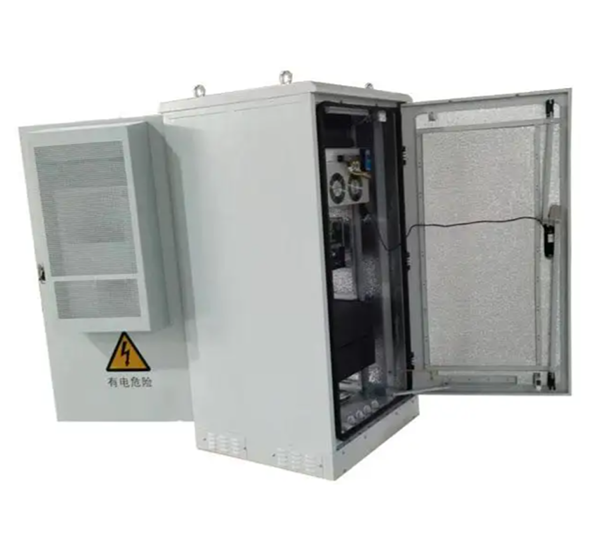

28U   Integrated Outdoor Power Cabinet with UPS.

 28U IP55 Battery Cabinet Accessories List
 No.  Item Quantity    Unit  Specification
1  Outdoor Telecom Cabinet  1 Set (1) External Dimension: W*D*H 700*700*1750mm
(2) One compartment: 19” rack, 28U
(3)With one front door, and three point lock for outdoor cabinet (support padlock)
(4) Material: galvanized steel, single wall with insulation
2   Air Conditioner  1 Set  Cooling capacity: 1500W, Power Supply: AC220V, 50Hz
3   Auxiliary Direct Ventilation Fans  2 PC  AC220V,install on the top of the cabinet
4   DC Power system 1  Set  Model: ET48300-5U 8kW(6*3000W rectifier module) With Controller
5  Environment Monitoring Unit 1  Set  1U, AC220V, support SNMP communication
6  Water Sensor 1  PC
7  Package 1  Set  Wooden Case
8  Door Sensor 1  PC
9  Temperature and Humidity Sensor 1  PC

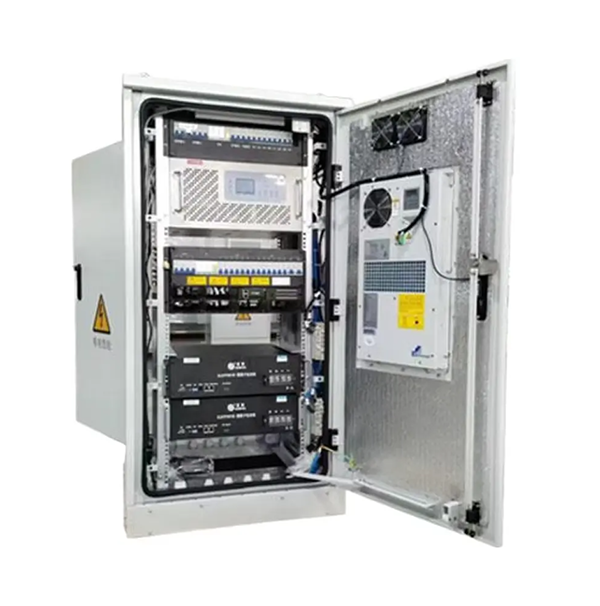

28U   Integrated Outdoor Power Cabinet with UPS.

 DC Power System Parameter
Category ET48300-5U
System Dimension(mm) 482.0(W)*350.0(D)*5U(H)
Weight ≤15kg(without rectifier module)
Cooling mode Natural cooling
Installation mode Installed on 19-inch rack or inside the cabinet
IP Grade IP20
AC Distribution Input Voltage 380Vac,three phase
Input capacity 1*63A/4P
Input frequency 45~65Hz, rated 50/60Hz
AC SPD 20kA/40kA, 8/20μs
DC Distribution Output voltage -43~-58VDC,rated value:-53.5VDC
Maximum capacity 18kW(6*3000W rectifier module)
Battery connection 2*125A/1P
Load breakers LLVD:63A/1P×3+32A/1P×3+16A/1P×2 BLVD:32A/1P×2+16A/1P×3
DC SPD 10kA, 8/20μs
Rectifier module Efficiency ≥96%@340Vdc/ 53.5VDC rated load
Rated power 3000W(85~300Vdc )
Working temperature -40℃~+75℃(fully output below 50℃)
Dimension 105.5mm(W)×286mm(D)×41.5mm(1U/H)
Cooling mode Forced cooling with fan
Controller Signal input 4 AI(3 Battery temp., 1 ambient temp) ,6 DI(SPD, 6 common DI)
Alarm output 4 dry contact
Communication port LAN/RS232/RS485 interface,LAN-SNMP,TCP/IP
Display mode LCD
Environment Operating temperature -40℃~+65℃
Storage temperature -40℃~+70℃
Operating humidity 0%~95%(non-condensing)
Altitude 0~3000m(If the altitude is within the range of 2000m to 3000m, the maximum operating temperature decreases by 1℃ as the altitude increases by 200m.)

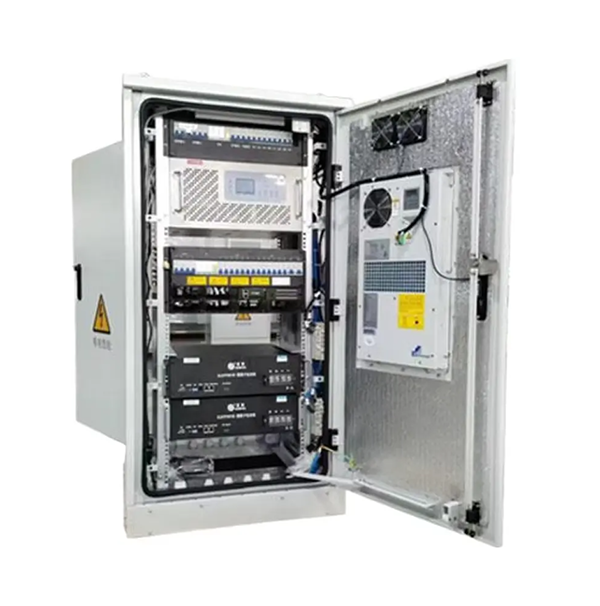

28U   Integrated Outdoor Power Cabinet with UPS.

 Outdoor telecom Cabinet Protection Level

IP54/IP55/IP65
IP55= Enclosures' Characteristics:
Complete protection from dust, oil, and other non-corrosive material
Complete protection from contacting with enclosed equipment
Protection from water, up to water projected by a nozzle against enclosure from any direction
Available in wall-mounted, free standing, trough, and telegraph pole mounting
Silk-screening logo, anodizing, or engraving services are available

IP65= Enclosures' Characteristics:
Complete protection from dust, oil, and other non-corrosive material
Complete protection from contacting with enclosed equipment
Protection from water, up to water projected by a nozzle against enclosure from any direction
Available in wall-mounted, free standing, trough, and telegraph pole mounting
Silk-screening logo, anodizing, or engraving services are available
Custom with cutouts,insulation, hinges, latches or locks
