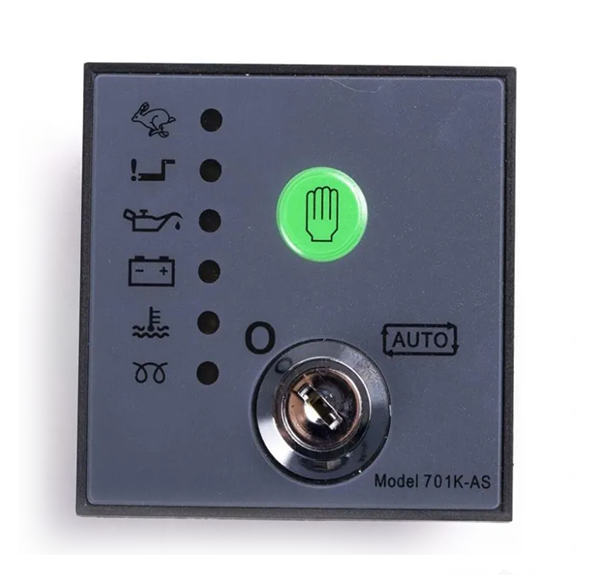

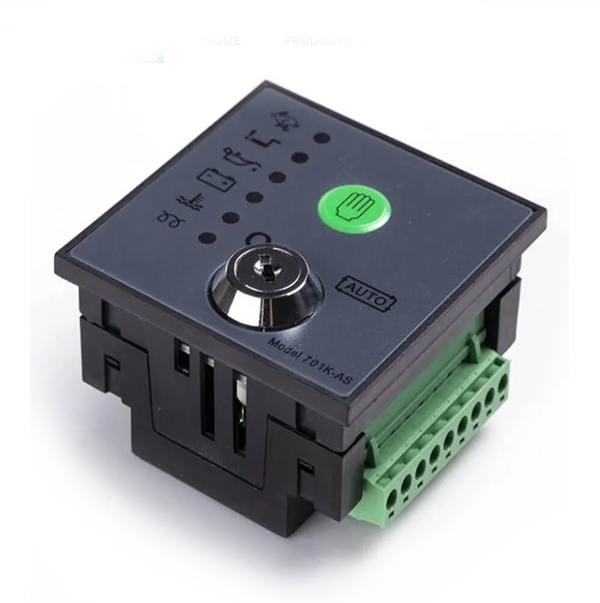

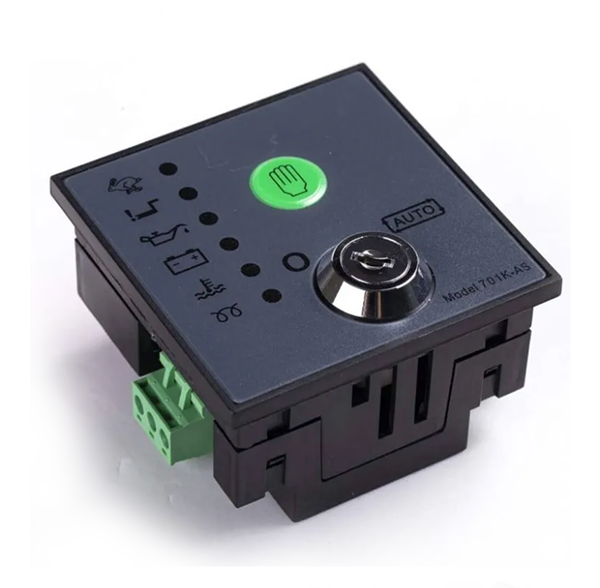

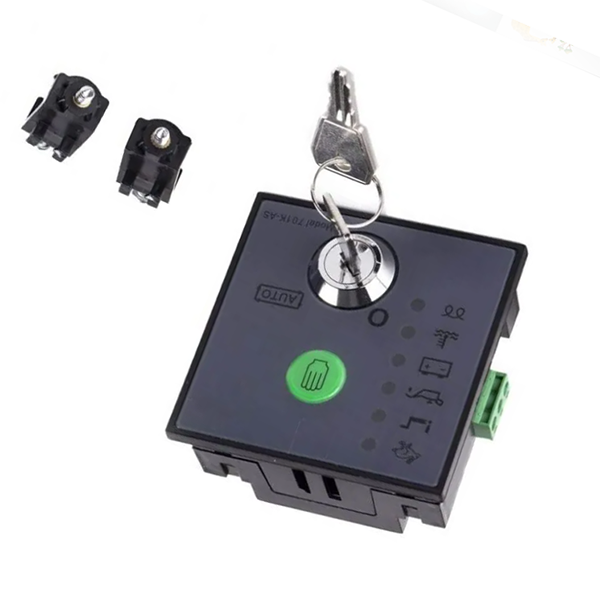

DSE701AS Auto Start Generator Controller For Generator Genset

SKU : DSE 701AS

Price

90.00 USD


95.00 USD

 (-5%)
Quantity to buy
Total 90.00 USD

Do not have enough stock

Out of stock

DSE 701AS Auto Start Generator Controller For Generator Genset

Description :

  • DC Supply: 8 to 35 V Continuous.
  • Cranking Dropouts: Able to survive voltage dips during cranking. This is achieved without the need for internal batteries.
  • Alternator Input Range: 15 - 305 V AC RMS (+20%)
  • Alternator Input Frequency: 50 - 60 Hz at rated engine speed. (Minimum 75V AC)
  • Overspeed: nominal frequency +14% (+24% Overshoot)
  • Start Output: Solid State 1.2A negative grounding terminal
  • Run Output: Solid State 1.2A negative grounding terminal
  • Pre-heat Output: Solid State1.2A negative grounding terminal
  • Dimensions: 72mm X 72mm X 38mm (2.83” x 2.83” x 2.5”) (Excluding Keyswitch) Cut-out 68mm x 68mm (2.68” x 2.68”)
  • Operating Temperature Range: -30 to +70°C

Installation:

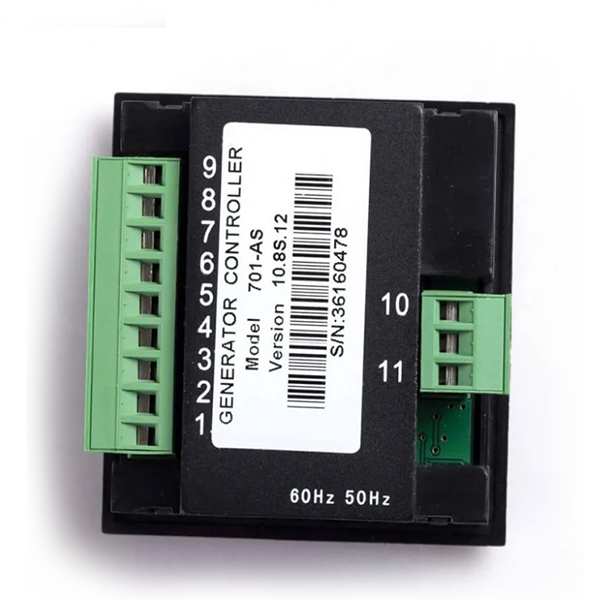

  • Front panel mounting via suitable cutout. Retaining clips supplied. Cable connections via screw clamp type terminals

Calibration:

  • Speed trip setting switch accessible from rear of module.

หมายเหตุ : สินค้ารายการนี้ มีศูนย์ บริการในประเทศ,มีอะไหล่เครื่องราคาส่งพร้อมช่างผู้ชำนาญ มีบริการติดตั้ง สอนการใช้งานฟรี และให้คำแนะนำกรณีมีช่างติดตั้งเอง จัดส่งถึงมือลูกค้าก่อนชำระเงิน ค่าจัดส่งค่าใช้จ่ายอัตตราของผู้ให้บริการรายต่างๆ ตามบิล สำหรับร้านค้าและช่างมีราคา พิเศษ ร้านค้าหรือช่างสามารถสมัครสมาชิกสะสมแต้ม เพื่อแลกของรางวัลได้ที่หน้าเวปไซด์ มีของรางวัลหลายรายการ ( สินค้านี้ซื้อ 1เครื่อง ขึ้นไป ส่งฟรี ) รับตัวแทนจำหน่าย ฟรีข้อมูลสินค้า รับสอนประกอบและตรวจซ่อมฟรี / ไม่มีค่าใช้จ่าย / มีอะไหล่และเครื่องมือในราคาช่าง / มีบริการปรับปรุง เครื่องจักรเพื่อให้มีประสิทธิภาพในการประหยัดพลังงาน ให้ระบบทำงานเพื่อเพิ่มประสิทธิภาพลดการซ่อมยึดอายุการใช้งาน สินค้านี้ขายยกลังในราคาส่ง ราคาที่เสนอต่อ ชิ้น สินค้านี้ต้องตรวจสอบล่าสุดก่อนส่งถึงมือผู้ใช้งานตามมาตรฐานของผู้ผลิตเพื่อลดปัญหาการเสื่อมคุณภาพจากการจัดเก็บที่ไม่ถูกต้องเป็นเวลานาน

Order tracking

DSE701AS Auto Start Generator Controller

DSE701AS Auto Start Generator Controller

            Brochure & Picture Download :
