SS-H100GTi-F
SKU : SS-H100GTi-F
Price |
0.00 USD |
Quantity to buy | |
Total | 0.00 USD |
Do not have enough stock
Out of stock
Marine Condensing Coils
Trombone / Type : Catalogs : Download
Models : SS-H100GTi-F / for R410A / Capacity Ton : / ( Type : Round &Trombone ) Water flow : 2GPM./0.45 m3/h / Condenser :1000Btu/h 2.9kW.

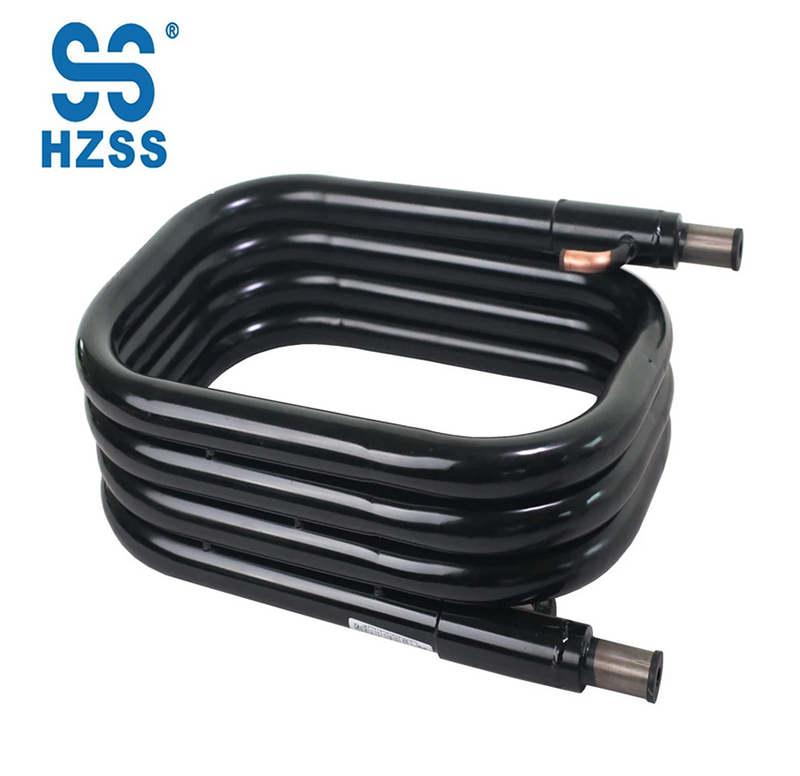

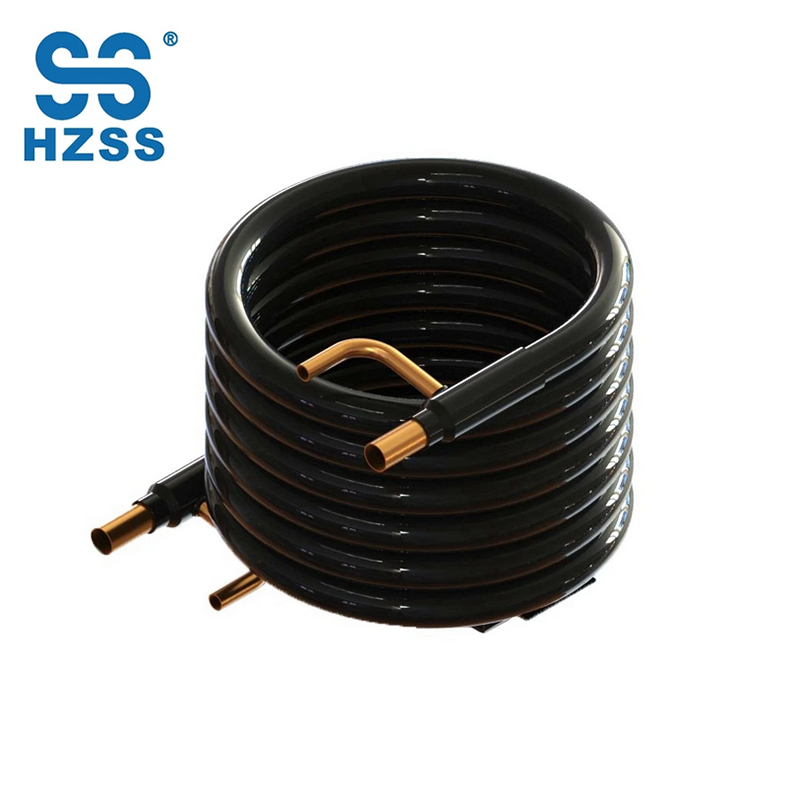

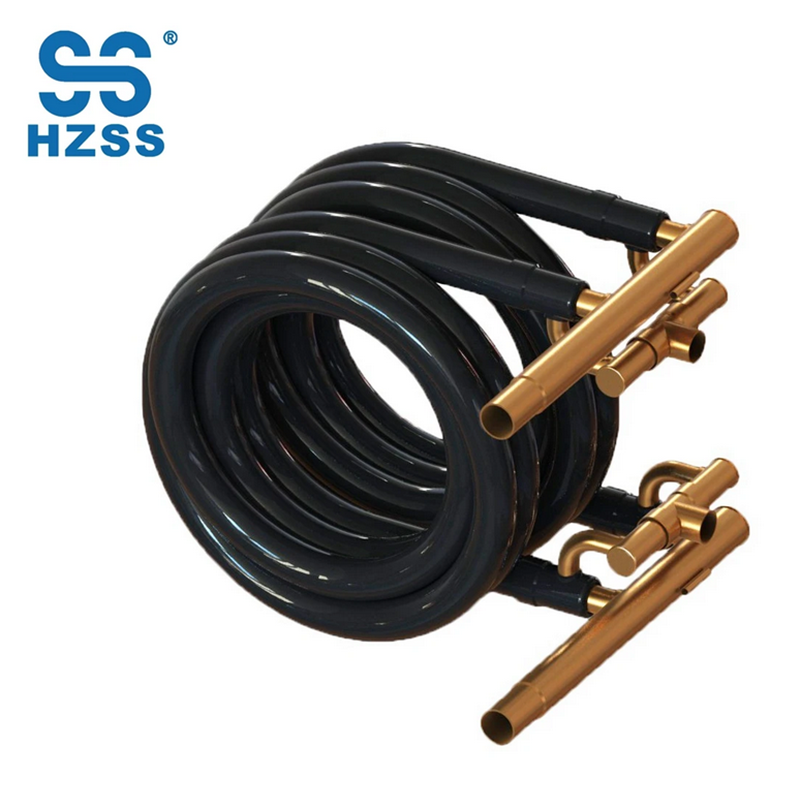

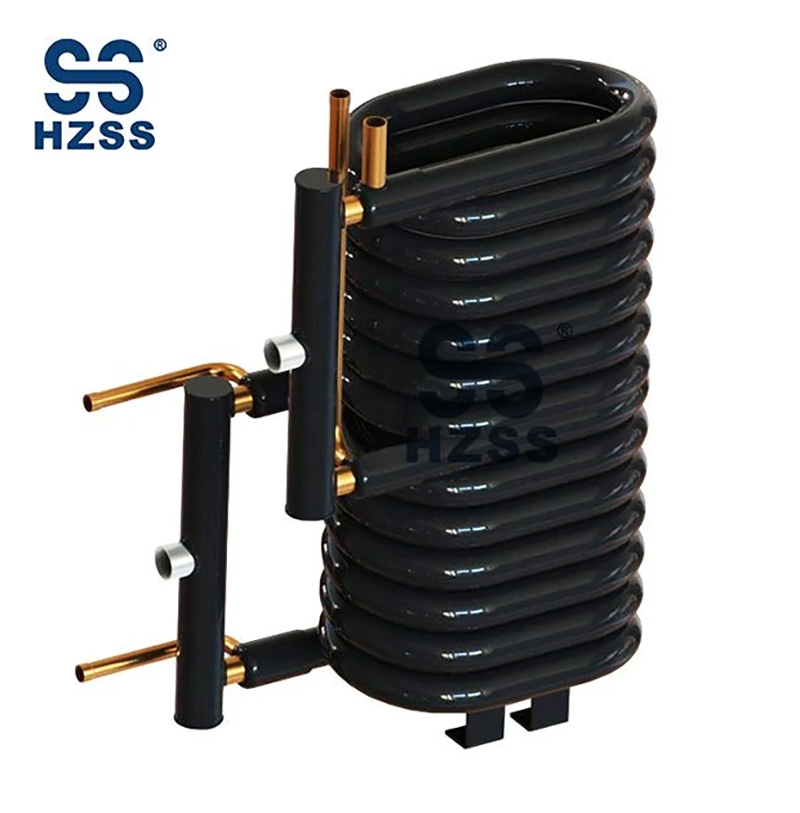

HZSS Marine condensing coils are made of titanium with enhanced groove line technolgy to achieve high efficient and high corrosion resisantce.
Product Feature
1.Water in the inner coil and gas in between the
inner and outter coil to enhance turbulence intensity
and heat transfer coefficient.
2.Spirally corrugated tubes increase heat transfer
area to creat higher efficiency.
3.Reliable with higher pressure stand and less
welding points.
4.Anti-frezzing and self cleaning.
5.Titanium inner tube with high corrosion resistance.
6.Enhanced groove line inner tube surface
increase heat transfer efficient by 30%.
Note:SS-HXXXGTi, H=Enhanced, G=Carbon Steel, Ti=Titanium
Test condition:As Condenser, water inlet temp 29.4℃, water outlet temp 35℃, condensing Temp 40℃.
As Condenser, water inlet temp 85°F, water outlet temp 95°F, condensing Temp 104°F.
MOQ. 1Ea.
More Detail : Click
