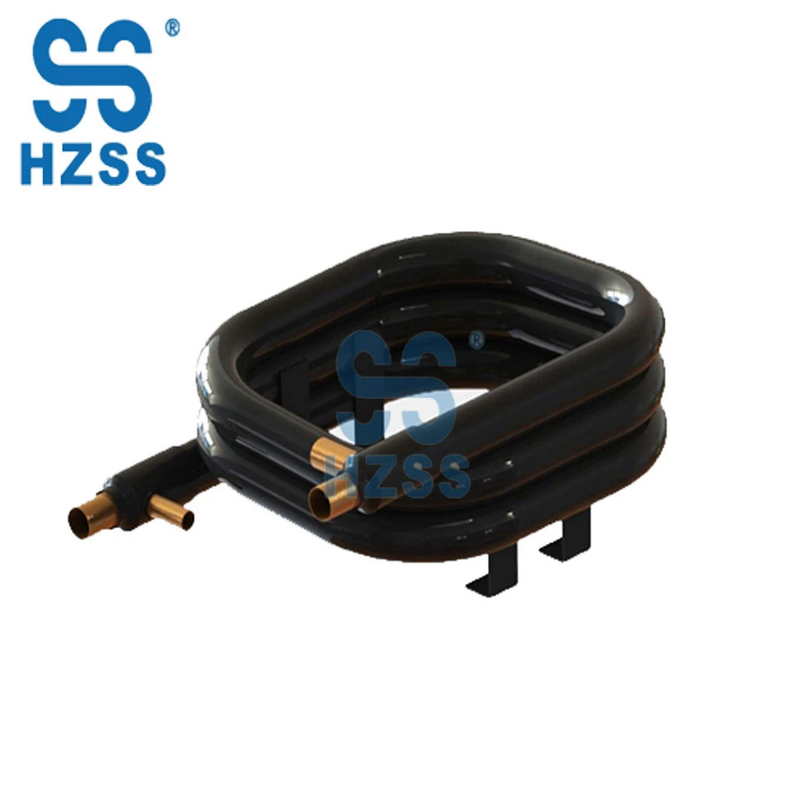

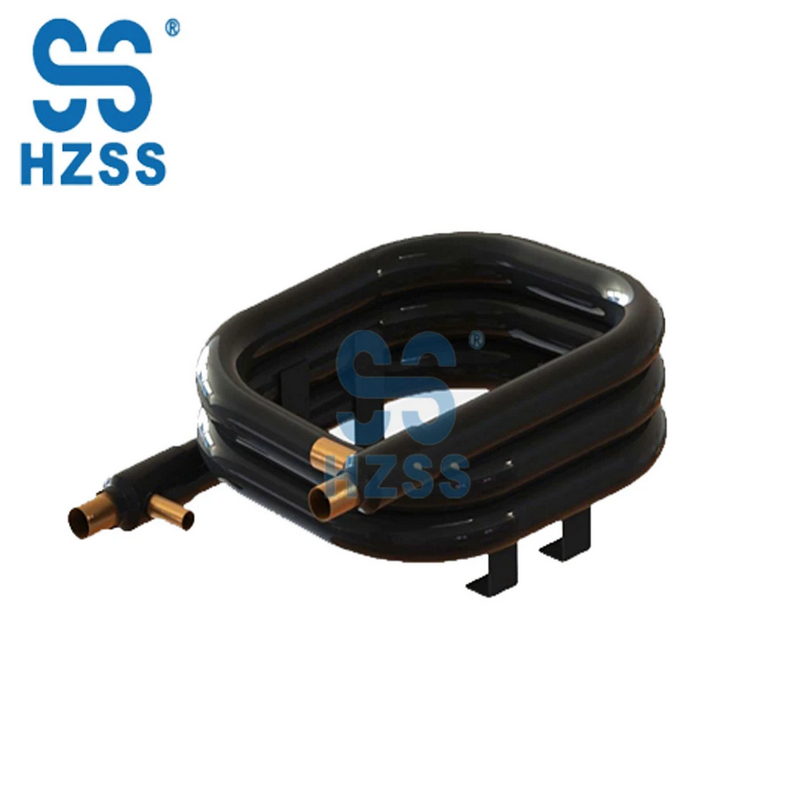

SS-0050GB-F

SKU : SS-0050GB-F

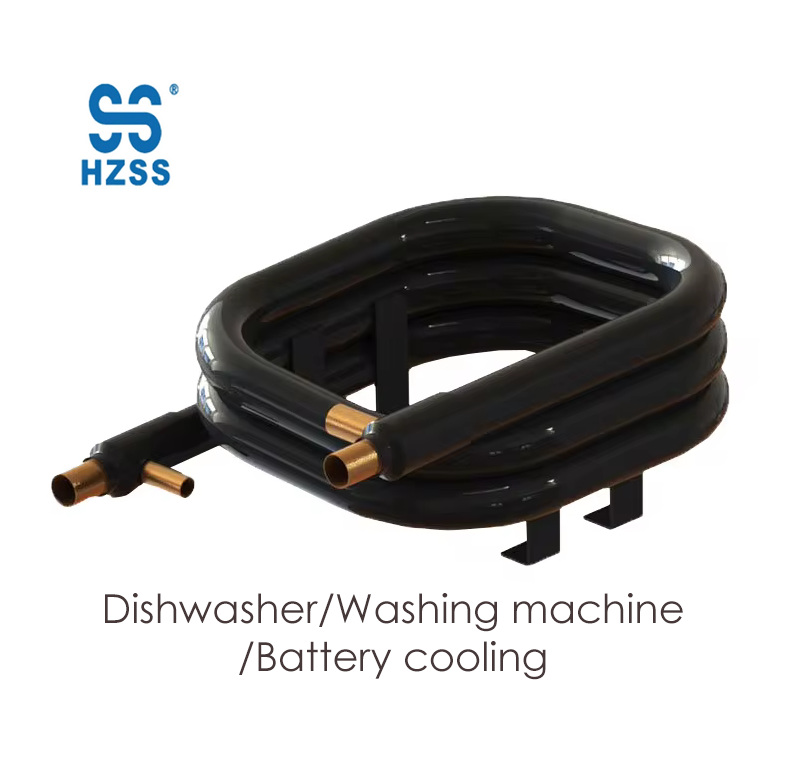

Dishwasher/Washing machine /Battery cooling

Trombone / Type for Dishwasher : Catalogs : Download

Models : SS-0050GB-F / for R134a / Capacity Ton : / ( Type : Round &Trombone ) Water flow : 6.60GPM./1.5 m3/h / Condenser :3800Btu/h 1.1kW.

HZSS’s coils are also applicable to dishwashing machine, provide hot water for washing machine, better temperature environment for battery system

in order to extend battery life duration.

Product Feature

1.Water flow in the inner tube and refrigerant flow

in gap between the inner and outter coil, to

enhance turbulence intensity and heat transfer

coefficient.

2.Spirally corrugated inner tube increase heat

transfer surface to creat higher efficiency.

3.Reliable with higher pressure stand and less

welding points.

4.Anti-freezing and self-cleaning.

Note:Test Condition：Water inlet temp 25℃, water outlet temp 55℃,circulation heating.

Water inlet temp 45.9℉, water outlet temp 62.6℉,circulation heating.

MOQ. 1Ea.
