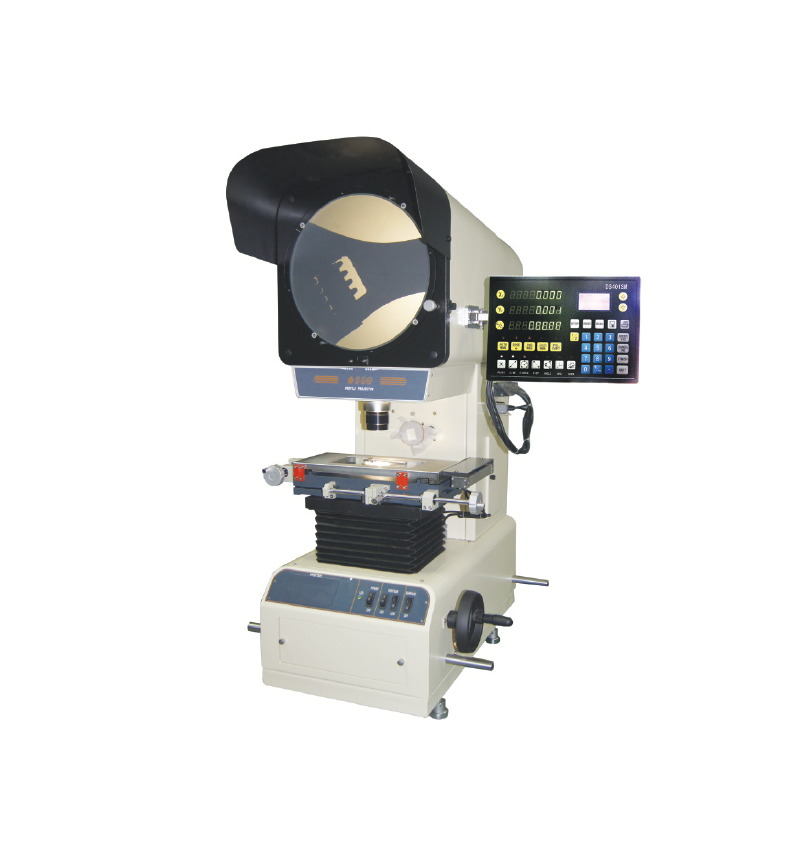

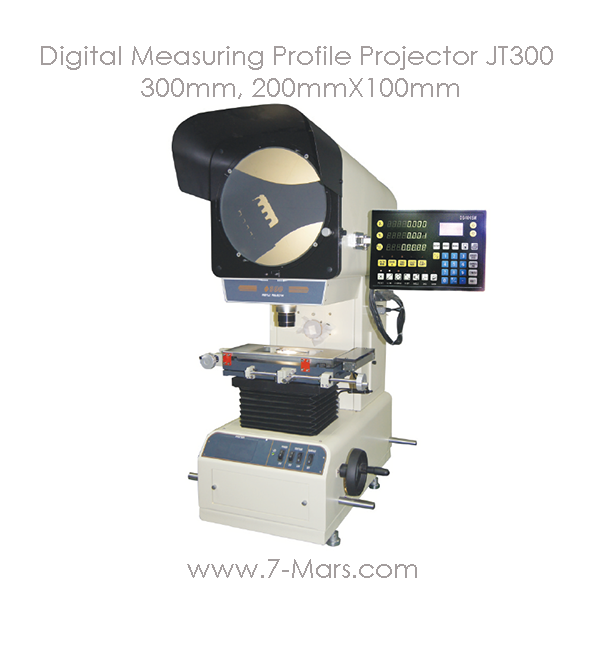

Digital Measuring Profile Projector 300mm, 200mmX100mm
- The up and down system adopts linear guide way and nuts without interference. It's more comfortable and stable.
- The reflecting mirror adopts patent coating techniques with good anti-dust effects.
- The transmission illumination has high and low levels, which can meet different measuring requirements.
- Light source adopts Philip tungsten halogen lamp with high brightness and long using life to satisfy long time using demands.
- Axial flow fan with strong dissipations heat function dissipates heat in double directions
- The optical system has excellent quality, the objective forms clear image and the magnification is accurate.
- The working distance on object is large, which can meet measuring requirements of different parts.
- The RS232 port can realize the output and communication of data with computer.
- It is erect image with external DRO which is according to the operator's habits.
Technical parameters :
- Screen Diameter: Φ300mm
- Rotating range: 0°~360°
- Resolution of the rotary angle: 1
- Accuracy of the rotary angle: 6
- Objective Magnification Object Visual Field (mm) Object Working Distance (mm) 10X φ30 75.201 20X φ15 69.599 50X φ6 44.4 100X φ3 26.243 DS600 or DS401 Box
- Errorof magnifying power ≤ 0.08%
- Worktable area: 400×225mm
- Travel of workstage: X=200mm Y=100mm Z=90mm
- Display equivalent of X Y: 1μm
- Accuracy of instrument: (3+L/75) um, L unit: Mm
- Load capability of worktable: 5kg
- Lighting source Transmission lighting: 12V 100W Halogen tungsten lamp Reflecting lighting: 24V 150W Halogen tungsten lamp
- Overall sizes of the instrument (mm): 694×380×1065
- Machine Weight: 135 kg
- Ambient environment of the instrument service
- Working temperature: 20±5'C
- Relative humidity: Not more than 60%
