DALI-15-100-700-U1P2

SKU : DALI-15-100-700-U1P2

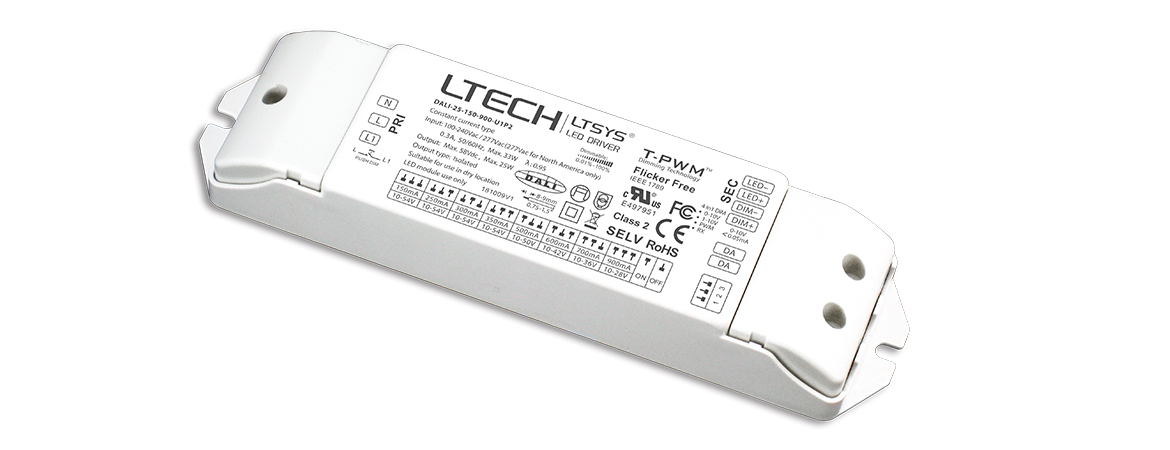

15W 100-700mA CC DALI Driver DALI-15-100-700-U1P2

LED Intelligent Driver :

1. Dimming interface: DALI, 0-10V(1-10V/PWM/RX), Push Dim.
2. T-PWM digital dimming present a perfect visual experience.
3. Dimming range: 0-100%, LED start at 0.01% possible.
4. 0-100% flicker free, High frequency exemption level.
5. Innovative thermal management technology, intelligent power life protection
6. DALI dimming curve can be either linear or logarithmic.
7. Multi-current & wide voltage, suitable for different power LED.
8. Non-Load output voltage OV to prevent damages to LED caused by poor contact.
9. Short circuit / Over-heat/Over load / Non-load protection, recover automatically.
10. DALI bus standard: IEC 62386-101, 102, 207.
11. Suitable for internal lights application for I/II/II.
12. Up to 50000-hour life time
13. 5years warranty Rubycon capacitorl.
