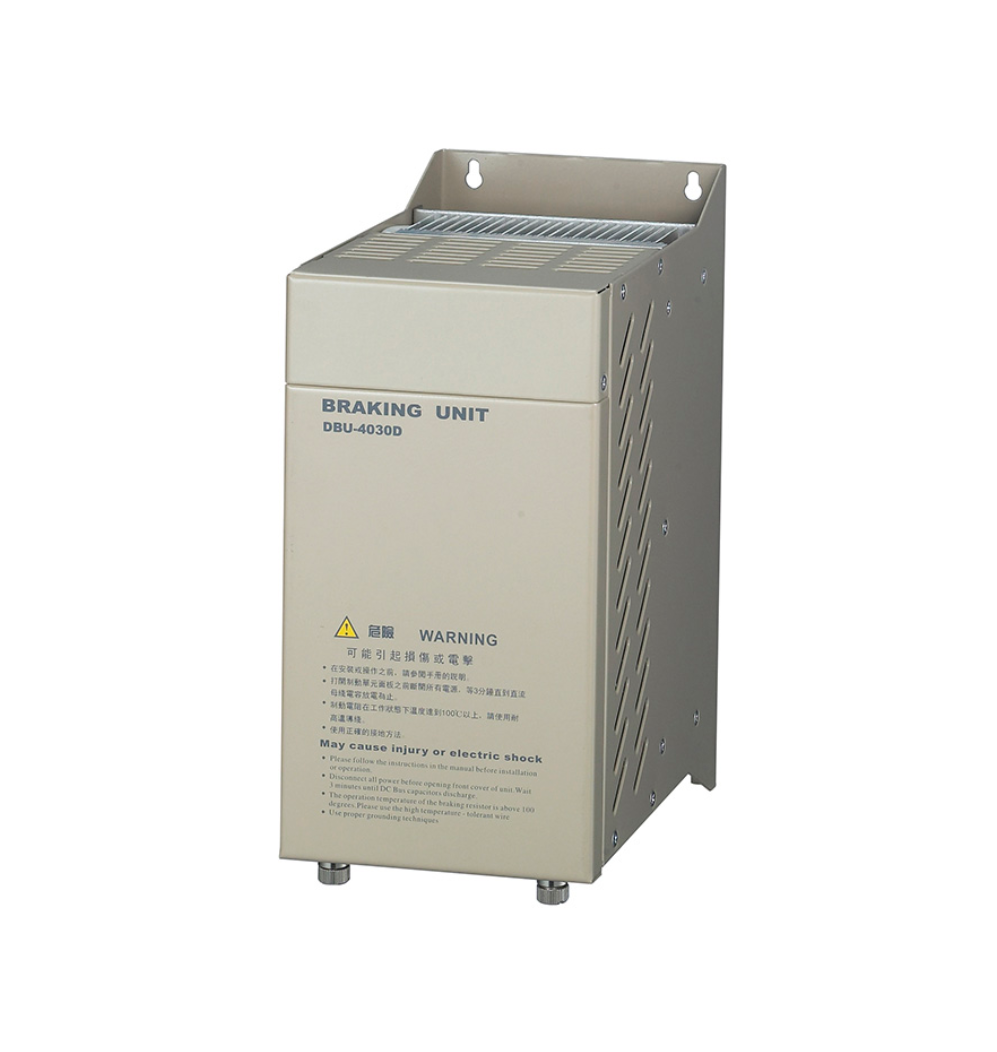

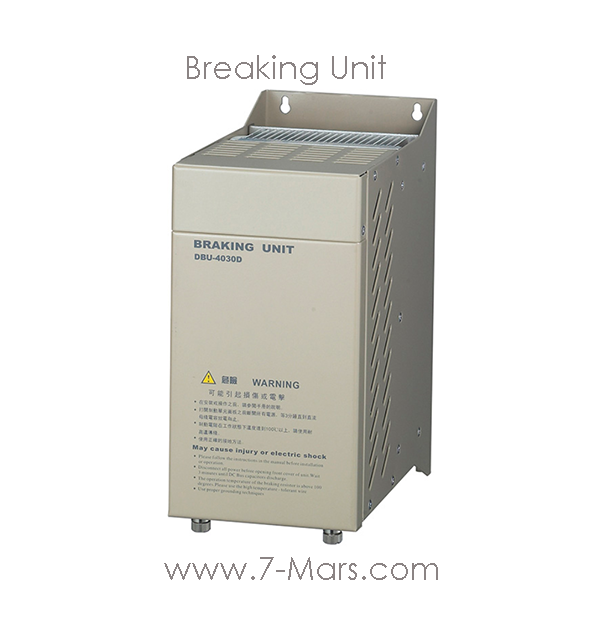

Breaking Unit

The function of the braking unit is to divert into a braking resistor the regenerative energy produced in the process of decelerating the motor, converting that energy into heat. Regenerative energy flows from the motor into the inverter DC Bus, manifested as increased bus voltage. The advantage gained using the braking unit is improved braking performance and shorter deceleration time of the load.

Order tracking

Main  Feature :


  • The braking unit in the DBU series is applied to consume in the braking resistor the regenerative energy produced in the deceleration process of the motor in the form of heat energy .In this way ,the braking performance of the frequency inverter is improved and the braking time of the frequency inverter  is reduced .
  • ชุดเบรกในซีรีส์ DBU ถูกนำไปใช้กับตัวต้านทานเบรกซึ่งเป็นพลังงานที่เกิดขึ้นใหม่ซึ่งผลิตขึ้นในกระบวนการลดความเร็วของมอเตอร์ในรูปของพลังงานความร้อน ด้วยวิธีนี้ ประสิทธิภาพการเบรกของอินเวอร์เตอร์ความถี่จะดีขึ้นและเวลาเบรกจะดีขึ้น ของอินเวอร์เตอร์ความถี่จะลดลง

คุณสมบัติ

Feature

  1. ความปลอดภัย: ฟังก์ชั่นการสะดุดของอุปกรณ์ป้องกันการลัดวงจรของ IGBT และการพังทลายสามารถหลีกเลี่ยงอันตรายที่ซ่อนเร้นจากไฟที่เกิดจากการสลายตัวของ IGBT และการทำงานของตัวต้านทานเกินพิกัดเป็นเวลานานได้อย่างมีประสิทธิภาพ
  2. ความเข้ากันได้กว้าง: การออกแบบพิเศษของชุดเบรกนี้ช่วยให้สามารถใช้ความต้านทานทั่วไปมากกว่าความต้านทานที่ไม่เหนี่ยวนำ สามารถปรับให้เหมาะกับแรงดันคลื่นชอปเปอร์ 600V-760V DC ยิ่งไปกว่านั้น อุปกรณ์นี้ใช้ในอินเวอร์เตอร์ความถี่แรงดันปานกลางและแรงดันต่ำประเภทต่างๆ (ผลิตภัณฑ์ออกแบบพิเศษถึง 1200V)
  3. เศรษฐกิจ: สิ่งอำนวยความสะดวกนี้โดดเด่นด้วยอัตราส่วนต้นทุนประสิทธิภาพสูง ด้วยราคาที่ค่อนข้างประหยัด คุณภาพเทียบเท่ากับสินค้านำเข้าประเภทเดียวกัน ดังนั้นจึงถือเป็นผลิตภัณฑ์ส่วนประกอบที่ประหยัดและใช้งานได้จริง
  4. สำหรับชุดเบรกของอินเวอร์เตอร์ชุดเบรกนี้ใช้การออกแบบแบบหนังสือซึ่งสามารถติดตั้งในการเชื่อมต่อแบบขนานโดยไม่มีการกวาดล้าง ขอแนะนำให้เชื่อมต่อแบบขนานกับ 3 ชุด

  1. Safety: The tripping function of the equipment against IGBT short circuit and breakdown can effectively avoid the hidden danger of fire caused by the breakdown of IGBT and the overload operation of the resistor in a long time.
  2. Wide Compatibility :The special design of this braking unit allows for the usage of common resistance rather than the non-inductive resistance .It can be adjusted to adapt to 600V-760V DC chopper wave voltage . Further more, this device is used in various type of medium and low voltage frequency inverter (Specially designed product reaches up to 1200V)
  3. Economy: This facility is characterized by high performance cost ratio . With relatively economical price .its quality is same as that of similar imported products. It is therefore considered as the most economical and practical component product for the braking unit of the inverter .
  4. A book-type design is employed in this braking unit which can be installed in a parallel connection with zero clearance .It is recommended that it can be connected in parallel  with 3 units

                  Outline& Mounting Dimension : ( Unit:mm )

            Recommended brake assembly matching specification  :

             Picture & Data sheet Download :
