KD PVS-100-400A

SKU : KD PVS-100-400A

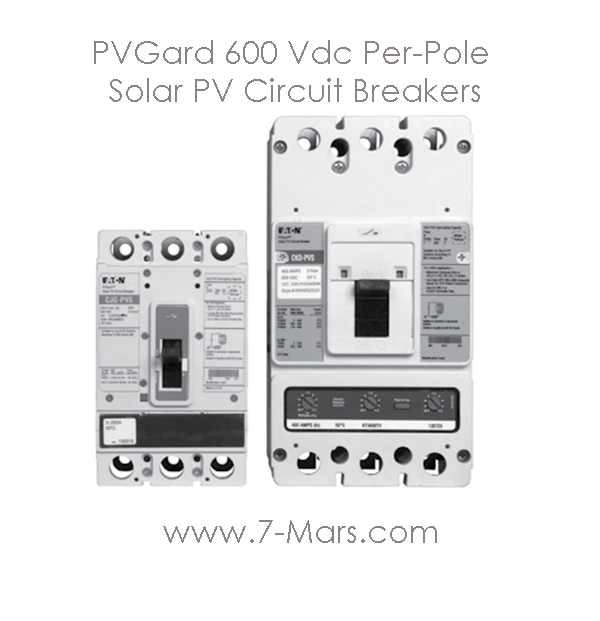

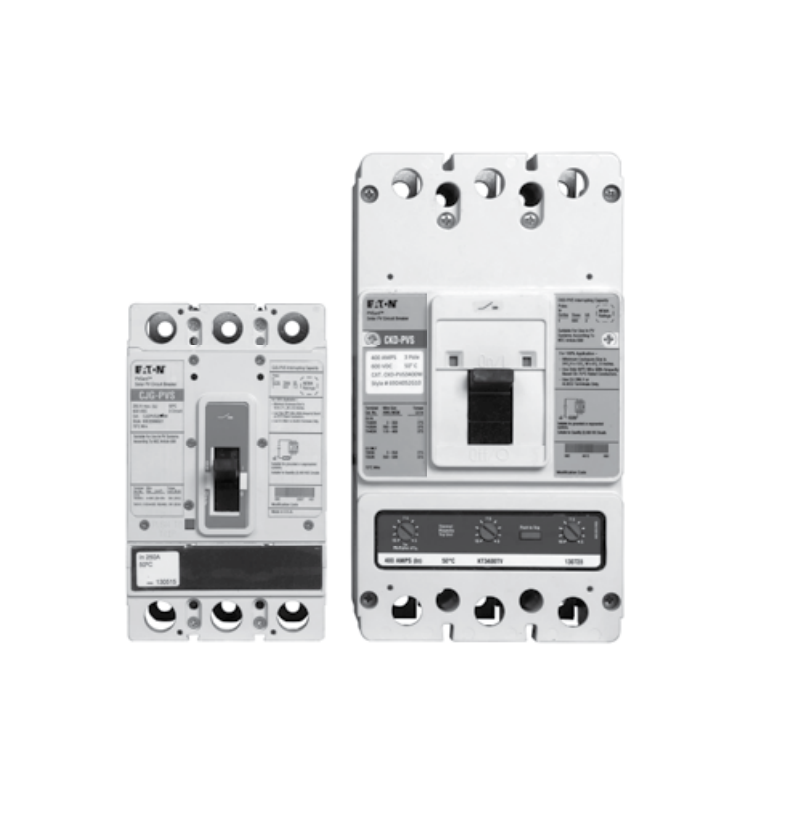

PVGard 600 solar photovoltaic circuit breakers

CODE : TD01211004E

 Product description :

• Thermal-magnetic circuit breakers
• Designed to meet UL® 489B for solar photovoltaic circuit protection
• Both 100% and 80% rated breakers available
• 50°C calibrated
• Can be applied in grounded, ungrounded, or bipolar systems
• Ability to open on signal from DC arc or ground fault detector
• Two PVGard lineups: • 600 Vdc per-pole breaker and switch; each pole rated 600 Vdc
• 1000 Vdc poles-in-series breaker and switch; requires poles in series connection
• UL File EE350638, Category Control Number DIUR
