TD-36-450-1200-EFP1
SKU : TD-36-450-1200-EFP1
| Price |
45.00 USD 55.00 USD (-18%) |
| Quantity to buy | |
| Total | 45.00 USD |
Do not have enough stock
Out of stock

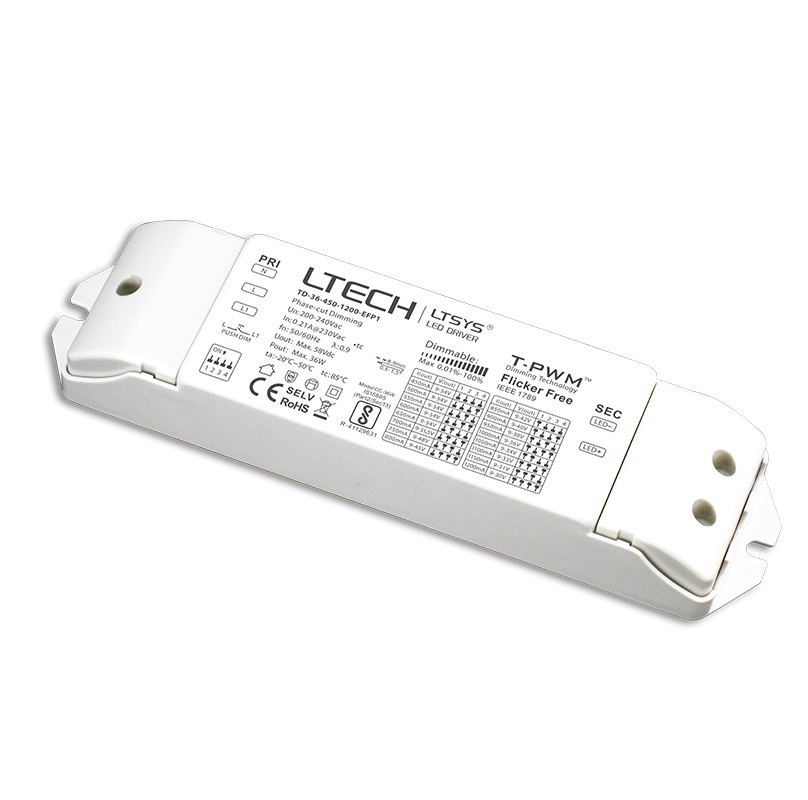

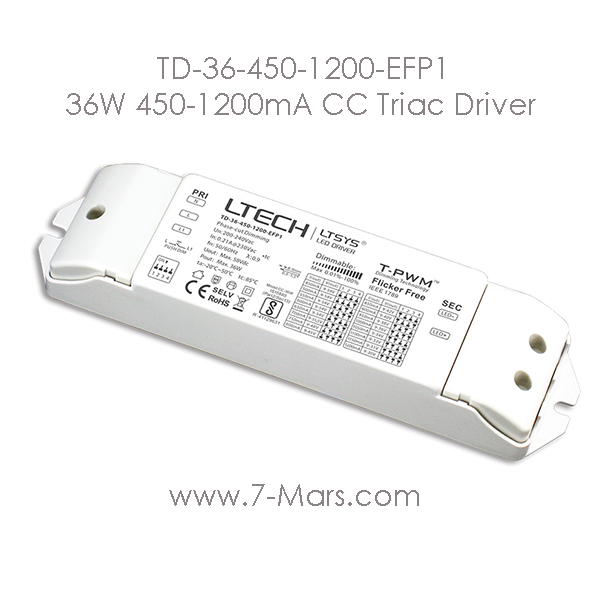

36W 450-1200mA CC Triac Driver TD-36-450-1200-EFP1
- Dimming interface:Triac/ELV, Push
- Input voltage:200-240Vac
- Power Factor:PF>0.9/230Vac (full load)
- Efficiency(typ.):80%
- Fluctuation Level:Exemption assessment level.
- Output Voltage:9-54Vdc
- Output Current:450-1200mA
- Output Power:4.05W~36W
- Dimming range:0~100%, dimming depth: Max. 0.01%
- Certification:CE,ROHS,BIS
- Warranty:3 years
