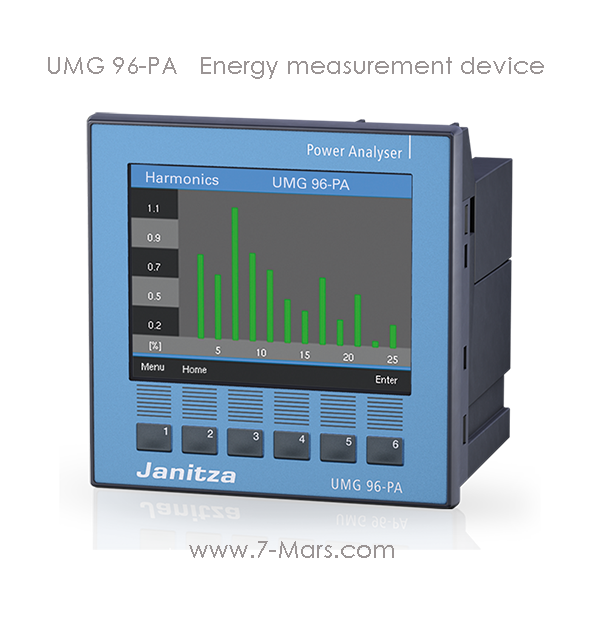

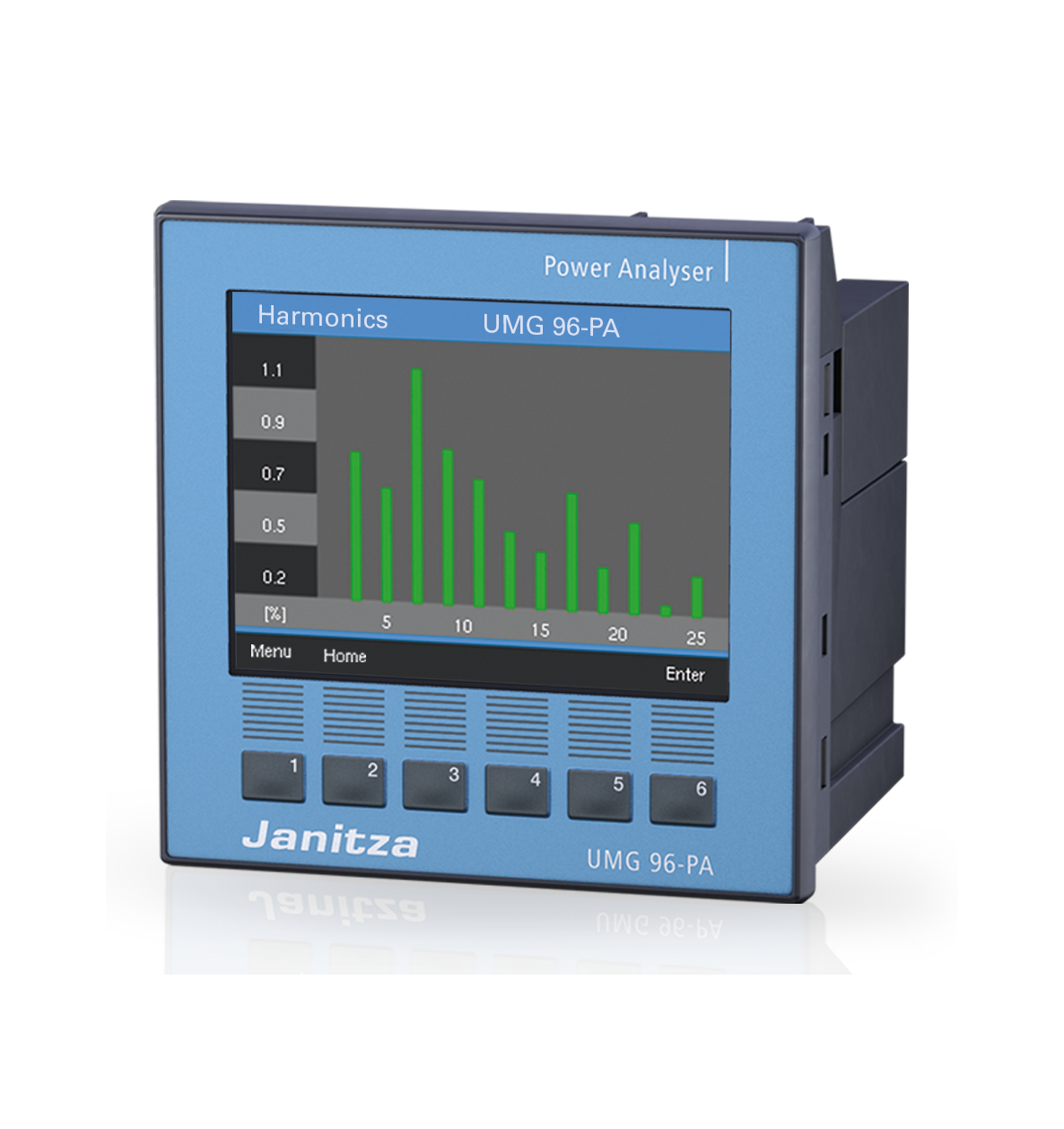

UMG 96PA Energy measurement device

SKU : UMG 96PA

Price

750.00 USD


850.00 USD

 (-12%)
Quantity to buy
Total 750.00 USD

Do not have enough stock

Out of stock

Energy measurement device

Feature :

  • การจัดการพลังงาน | กลาง | การตรวจสอบคุณภาพไฟฟ้า | การตรวจสอบ RCM อุปกรณ์วัดพลังงาน UMG 96-PA รวมฟังก์ชันสี่อย่างไว้ในอุปกรณ์เดียว และสามารถขยายแบบแยกส่วนได้ด้วยอินพุตอนาล็อกสองอินพุต – เลือกเป็นอินพุตอะนาล็อก 0-20 mA (เช่น การวัด DC) หรือเป็นอินพุตการวัด RCM พร้อมการตรวจจับการแตกหักของสายเคเบิลและอุณหภูมิการวัดเพิ่มเติม
  • Energy management | MID | power quality monitoring | RCM monitoring The energy measurement device UMG 96-PA combines four functions in one device and can be modularly expanded by two analogue inputs selectively as 0-20 mA analogue inputs (e.g. DC measurement) or as RCM measuring inputs with detection of cable breaks and additional temperature measurement.


หมายเหตุ : สินค้ารายการนี้ มีศูนย์ บริการในประเทศ,มีอะไหล่ตู้อบราคาส่งพร้อมช่างผู้ชำนาญ มีบริการติดตั้ง สอนการใช้งานฟรี และให้คำแนะนำกรณีมีช่างติดตั้งเอง จัดส่งถึงมือลูกค้าก่อนชำระเงิน ค่าจัดส่งค่าใช้จ่ายอัตตราของผู้ให้บริการรายต่างๆ ตามบิล สำหรับร้านค้าและช่างมีราคา พิเศษ ร้านค้าหรือช่างสามารถสมัครสมาชิกสะสมแต้ม เพื่อแลกของรางวัลได้ที่หน้าเวปไซด์ มีของรางวัลหลายรายการ ( สินค้านี้ซื้อ 1เครื่อง ขึ้นไป ส่งฟรี ) รับตัวแทนจำหน่าย ฟรีข้อมูลสินค้า รับสอนประกอบและตรวจซ่อมฟรี / ไม่มีค่าใช้จ่าย / มีอะไหล่และเครื่องมือในราคาช่าง / มีบริการปรับปรุง อาคาร, เครื่องจักรเพื่อให้มีประสิทธิภาพในการประหยัดพลังงาน ให้ระบบทำงานเพื่อเพิ่มประสิทธิภาพลดการซ่อมยึดอายุการใช้งาน สินค้านี้ขายยกลังในราคาส่ง ราคาที่เสนอต่อ ชิ้น สินค้านี้ต้องตรวจสอบล่าสุดก่อนส่งถึงมือผู้ใช้งานตามมาตรฐานของผู้ผลิตเพื่อลดปัญหาการเสื่อมคุณภาพจากการจัดเก็บที่ไม่ถูกต้องเป็นเวลานาน

Order tracking

  At a glance - UMG 96-PA

Basis functions of the UMG 96-PA series

User-friendly & easy integration

Energy management

Safeguard power quality


  • Easy installation due to front panel size 96 x 96 mm
  • Color graphic display and intuitive user guidance
  • Overvoltage category 600 V CAT III
  • For use in TN and TT systems
  • Continuous energy monitoring
  • Identify savings potentials
  • Lower your energy costs
  • Fulfill all tax and regulatory requirements

  • Reliable, highly-available power supply
  • Avoid production downtimes
  • Maximize operating times & preventive maintenance
  • Avoid quality deficiencies in products
  • Detect harmonics current up to the 40th order

Interface




Interfaces

  • 3 digital inputs
  • 3 digital outputs
  • RS-485 interface


Residual current monitoring

  • Continuous monitoring of residual currents
  • Cable break detection
  • Supports fire and personnel protection
  • Higher system availability


Product Dimension :

            Picture & Data sheet Download :
