SFM200-2P-2-230V-50Hz.
SKU : SFM200-2P-2-230V-50Hz.
| Price |
43.00 USD 47.00 USD (-9%) |
| Quantity to buy | |
| Total | 43.00 USD |
Do not have enough stock
Out of stock

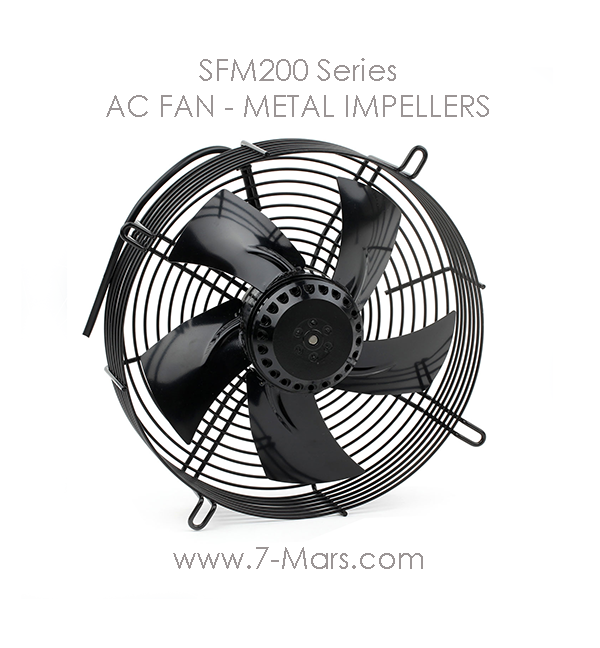

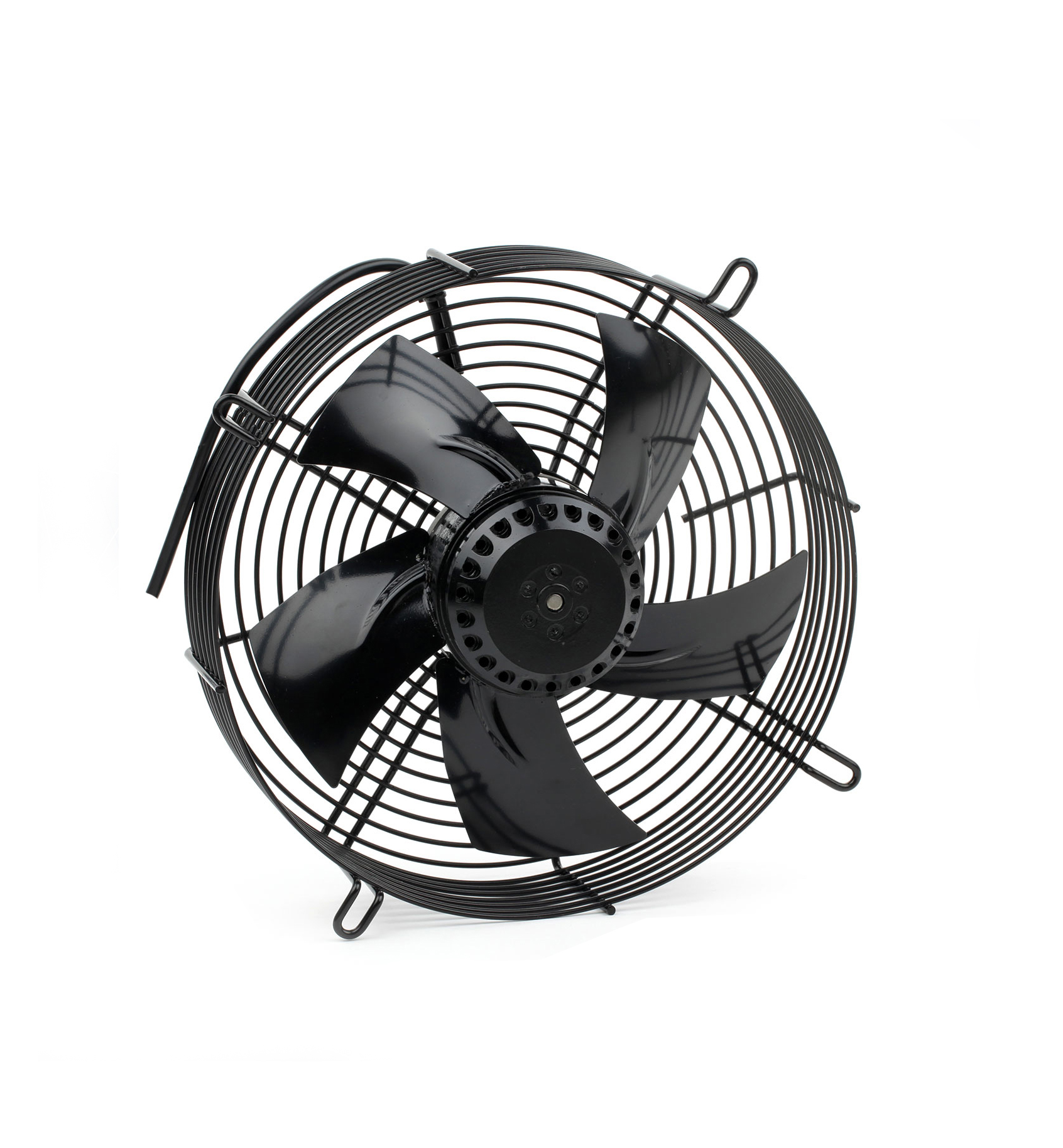

SFM-200 Series AC FAN - METAL IMPELLERS
Brief description
- Model NO.: SFM200
- Blade Material: Stainless Steel
- Electric Current Type: AC
- Certification: CE
- Bearing: Ball Bearing
- Usage: for Refrigerate, for Air Conditioner, for Manufacture
- Material: Aluminum Fan
- Type: Axial Fan
- Mounting: Wall Fan
- Warantee: One Year Guarantee Time
- Package: 2PC/CTN with Foam Inside, Then Pallet Package
- Weight(Kg): 1.7
- Specification: diameter 200mm
Order tracking
Information:
- Motor: Configuration of External rotor motors
- Net-cover: Steel wire with black paint,anti-corrosion and anti-oxidization treatment
- Impeller: metal armor plate die-casting,surfaceis finished by black paint and anti-corrosion, the impellers are welded tomotor rotor
- Operation Temperature/Humidity Range: -40ºC ~ +75ºC/0% ~ 95%
- Protection: Motor Internal with automatic recovery thermal protector
- Withstand Voltage: AC1800V, 1min at 0.5mA, 50/60Hz
- Insulting system: Design according to IEC61858 Grade F
- Protecting Grade: IP54
- Unit Weight: 1.7kgs
