HDR-100-15N

SKU : HDR-100-15N

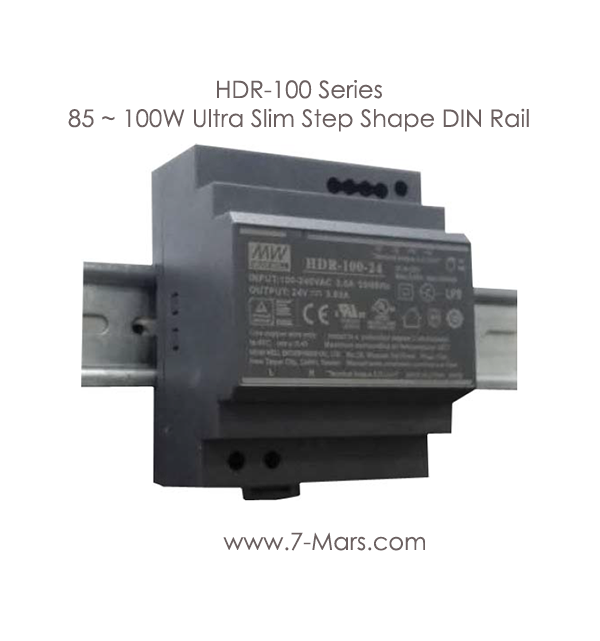

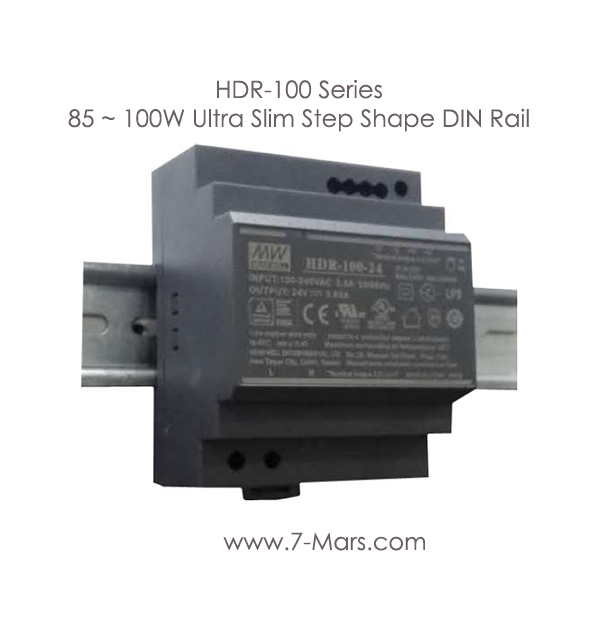

85 ~ 100W Ultra Slim Step Shape DIN Rail HDR-100 Series

Description :

HDR-100 is one economical ultra slim 100W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 70mm(4SU) in width, which allows space saving inside the

cabinets. The entire series adopts the full range AC input from 85VAC to 264VAC(277VAC operational) and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current. HDR-100 is designed with plastic housing that it can effectively prevent user from electric hazards. With working efficiency up to 90%, the entire series can operate at the ambient temperature between -30°C and 70°C under air convection. The complete protection functions and relevant certificates for home

automations and industrial control apparatus (IEC 62368-1, UL508, UL62368-1, EN 61558-2-16) make HDR-100 a very competitive power supply solution for household and industrial applications.

Features :

1. Ultra slim design with 70mm(4SU) width
2. Universal input 85~264VAC(277VAC operational)
3. No load power consumption<0.3W
4. Isolation class II
5. Pass LPS (Limited power source) for Blank type
6. DC output voltage adjustable
7. Protections : Short circuit / Overload / Over voltage
8. Cooling by free air convection (working temperature:-30-+70°C)
9. DIN rail TS-35/7.5 or 15 mountable
10. Over voltage category III
11. LED indicator for power on
12. 3 years warranty

Applications :

1. Household control system
2. Building automation
3. Industrial
4. control system
5. Factory automation
6. Electro-mechanical apparatus
