WDR-480-48

SKU : WDR-480-48

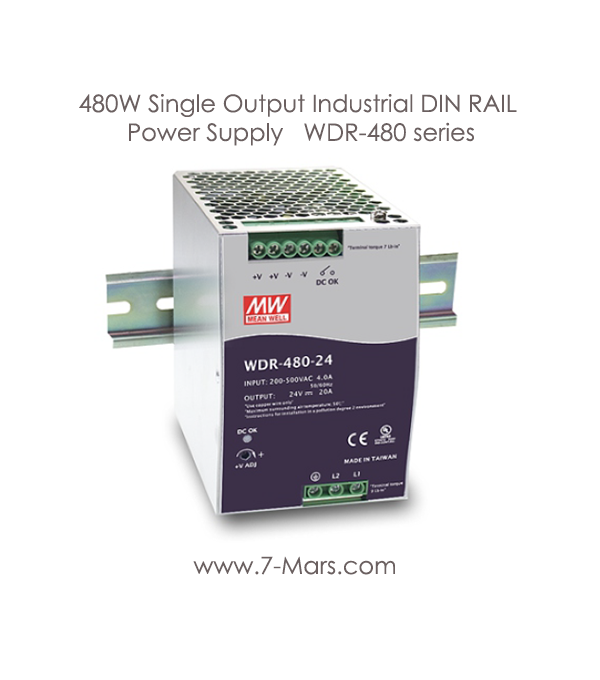

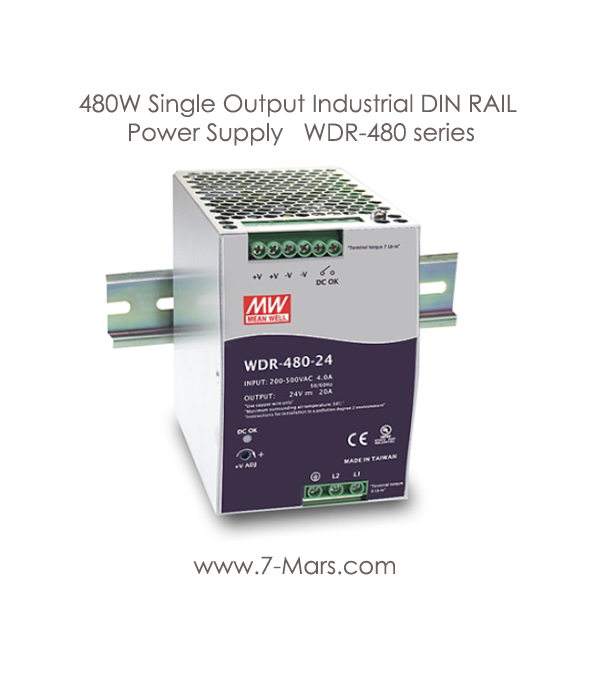

480W Single Output Industrial DIN RAIL Power Supply WDR-480 Series

Features :

1. Single and two phase wide input range 180-550VAC
2. Built-in active PFC circuit compliance to EN61000-3-2
3. High efficiency 93% and low power dissipation
4. Protections: Short circuit / Overload / Over voltage / Over tempe
5. Cooling by free air convection
6. Can be installed on DIN rail TS-35/7.5 or 15
7. UL 508(industrial control equipment)approved
8. EN61000-6-2(EN50082-2) industrial immunity level
9. Built-in DC OK relay contact
10. 100% full load burn-in test
11. 3 years warranty
