LDD-1400HW-DA

SKU : LDD-1400HW-DA

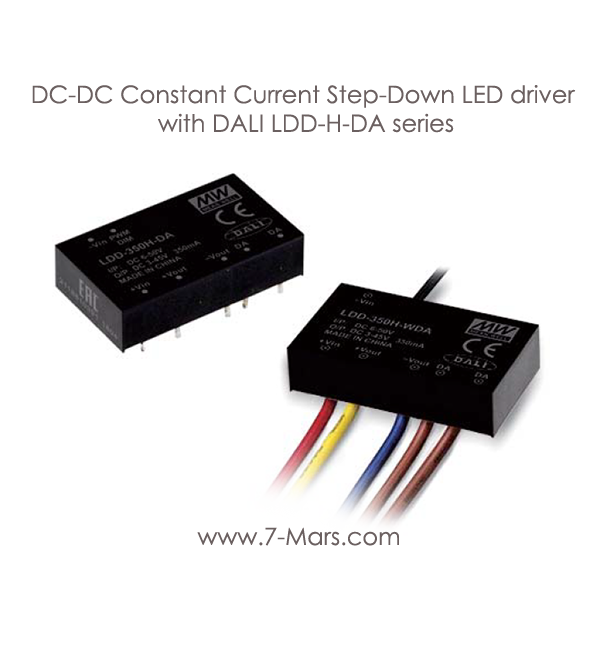

DC-DC Constant Current Step-Down LED driver with DALI LDD-H-DA series

* Current : 1400mA. / Output Voltage : 3 - 36VDC.

*W : Wire Style

Features :

1. DC/DC step-down converter
2. Constant current output: 350mA to 1400mA
3. Wide input voltage: 6 - 50VDC
4. Wide output LED string voltage: 3 ~ 45VDC
5. High efficiency up to 95%
6. Built-in EMI filter, comply with EN55015 without
7. additional input filter and capacitors
8. Built-in PWM and remote ON/OFF control(pin style only, wire style optional)
9. Protections: Short circuit
10. Cooling by free air convection
11. Fully encapsulated with IP65 level
12. Compact size
13. Suitable for driving illumination LED
14. 3 years warranty
