LDD-1200HBlank

SKU : LDD-1200HBlank

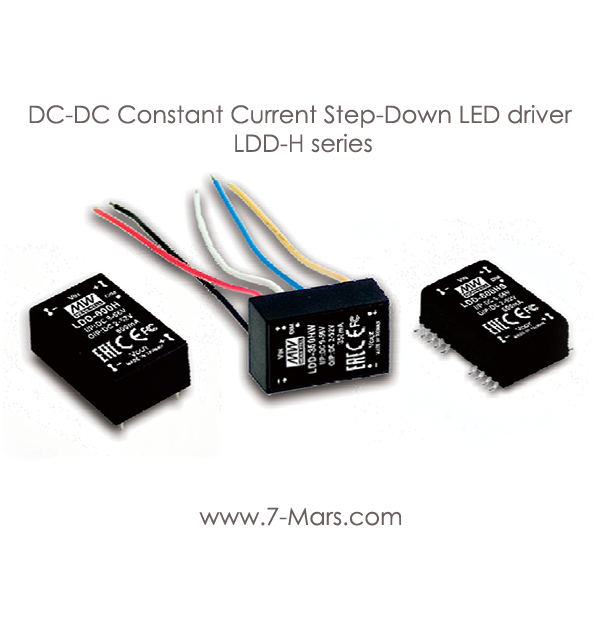

DC-DC Constant Current Step-Down LED driver LDD-H series

* Current : 1200mA. / Output Voltage : 2 - 46VDC.

*Blank : Pin style

Features :

1. DC/DC step-down converter
2. Constant current output: 300mA to 1500mA
3. Wide input voltage: 9-56VDC
4. Wide output LED string voltage: 2 - 52VDC
5. High efficiency up to 97%
6. Built-in EMI filter, comply with EN55015 and FCC part15 without
7. additional input filter and capacitors
8. Built-in PWM and remote ON/OFF control
9. Protections: Short circuit / Over temperature
10. Cooling by free air convection
11. Fully encapsulated with IP67 level for pin and wire style
12. Non-potted, optional conformal coating for SMD style
13. (Order No.: LDD-350-1000 HSC)
14. Compact size
15. Low cost, high reliability
16. Suitable for driving illumination LED
17. 3 years warranty
