ODLC-45A-350DA

SKU : ODLV-45A-350DA

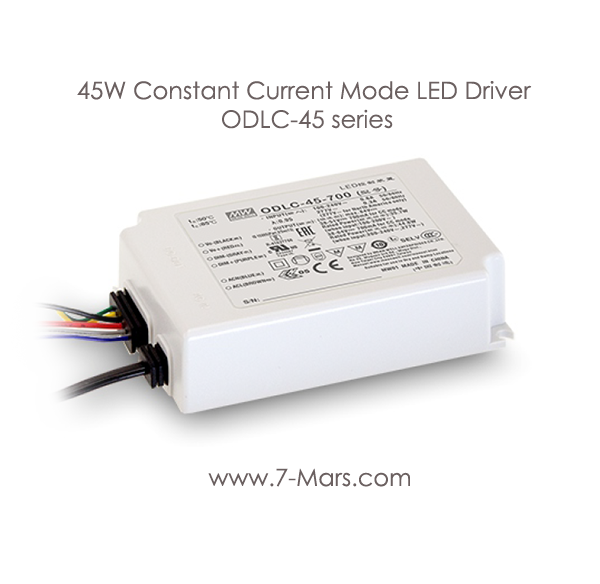

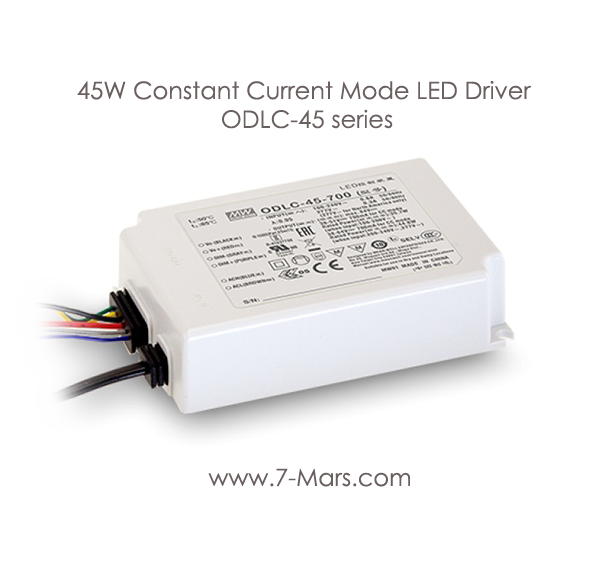

45W Constant Current Mode LED Driver ODLC-45 series

*Type DA DALI Technology Controller / Not In Stock Power Output : 33.25W. / Voltage : 57- 95V / Current : 350mA

Description :

ODLC-45 series is a 45W LED AC/DC driver featuring the constant current mode output with flicker free design.ODLC-45 operates from 90-295VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the efficiency up to 86%, with the fanless design, the entire series is able to operate for -20°C~+85°C case temperature under free convection. The design of plastic housing and IP67 ingress protection level allows this series to fit indoor wet applications. ODLC-45 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for lighting system.

Features :

1. Constant Current mode output
2. Flicker free design
3. Plastic housing with class II design
4. Built-in active PFC function
5. No load power consumption<0.5W(Blank-Type),
6. Standby power consumption<0.5W(DA-Type)
7. IP67 rating for indoor or outdoor installations
8. Function options: 2 in 1 dimming (dim-to-off);
9. Auxiliary DC output; DALI
10. 3 years warranty

Applications :

1. LED strip lighting
2. Indoor LED lighting
3. LED decorative lighting
4. LED architecture lighting
