HVGC-480-H-DX

SKU : HVGC-480-H-DX

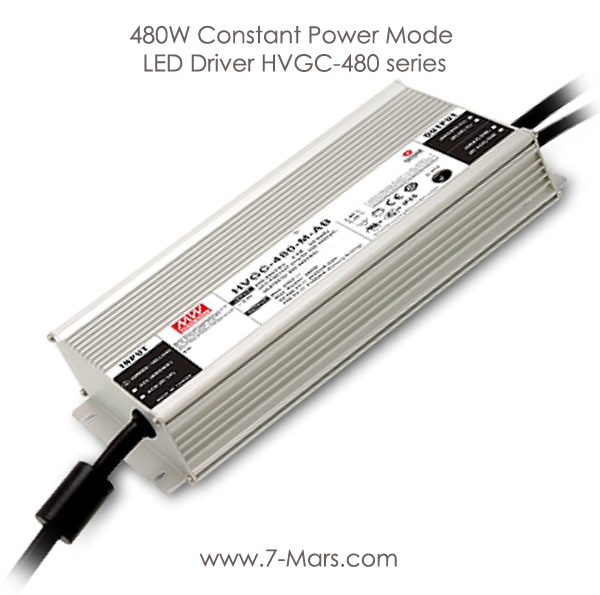

480W Constant Power Mode LED Driver HVGC-480 series

*Type DX IP67 Built-in Smart timer dimming function by user request / Note : In Stock  Power Output : 480W. / Voltage : 67 - 171.5V / Current : 2800mA.

Description :

HVGC-480 series is a 480W LED AC/DC driver featuring the constant power mode and high voltageoutput. HVGC-480 operates from 180-528VAC and offers models with different rated current rangingbetween 1400mA and 3500mA. Thanks to the high efficiency up to 94.5%, with the fanless design, theentire series is able to operate for -40°C~+90°C case temperature under free air convection. The designof metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HVGC-480 is equipped with various function options, such as dimming methodologies, soas to provide the optimal design flexibility for LED lighting system.

Features :

• Wide input range 180 ~ 528VAC
• Constant Power mode output
• Metal housing with Class I design
• Built-in active PFC function
• Function options: output adjustable via potentiometer,
• 3 in 1 dimming (dim-to-off) ; Smart timer dimming
• Typical lifetime>50000 hours
• 5 years warranty

Applications :

• Harbor lighting
• LED high-bay lighting
• Parking space lighting
• LED fishing lamp
• Type "HL" for use in Class I, Division 2
• hazardous (Classified) location.
