HVGC-150-1400D

SKU : HVGC-150-1400D

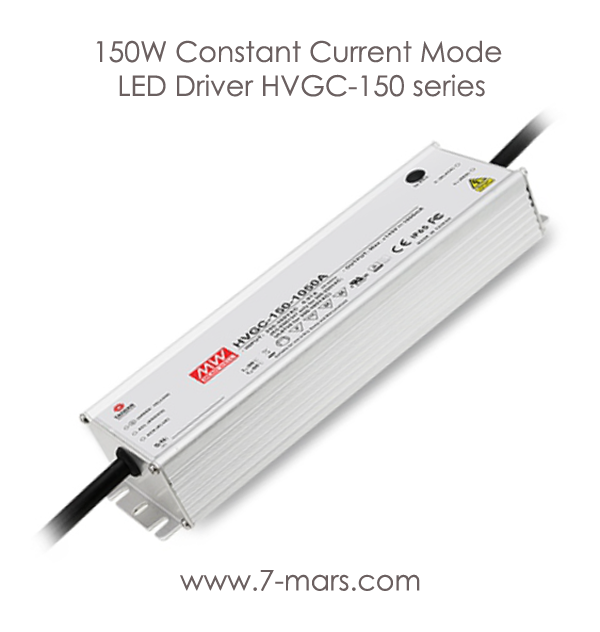

150W Constant Current Mode LED Driver HVGC-150 series

*Type D IP67 Timer dimming function, contact MEAN WELL for details(safety pending)   / Note : In Stock  Power Output : 149.8W. / Voltage : 12 - 107V / Current : 1400mA.

Description

HVGC-150 series is a 150W LED AC/DC LED power supply featuring the constant current mode and highvoltage output. HVGC-150 operates from 180-528VAC and offers models with different rated current rangingbetween 350mA and 1400mA. Thanks to the high efficiency up to 91%, with the fanless design, the entireseries is able to operate for -40°C ~ +80°C case temperature under free air convection. The design of metalhousing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications.HVGC-150 is equipped with various function options, such as dimming methodologies, so as to providethe optimal design flexibility for LED lighting system.

Features

• Wide input range 180 ~ 528VAC
• Constant Current mode output
• Metal housing with Class I design
• Built-in active PFC function
• IP67 / IP65 design for indoor or outdoor installations
• Function options: output adjustable via potentiometer;
• 3 in 1 dimming (dim-to-off) ; Timer dimming
• Typical lifetime>50000 hours
• 5 years warranty

Applications

• LED street lighting
• LED high-bay lighting
• Parking space lighting
• LED fishing lamp
• Type “HL" for use in Class I , Division 2
• hazardous (Classified) location.
