HVGC-100-350D

SKU : HVGC-100-350D

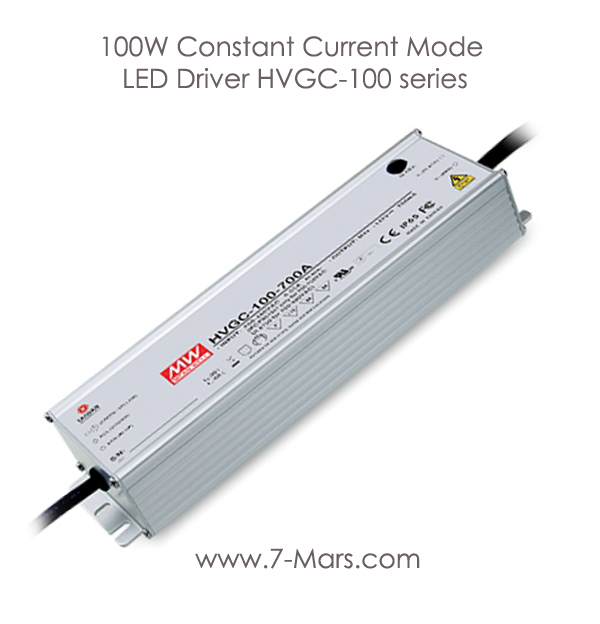

100W Constant Current Mode LED Driver HVGC-100 series

*Type D IP67 Timer dimming function, contact MEAN WELL for details(safety pending)./ Note : In Stock  Power Output :99.75W. / Voltage : 29 - 285V / Current : 350mA.

Description

HVGC-100 series is a 100W LED AC/DC LED drive featuring the constant current mode and high voltageoutput. HVGC-100 operates from 180-528 VAC and offers models with different rated current, 350mAand 700mA, respectively. Thanks to the high efficiency up to 91%, with the fanless design, the entireseries is able to operate for -40°C - +90°C case temperature under free air convection. The design of metalhousing and IP67/1P65 ingress protection level allows this series to fit both indoor and outdoor applications.HVGC-100 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

• Wide input range 180 ~ 528VAC
• Constant Current mode output
• Metal housing with Class I design
• Built-in active PFC function
• IP67 / IP65 design for indoor or outdoor installations
• Function options: output adjustable via potentiometer;
• 3 in 1 dimming (dim-to-off) ; Timer dimming
• Typical lifetime>50000 hours
• 5 years warranty

Applications

• LED street lighting
• LED high-bay lighting
• Parking space lighting
• LED fishing lamp
