รหัสสินค้า : DZW-30KVA


1,500.00 USD

1,600.00 USD

ราคารวม 1,500.00 USD

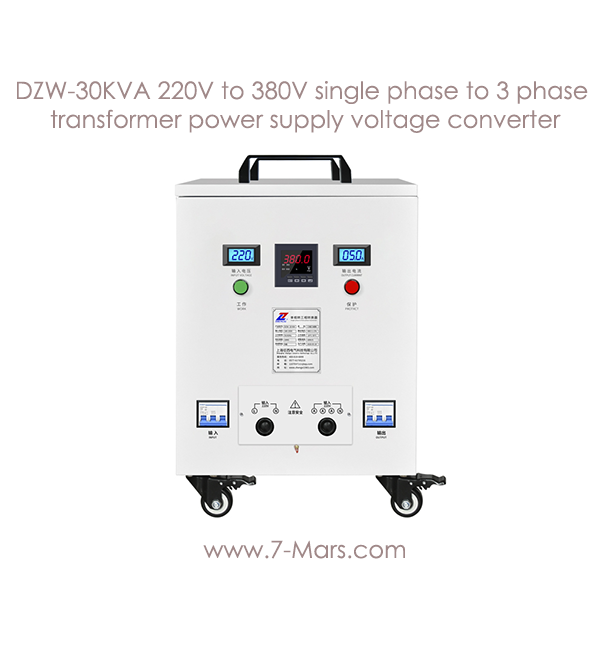

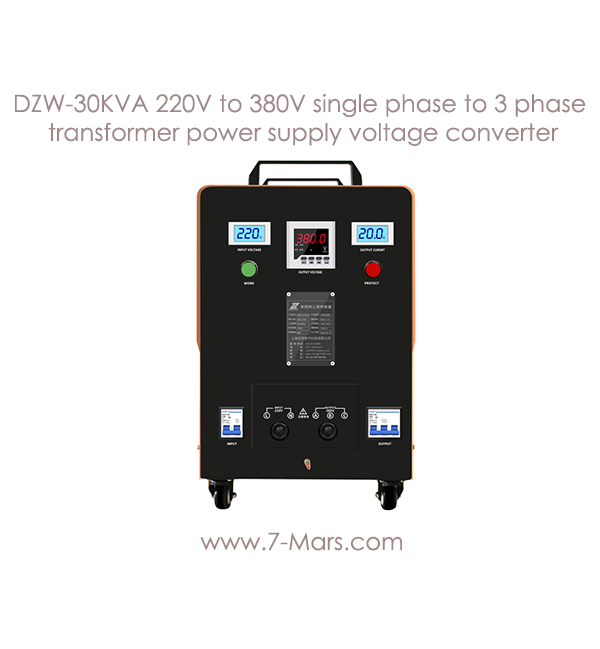

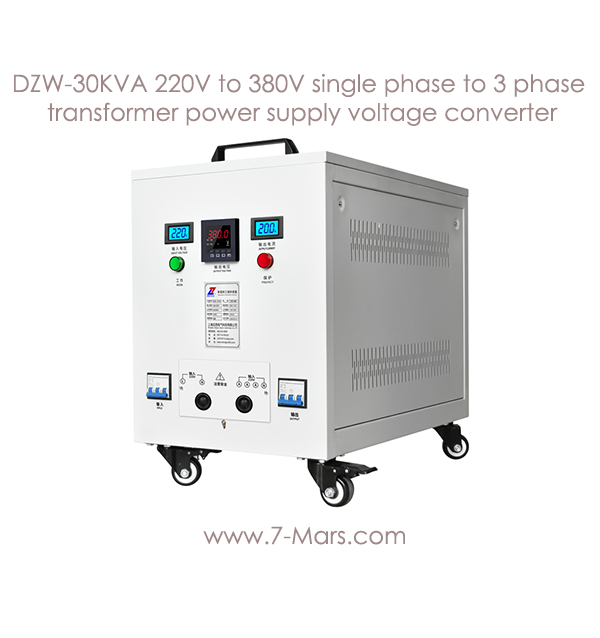

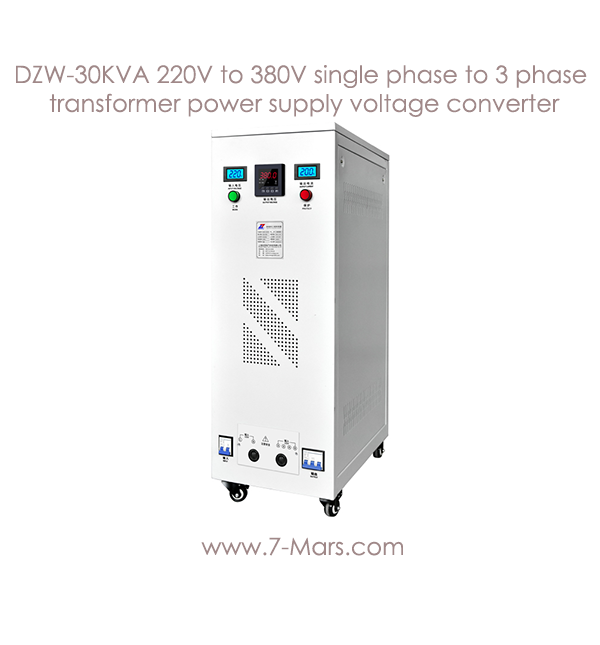

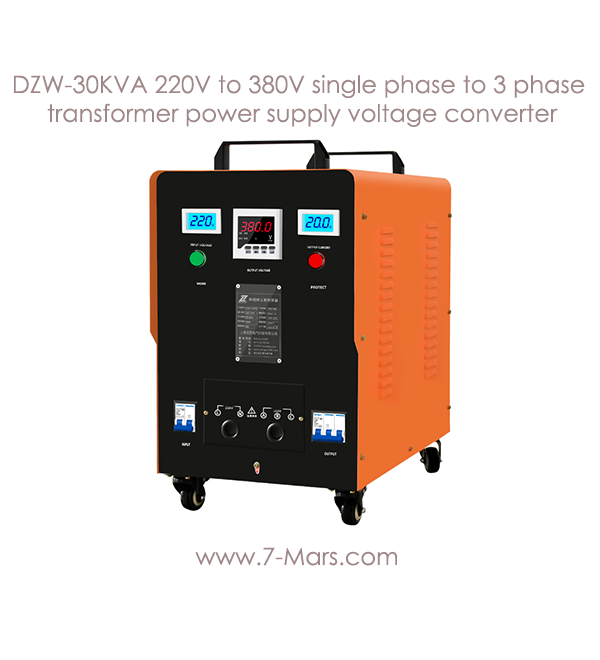

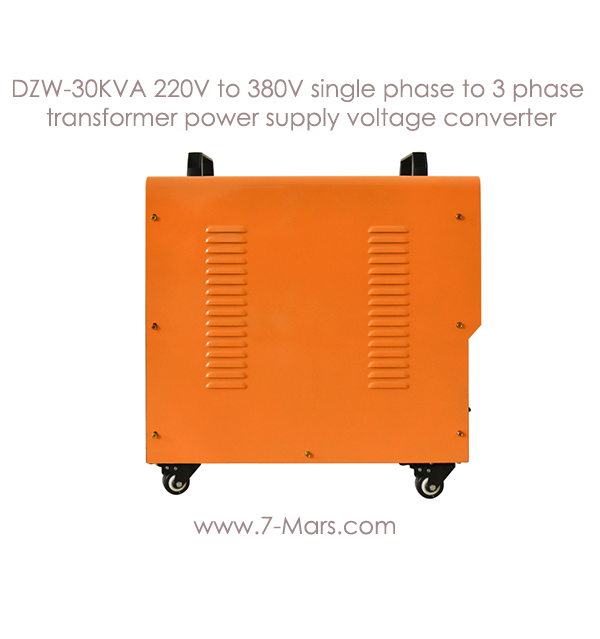

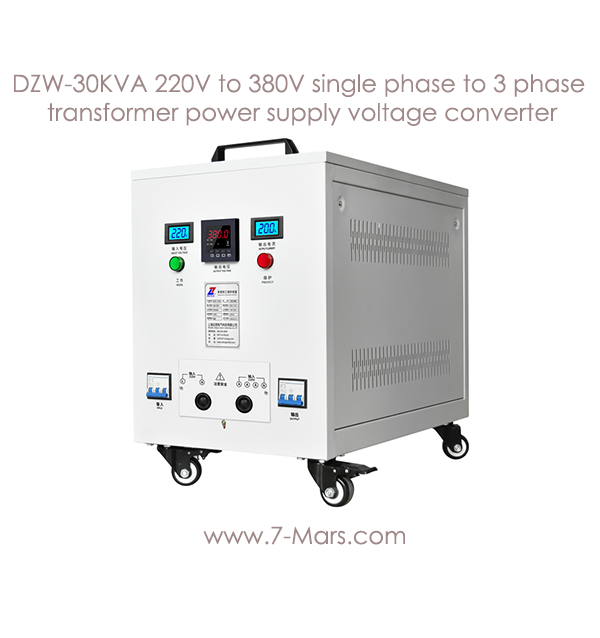

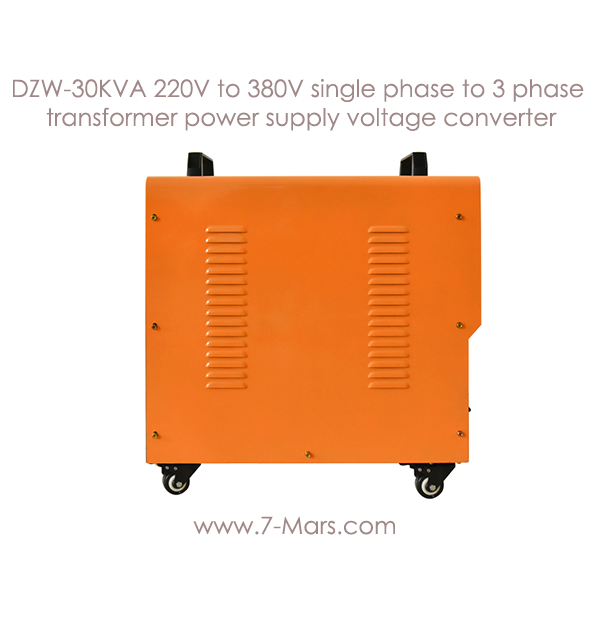

DZW-30KVA 220V to 380V single phase to 3 phase transformer power supply voltage converter

Quick Details :

  1. Place of Origin : Zhejiang, China / Model Number : DZW-30KVA
  2. Phase : Single / AUTOTRANSFORMER / Coil Number : Output voltage : 380:1-3% three phase
  3. Frequency:: 50Hz/60Hz / Display : LCD / Response : 10MS / output terminal : 3 phase 3 wires/3 phase 4 wires
  4. Brand Name : Energy Power or OEM / Usage : Power / Coil Structure : / TOROIDAL Input Voltage : 180-250V single phase / Phase current high grade 41A low grade 82A Output current
  5. Capacity : 30KVA Certificate / CE/ ISO9001 / Adjust speed : 100V/S

หมายเหตุ : สินค้ารายการนี้ มีศูนย์ บริการในประเทศ มีบริการติดตั้ง และให้คำแนะนำกรณีมีช่างติดตั้งเอง จัดส่งถึงมือลูกค้าก่อนชำระเงิน ค่าจัดส่งค่าใช้จ่ายอัตตราของผู้ให้บริการรายต่างๆ ตามบิล สำหรับร้านค้าและช่างมีราคา พิเศษ ร้านค้าหรือช่างสามารถสมัครสมาชิกสะสมแต้ม เพื่อแลกของรางวัลได้ที่หน้าเวปไซด์ มีของรางวัลหลายรายการ ( สินค้านี้ซื้อ 1ชิ้น ขึ้นไป ส่งฟรี ) รับตัวแทนจำหน่าย ฟรีข้อมูลสินค้า รับสอนประกอบและตรวจซ่อมฟรี / ไม่มีค่าใช้จ่าย / มีอะไหล่และเครื่องมือในราคาช่าง



Single-phase three-phase power supply, general-purpose direct / direct-current circuit structure, SPWM control technology used, general single-phase three-phase power for industrial use. Single-phase conversion three-phase power conversion after three-phase power standard sine wave, phase angle 120 °, tsunami loss rate small 2%, full-fledged national three-phase power mass standard, application in various types. Single phase three-phase power supply solution for three-phase electric power supply due to inconvenient three-phase electric power production, inconvenient, three-phase electric power supply demand for three-phase electric power supply.

           System principle :

The inverter power supply after AC→DC→AC conversion is called single-phase to three-phase power supply, which is different from the variable used for motor speed regulation.Frequency control controller. The main function of the single-phase to threephase power supply is to convert the existing AC grid 220V into three-phase 380V power.Electric sine wave power supply. The ideal AC power supply is characterized by stable frequency, stable voltage, internal resistance equal to zero, and pure voltage waveform.Sine wave (no distortion). The inverter power supply is very close to the ideal AC power supply, so it can completely replace the remote area or cannot apply.Please ask for the three-phase area, but the output power of the single-phase to threephase power supply is determined by the 220V current of the mains. DZW series Phase-to-phase three-phase power supply, with microprocessor as the core, MPWM mode, designed with active component IGBT module, adopted Digital frequency division, D/A conversion, instantaneous value feedback, sinusoidal pulse width modulation and other technologies, so that the stand-alone capacity can reach 400KVA,Isolation transformer output to increase the stability of the whole machine, with strong load adaptability, good output waveform quality, easy operation and volume Small, light weight and other features, with short circuit, over current, overload, overheating and other protection functions to ensure reliable operation of the power supply.

              Technical characteristics :

  1. Ordinary City Electricity Import, Ministry of Application Three-phase Electric Prosperity Procedures and Various Artificial Compositions.
  2. Three-phase electricity for industrial use, but single-phase electricity for civil use
  3. The core of the machine, the performance, the service life length.
  4. Safely available, import single-phase electricity supply and export three-phase electricity complete gas isolation.
  5. Import and pressure design, applicable area.
  6. Various types of protection, such as export protection, perfection of transport, overpressure, overload, overheating, short circuit, self-determination protection, etc.
  7. Power supply simultaneous power control, electric power, dry performance, good performance, excellent power supply One equipment update, more power supply environment.
