45-110A PTFE HEAT SEALER – Belt Repair

SKU : 45-110A PTFE

Product not found

Price

4,150.00 USD

4,250.00 USD

Quantity to buy
Total

Do not have enough stock

Out of stock

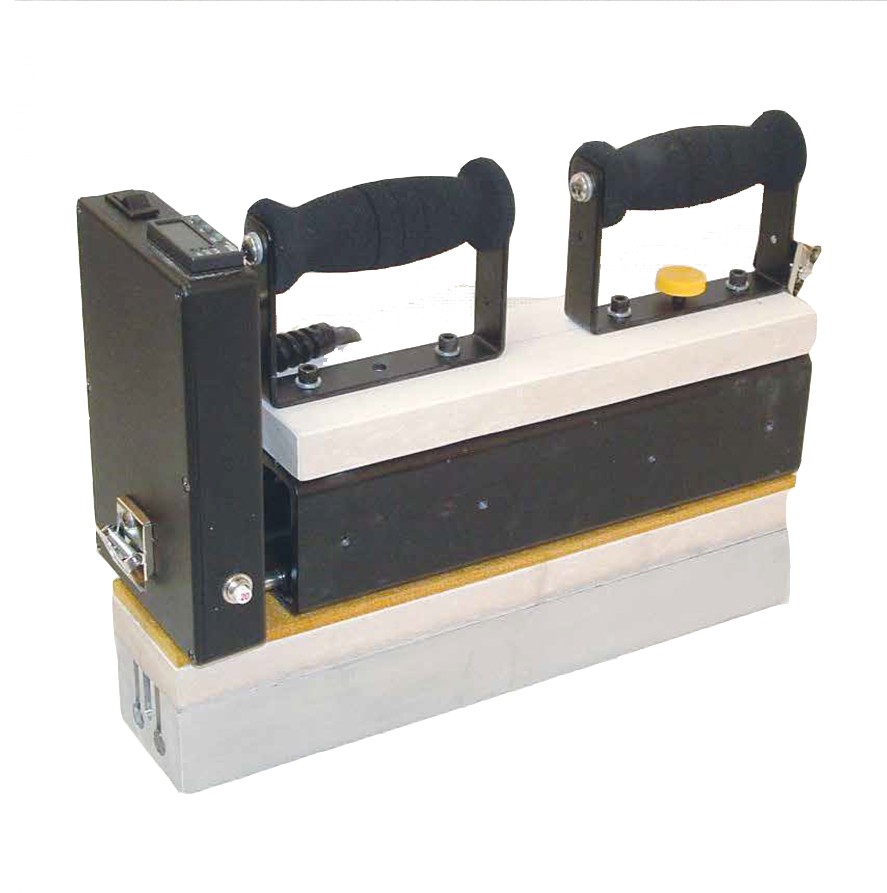

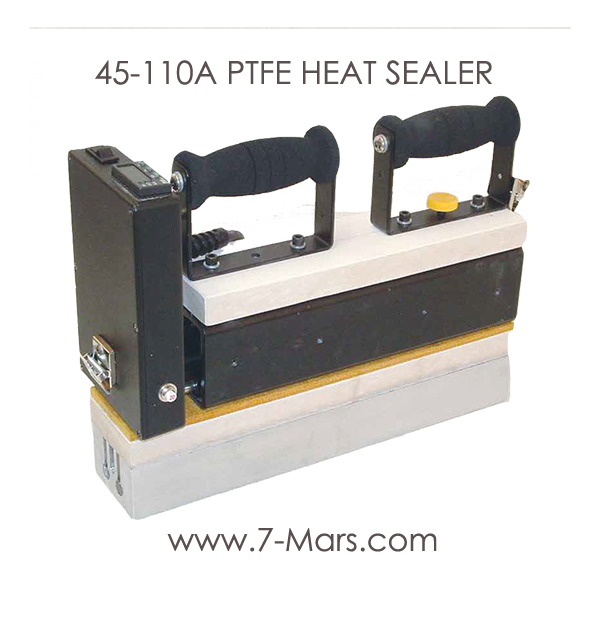

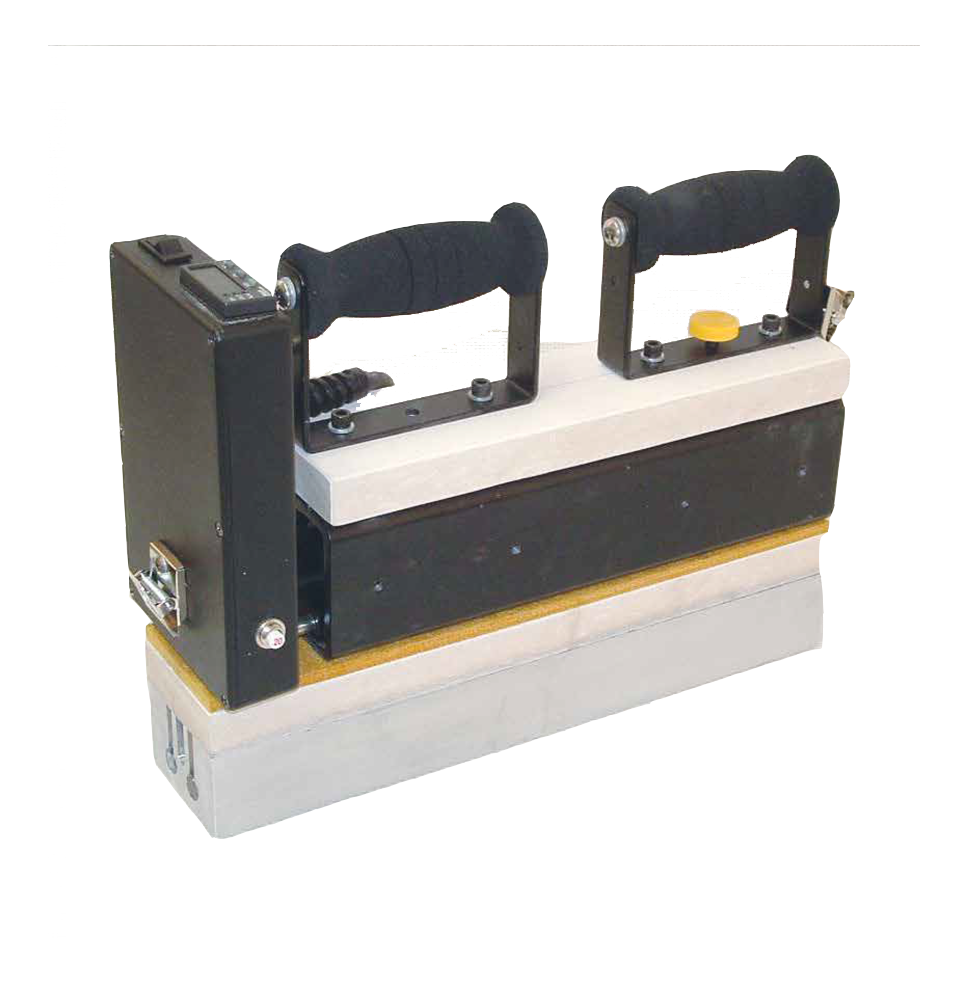

MODEL 45-110A PTFE HEAT SEALER 1800W

Overview :

  • เครื่องซีลความร้อนรุ่น 45 เป็นเครื่องซีลความร้อน 1800 วัตต์ มีพื้นที่ปิดผนึก 3" x 14.5" และหนัก 36.5 ปอนด์ เครื่องซีลปากถุงนี้มีตัวควบคุมอุณหภูมิแบบดิจิตอลที่แสดงอุณหภูมิที่แท้จริงของแท่นวางและน้ำหนัก 11 ปอนด์ที่ถอดออกได้ ตุ้มน้ำหนักได้รับการออกแบบมาให้วางทับบนตัวปิดผนึกด้วยความร้อนเมื่อต้องใช้แรงกดลงเป็นพิเศษ รุ่นนี้เหมาะสำหรับปิดผนึกสายพานลำเลียงเคลือบ PTFE ที่มีความกว้างมากกว่า 60 นิ้ว
  • This PTFE heat sealer includes a digital temperature controller that displays the actual temperature of the platen and a removable 11 lb lead weight. Recommended for sealing PTFE coated conveyor belts over 60 inches wide. / The Model 45 Heat Sealer is an 1800 watt heat sealer. It has a sealing area of 3" x 14.5", and is 36.5 lbs. This sealer includes a digital temperature controller that displays the actual temperature of the platen and a removable 11 lb weight. The weight is designed to be placed on top of the heat sealer when extra downward force is required. This model is recommended for sealing PTFE coated conveyor belts over 60 inches wide.

หมายเหตุ : สินค้านี้ มีศูนย์ บริการในประเทศไทย สินค้านี้มีบริการจัดส่งถึงมือลูกค้าพร้อมชำระเงิน / มีการแนะนำการใช้งาน /.พร้อมบริการหลังการขาย / สินค้ามีราคาตัวแทนและราคาช่าง

สินค้ารายการนี้ มีบริการถอดแบบ และมีตัวอย่างสินค้า เปรียบเทียบการใช้งาน หรือทดลองกับหน้างานจริง / สินค้ารับประกัน 3ปี / รับตัวแทนจำหน่ายสินค้าราคาส่งและช่างบริการทุกพื้นที่ รับปรับปรุงระบบใหม่/เก่า ให้รองรับการทำงานเพื่อยึดอายุการใช้งาน ลดค่าซ่อม ลดค่าใช้จ่าย ประหยัดพลังาน เพิ่มประสิทธิภาพการทำงานผ่านระบบงาน ผู้รับเหมาภายใน

Order tracking

Heat Sealers & Belt Repair Supplies (continued)


  • กำลังวัตต์ - 1800 วัตต์
  • พื้นที่ปิดผนึก - 3" x 14.5"
  • แอมแปร์ - 15 @ 120 โวลต์ /  ( @ 240 โวลต์ 8.5A )
  • (น้ำหนัก - 36.5 ปอนด์ / 16.5kgs. )
  • รวมน้ำหนักตะกั่ว 11.7ปอนด์  11Lb.แบบถอดออกได้



  • Wattage - 1800 W.
  • Sealing Area - 3" x 14.5"
  • Amperage - 15 @ 120 Volts ( @ 240 Volts  8.5A )
  • Weight - 36.5 lbs. ( 16.5kgs.)(including the 11.7Lb.removable lead weight).


การตั้งค่าอุณหภูมิที่ต้องการใช้งาน / Changing the Temperature Set Point

WIRING SCHEMATIC 120V MODEL 25 SEALERS

Changing voltage from 110/120V to 220/240V (Model 23 and Model 45 Heaters)

High temperature industrial fabrics
