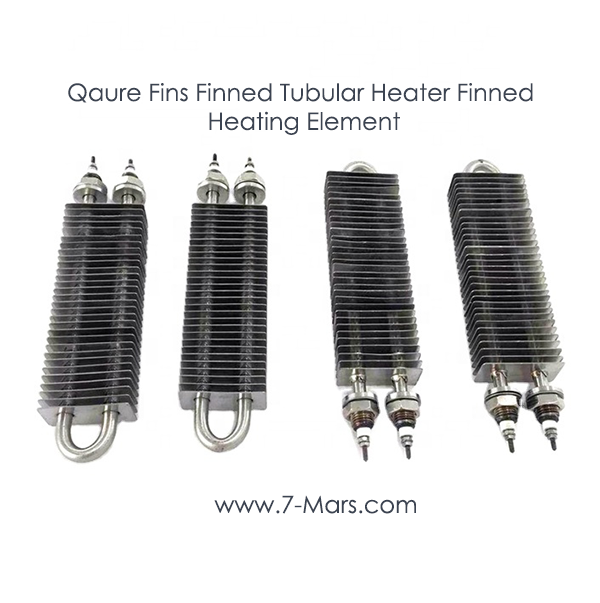

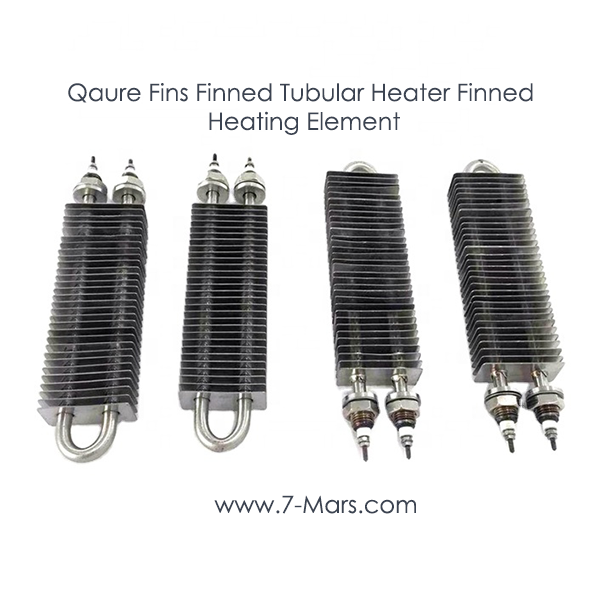

Qaure Fins Finned Tubular Heater

SKU : RH-BF UQ-500W

Qaure Fins Finned Tubular Heater Finned Heating Element

for Industrial Air Heater

Tubular Air Heater Element RH-BF UQ Shaped : 500W

Finned tubular heater is wound with metal fins on the surface of the common heating element. Compared with the common element, the heat dissipation area is enlarged by 2 to 3 times, that is, the allowable surface power load of the fin element is 3 to 4 times that of the common element. Because the length of the element is shortened, the heat loss is reduced. Under the same power condition, it has the advantages of fast temperature rise, uniform heat generation, good heat dissipation performance, high thermal efficiency, long service life, small heating device, and low cost. Reasonable design according to user requirements, easy to install. Products are widely used in machinery manufacturing, automobiles, textiles, food, home appliances and other industries, especially in the air-conditioner air curtain industry.

Moreover, the finned tubular heater is particularly good at heating petroleum and fluid. Finned tubular heaters are also widely used in industry and chemical industry, which is obvious to all. The choice of finned tubular heater is also very necessary. It is more important for buyers to choose a good supplier!

Overview :

1. Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery ... / TUBULAR HEATER JIA Type: / Place of Origin: Chiana Dimension(L*W*H):
2. Voltage: Working Temperature Range: Customizable 12V-480V/Customizable 50 - 800 °C / Marketing Type: Ordinary Product Core Components: Other, Resistance wire / Video outgoing-
3. inspection: Provided +1 mm / Length tolerance / Wattage tolerance: Keywords: 3% / Fin Heating Element Fin size: 5-28mm or customized Local Service Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, Certification: CE Rohs
4. Showroom Location: Egypt, Canada, Turkey, Italy, France, Germany, Peru, Saudi Ar... / Condition: New Power Source: / Electric Brand Name: Leader Weight: 1.5 KG / Warranty: 1 Year Material: Stainless Steel, Sus304/321/316L/Ocr25ni20/Incoloy 800/...
5. Long Service Life 1 Year Key Selling Points: Warranty of core components: / Machinery Test Report: Shape: Not Available 1/L/U/W/Round-Shaped, etc / Tube Diameter: 6mm/8mm/10mm/12mm/14mm/16mm etc. Diameter tolerance: +0.02mm
6. Application: Resistance wire. Air heating OCr25A/Ni8oCr20/KANTHAL Video technical support, Online support After Warranty Service: Video technical support, Online support After-sales Service Provided:

สินค้าจัดส่งตามจำนวนแบบ Door to Door / กรณีซื้อมากกว่าจำนวนขั้นต่ำส่งฟรีโดยบริการของ บริษัท

• หมายเหตุ Price : Member : Contact : info@7-mars.com

Packing : ( 5Pcs / Ctn. ) MOQ. 5Ea. / สินค้าผลิต OEM /ODM ตามสั่ง ส่งตรงจากโรงงานผู้ผลิต 7 - 10 วัน
