Turbular immersion Heating Element

SKU : DN50 220V/380V 9KW

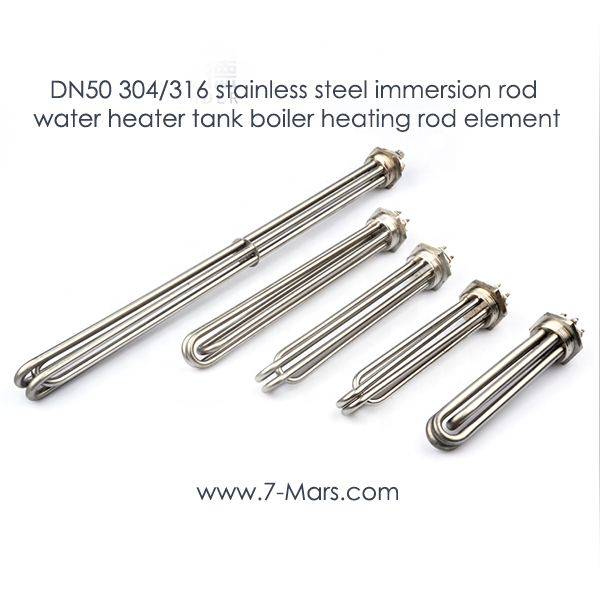

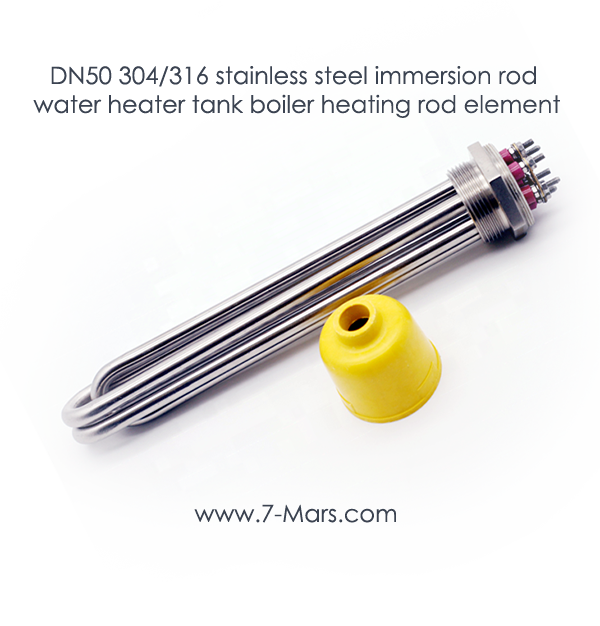

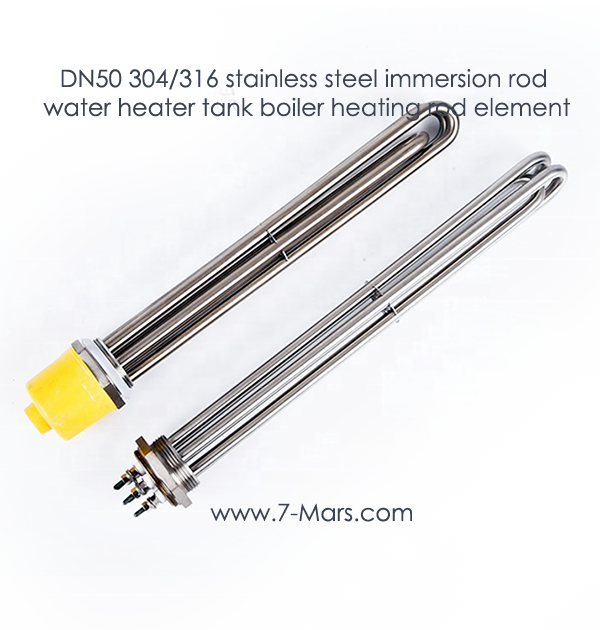

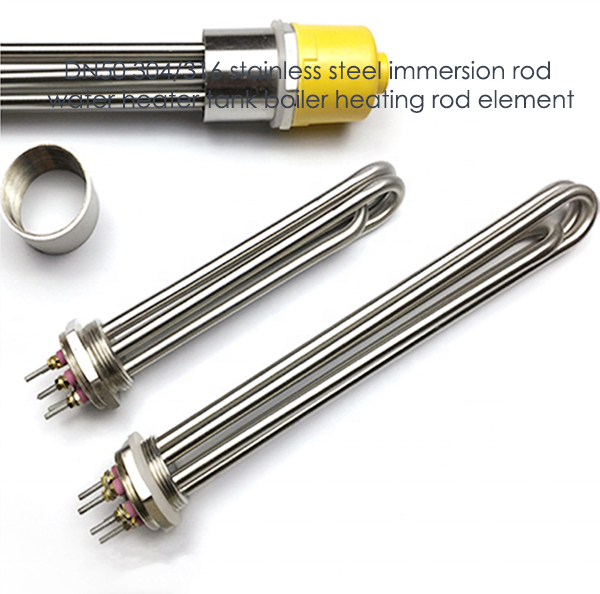

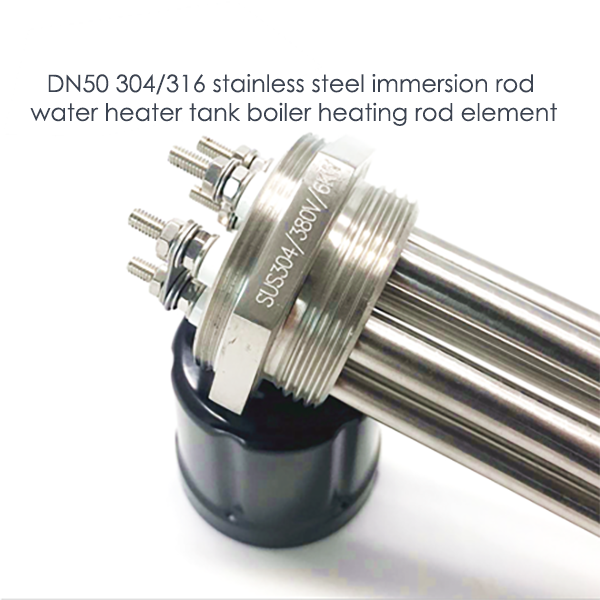

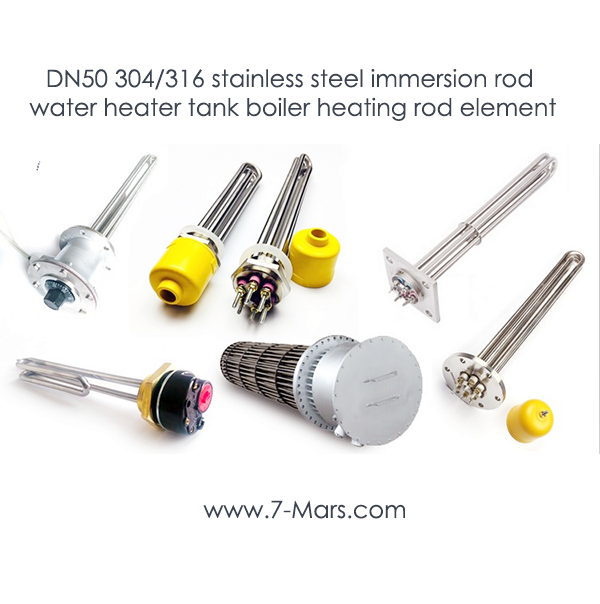

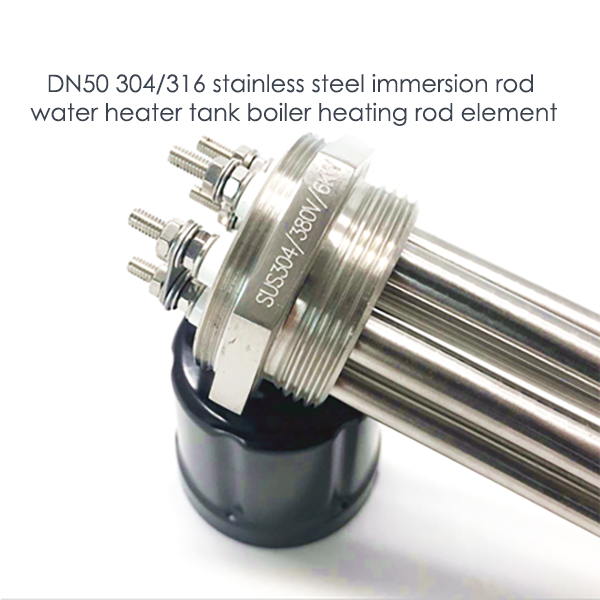

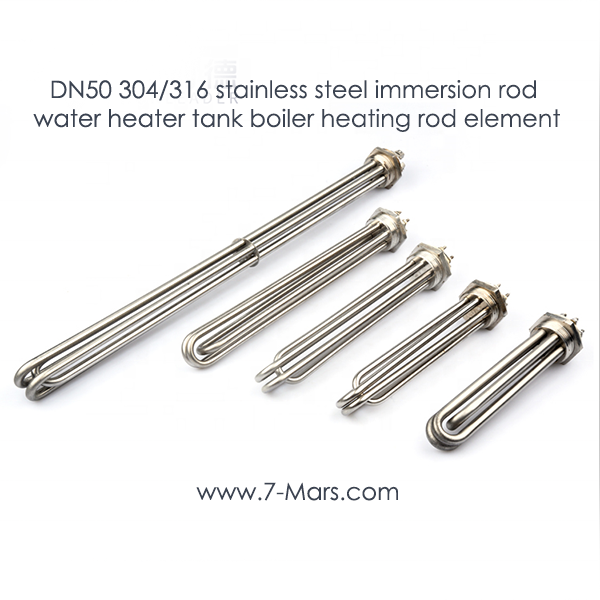

DN50 304/316 stainless steel immersion rod water heater tank boiler heating rod element

RH-F Series DN50 220V/380V 9KW

Stainless steel electric heating rod (electric heating tube) is a metal tube as the shell, and spiral electric heating alloy wires (nickel-chromium, iron-chromium alloy) are uniformly distributed along the central axis of the tube. The gaps are filled and compacted with magnesium oxide powder with good insulation and thermal conductivity. Both ends are sealed with silica gel or ceramics. This metal armored electric heating element can be widely used for heating water, oil, air, nitrate solution, acid solution, alkali solution and low melting point metals (aluminum, zinc, tin, babbitt alloy) , It has the advantages of good heating efficiency, uniform temperature, high temperature resistance, corrosion resistance, and good safety performance.

Quick Details :

1. Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery ... Type: Immersion Heater Place of Origin: JIA
2. Dimension(L*W*H): Customizable Voltage: 12-480v 5 - 800 °C / Working Temperature Range: Marketing Type Ordinary Product / Core Components Resistance wire Provided Video outgoing inspection
3. Voltages available: 12V AC-600V AC Keywords Immersion Heater Element Tube material: Stainless Steel 304/316/321/310/Titanium/Incoloy 800 Anti-explosion box or Thermostat Terminal option:
4. Video technical support, Online support After Warranty Service: Video technical support, Online support After-sales Service Provided: / Showroom Location: Canada, United Kingdom, United States, Italy, France, Germa...
5. Condition: New Power Source: Electric Brand Name: Leader / Weight: 2.5 KG Warranty: / 1 Year Material: Stainless Steel Long Service Life 1 Year Key Selling Points: Warranty of core components: Machinery Test
6. Report: Not Available Insulation material: 99% Purity MGO Heating medium: Air,Water, Oil,Other liquid etc Power: 1KW-2000KW Diameter: 8mm/10mm/12mm/14mm/16mm etc. Diameter tolerance: +0.05mm -0.05mm (+002"-002")
7. Wattage tolerance: +3% Canada, United Kingdom, United States, Italy, Germany, Viet... Local Service Location: Certification: ISO9001 CQC CE

สินค้าจัดส่งตามจำนวนแบบ Door to Door / กรณีซื้อมากกว่าจำนวนขั้นต่ำส่งฟรีโดยบริการของ บริษัท

• หมายเหตุ Price : Member : Contact : info@7-mars.com

Packing : ( 1 Pcs / Ctn. ) MOQ. 1Ea. / สินค้าผลิต OEM /ODM ตามสั่ง ส่งตรงจากโรงงานผู้ผลิต 7 - 10 วัน
