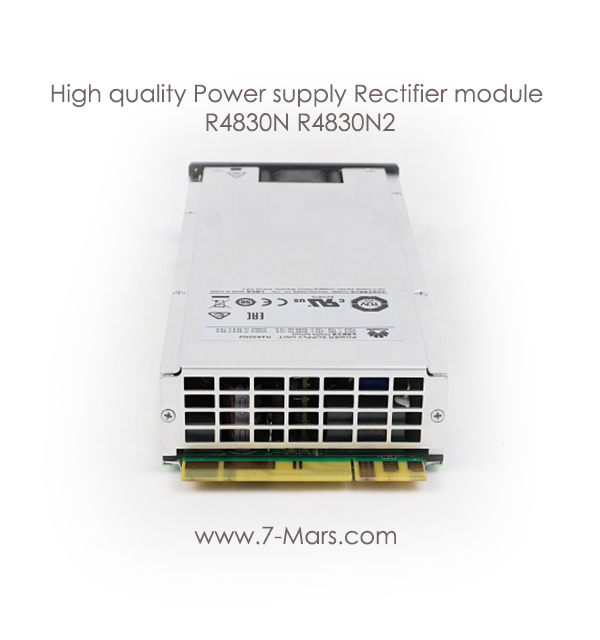

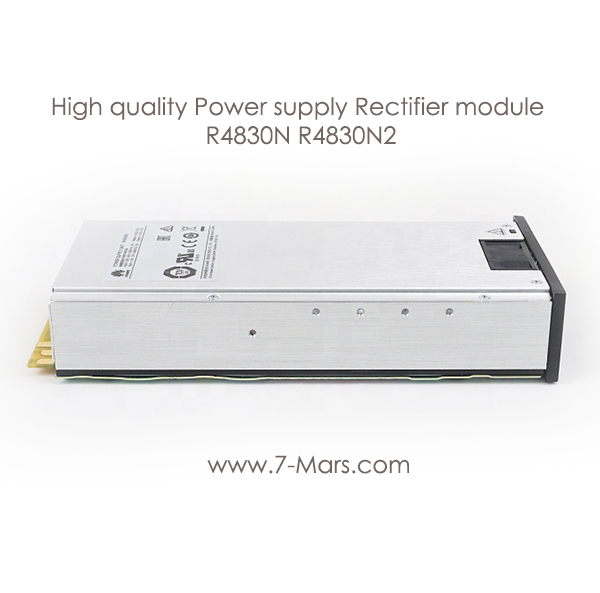

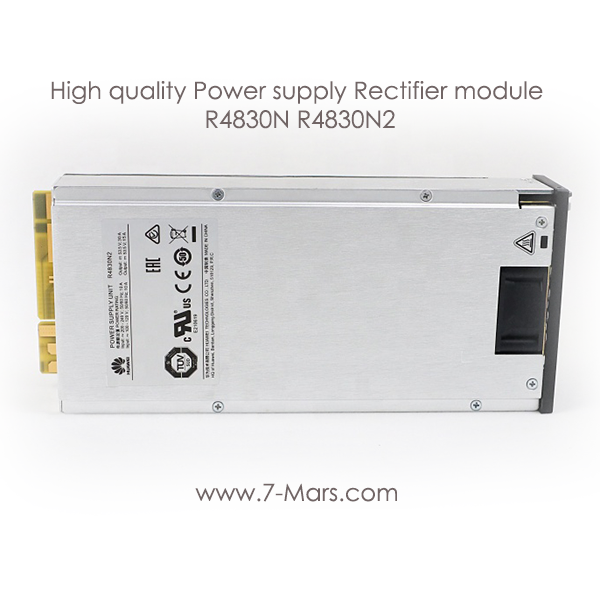

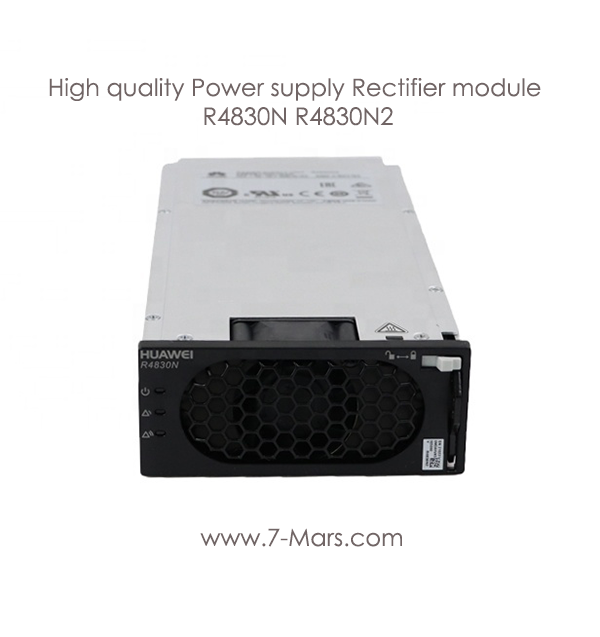

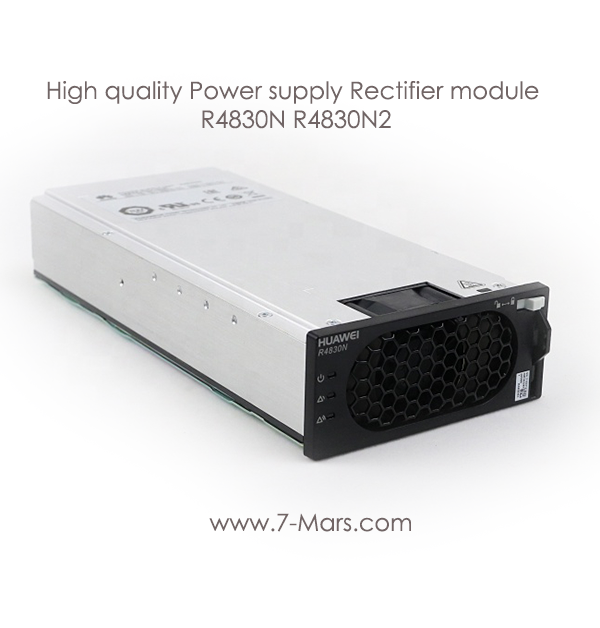

High quality power supply rectifier module R4830N R4830N2

R4830N2 is a 1740W, 94% efficiency, digital controlled high power density rectifier.

 It converts input Voltage ranges between 85 to 300 Vac into 42 to 58 Vdc adjustable output voltage.

 With comprehensive protection functions, it supports walk-in start function, with low noise operation and latest technology on real time state monitoring.

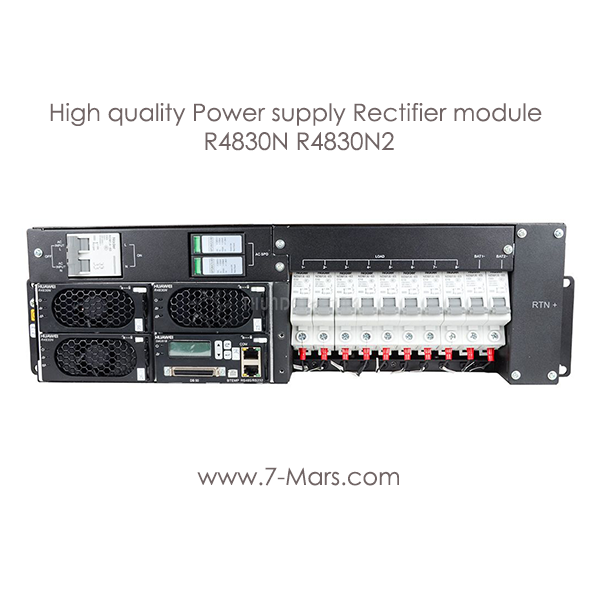

Part for ETP4890-B3A2 subrack composed by 3xR4830N 1xSMU01B

  1. Input: ~200~240V, 50/60Hz, 30A Max
  2. Output: -48V, 90A Max
  3. Maximum output power: 4815W
  4. 3U height
  5. With 8 load ports, 2 port BATT
  6. Provides comprehensive battery management.
  7. Supports SMU01A, SMU01B, SMU01C Monitor module.
  8. SMU01A supports WebUI remote management and SNMP.
  9. SMU01B can connect to the U2000 over Huawei master/slave protocols.
  10. Displays information on a LCD and provides buttons for operations.
  11. Supports electronic labels.
  12. Rectifiers and the site monitoring unit (SMU) are hot-swappable.
  13. Allows high-efficiency and standard-efficiency rectifiers with the same capacity to coexist.
  14. Apply for Huawei OLT, Huawei OSN, Huawei Router and Huawei Switch.

ETP4890-B3A2 has three rectifier slots, can support R4830G, R4815N and R4830N, three R4830N rectifiers are configured by default. Monitor SMU01A, SMU01B, SMU01C are also supported, only SMU01A provides WebUI

and implements remote unattended management. ETP4890-B3A2 can apply to Huawei OSN8800 OSN3500 MA5800, which provides excellent performance such as intelligent battery management, remote monitoring, etc.
