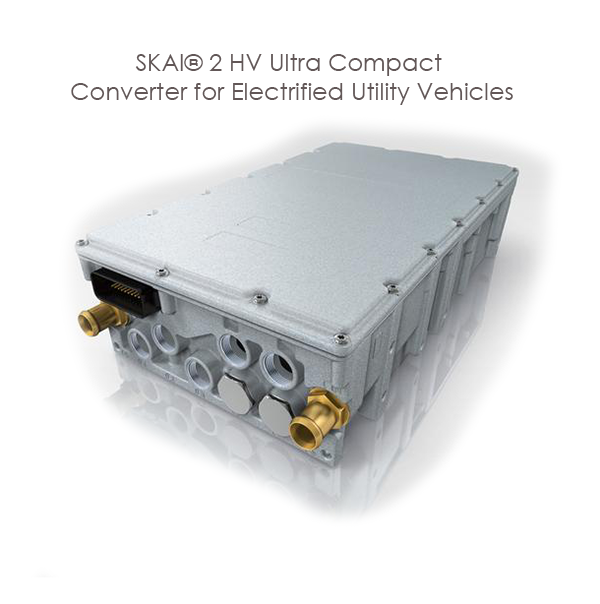

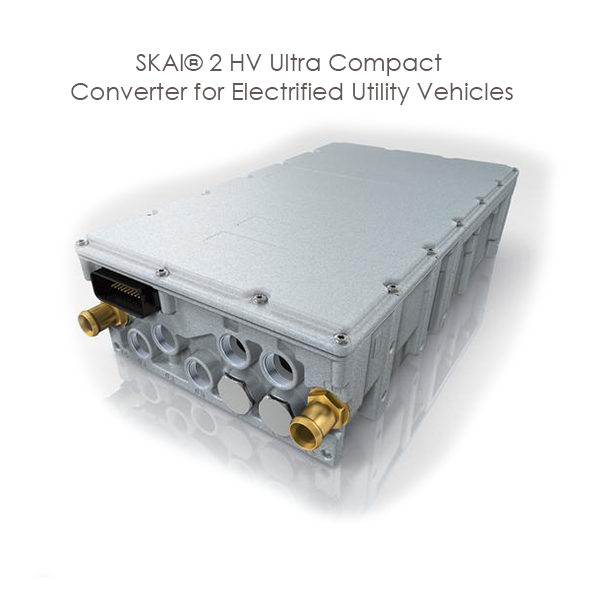

SKAI® 2 HV – Ultra Compact Converter for Electrified Utility Vehicles

Product Overview :

  • SKAI 2 HV comprises a versatile 3-phase AC/DC and DC/AC converter platform designed for electrified vehicles. It covers key requirements such as high power density, exceptional ruggedness and automotive EMI compliance. The integrated motor control software SKAIware ensures highly efficient operation of the electric drive train.

หมายเหตุ : สินค้านี้ มีศูนย์ บริการในประเทศไทย สินค้านี้มีบริการจัดส่งถึงมือลูกค้าพร้อมชำระเงิน / มีการสมัครสมาชิกสะสมแต้มเป็นส่วนลดเงินสดได้ /.พร้อมบริการหลังการขาย / สินค้ามีราคาตัวแทนและราคาช่าง

สินค้ารายการนี้ บริการตรวจซ่อมในประเทศฟรี 3ปี / ไม่รวมค่าอะไหล่ / สินค้ารับประกัน 5ปี / Service ทุกๆ 3 เดือน รับตัวแทนจำหน่ายสินค้าราคาส่งและช่างบริการทุกพื้นที่ รับปรับปรุงระบบใหม่/เก่า ให้รองรับกับความต้องการของลูกค้าการทำงานเพื่อยึดอายุการใช้งาน ลดค่าซ่อม ลดค่าใช้จ่าย ประหยัดพลังาน เพิ่มประสิทธิภาพการทำงาน

Order tracking

Configurable Converter Platform for E-Mobility



Versatile „off-the-shelf“ versions

With integrated controller (CAN interface)

  • Full converter with generic drive control software SKAIware
  • Full converter ready to run with customer specific drive software

With integrated gate driver (switching signal interface)

  • Converter with gate driver, protection functions, current, DC-voltage, temperature sensing

Optional services available

  • End-of-line flashing of customer specific software
  • Individual parameterisation of motor control software


Versatile interfaces for signal and power



For motor position sensors

  • Resolver
  • Sin/Cos encoder
  • Optionally incremental encoder

For motor temperature sensors

  • KTYx/YBBxxx/PTxx/NTCxx

Multi-purpose I/O lines

  • 2 x digital in/out, 2 x analog in

Flexible power connections

  • Cable glands 35mm2-70mm2 optional power connectors for process-safe assembly
  • Optional two DC lines for power distribution

All connections on narrow, front side of inverter





Fast drive commissioning



PC based configuration tool features

  • ECU/VCU simulation
  • Operating values displayed in real-time
  • Variable visualisation and recording with the integrated scope function
  • Configuration via parameter sets
  • CAN logger for supervising and data logging
  • Automated position sensor offset calibration

Additional engineering services on request
