UNITRONIC® BUS PB 105 plus

SKU : 2170635

Product not found

Price

430.00 USD

450.00 USD

Quantity to buy
Total

Do not have enough stock

Out of stock

Bus system PROFIBUS-DP/FMS/FIP

Fixed Installation

PROFIBUS cable with an extended temperature range up to +105°C; short term +120°C

Bus cable for PROFIBUS-DP, -FMS and FIP. No additional cable protection against high temp. Temperature range from -40°C bis +105°C (short-term: up to +120°C)

Benefits :

No need for additional cable protection against high temperatures / High temperature resistance

Application range :

for installation in hollow shaft between gear units and pitch system / Suitable for fixed installation and occasionally flexible use in high temperature areas

Product features :

Permanent load up to +105°C, temporary load +120°C / Norm references / Approvals In accordance with DIN 19245 and EN 50170, e.g. for SIEMENS SIMATIC NET, also suitable for FIP (Factory Instrumentation Protocol)

หมายเหตุ : สินค้านี้ มีศูนย์ บริการในประเทศไทย สินค้านี้มีบริการจัดส่งถึงมือลูกค้าพร้อมชำระเงิน / มีการสมัครสมาชิกสะสมแต้มเป็นส่วนลดเงินสดได้ /.พร้อมบริการหลังการขาย / สินค้ามีราคาตัวแทนและราคาช่าง สั่งซื้อ 2 ม้วน ราคาพิเศษ ส่งฟรี !

สินค้ารายการนี้ บริการตรวจซ่อมในประเทศฟรี 3ปี / ไม่รวมค่าอะไหล่ / สินค้ารับประกัน 3ปี / Service ทุกๆ 6 เดือน รับตัวแทนจำหน่ายสินค้าราคาส่งและช่างบริการทุกพื้นที่ รับปรับปรุงระบบใหม่/เก่า ให้รองรับกับความต้องการของลูกค้าการทำงานเพื่อยึดอายุการใช้งาน ลดค่าซ่อม ลดค่าใช้จ่าย ประหยัดพลังาน เพิ่มประสิทธิภาพการทำงาน สินค้า มีส่งด่วน กรณีงานซ่อม ลูกค้าสนใจใช้บริการกรุณาติดต่อ +66 ( 02) 114 7145-9 Ext. sales

Order tracking

VDO. Guide

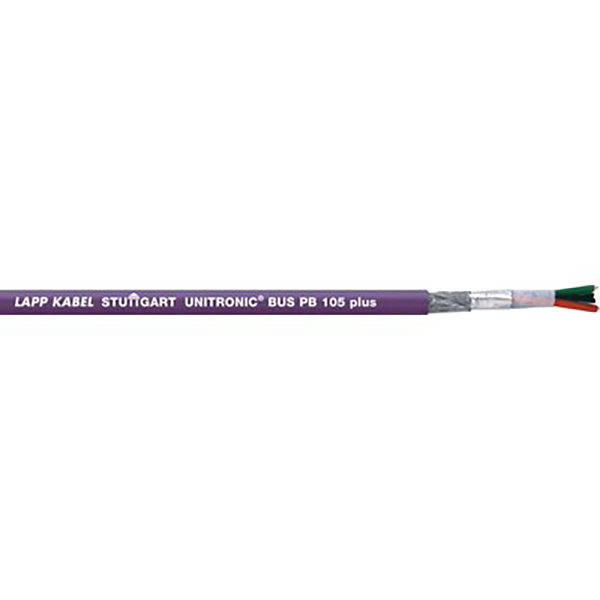

Product Make-up
Stranded conductor, 7-wire, bare
Core insulation: polypropylene (PP)
Overall screening with copper braid and plastic-laminated aluminium foil
Outer sheath: TPE, violet (RAL 4001)
Last Update (17.04.2022)
©2022 Lapp Group - Technical changes reserved
Product Management www.lappkabel.de
You can find the current technical data in the corresponding data sheet.
PN 0456 / 02_03.16
