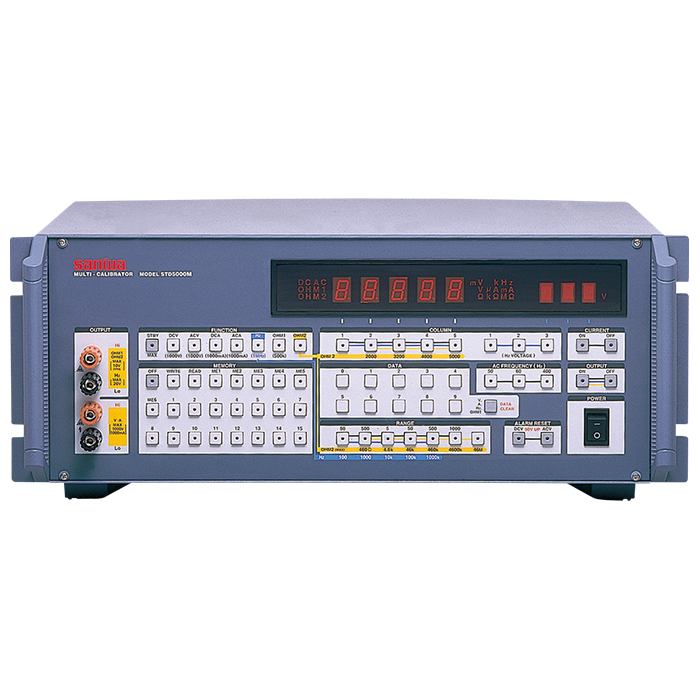

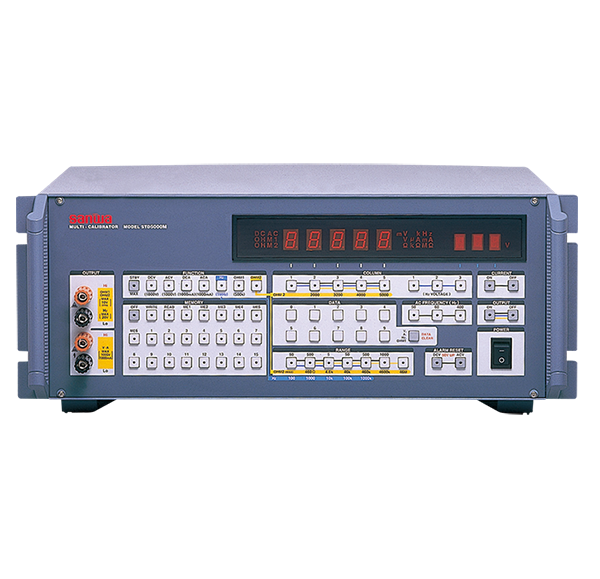

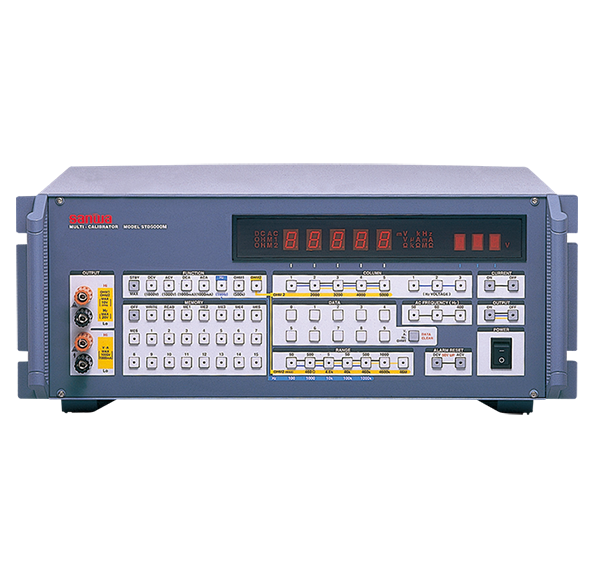

STD5000M Calibrators

Feature :

The STD5000M is a calibrator with soft touch buttons that can generate a desired DC voltage / current, AC voltage / current, resistance, frequency, etc. with a high degree of accuracy and stability. The STD5000M is with a memory function allowing a broad range of uses for the device.

Ranges :

  • Voltage(DC·AC) : 0〜1000V(6 ranges)
  • Current(DC·AC) : 0〜2000mA(6 ranges)
  • Resistance1 : 0〜500kΩ(10Ω steps)
  • Resistance2 : 24 steps fixed resistance value(4 kinds 6 ranges)
  • Hz : 40Hz〜999kHz(5 ranges)


หมายเหตุ : สินค้ารายการนี้ มีศูนย์ บริการในประเทศ ไม่มีบริการติดตั้ง สอนการใช้งานตัวเครื่องฟรี และให้คำแนะนำกรณีมีช่างติดตั้งเอง จัดส่งถึงมือลูกค้าก่อนชำระเงิน ค่าจัดส่งค่าใช้จ่ายอัตตราของผู้ให้บริการรายต่างๆ ตามบิล สำหรับร้านค้าและช่างมีราคา พิเศษ ร้านค้าหรือช่างสามารถสมัครสมาชิกสะสมแต้ม เพื่อแลกของรางวัลได้ที่หน้าเวปไซด์ มีของรางวัลหลายรายการ ( สินค้านี้ซื้อ 1ชิ้น ขึ้นไป ส่งฟรี ) รับตัวแทนจำหน่าย ฟรีข้อมูลสินค้า รับสอนประกอบและตรวจซ่อมฟรี / ไม่มีค่าใช้จ่าย / มีอะไหล่และเครื่องมือในราคาช่าง / มีบริการปรับปรุงเครื่องจักรให้ระบบทำงานเพื่อเพิ่มประสิทธิภาพลดการซ่อมยึดอายุการใช้งาน สินค้านี้ขายยกลังในราคาส่ง ราคาที่เสนอต่อ ชิ้น สินค้านี้ต้องตรวจสอบล่าสุดก่อนส่งถึงมือผู้ใช้งานตามมาตรฐานของผู้ผลิตเพื่อลดปัญหาการเสื่อมคุณภาพจากการจัดเก็บที่ไม่ถูกต้องเป็นเวลานาน

Order tracking

Order production


  • High accuracy 0.03%(DCV DC mA)
    Reliable accuracy is achieved by using the standard voltage IC with a constant-temperature bath for the reference voltage and wire wound resistor and metal film resistor with high tolerance and low temperature coefficient for the resistance element.
  • Calibrates 6 types of functions
    With the calibration elements of 6 functions(DCV, ACV, DCA, ACA, OHM, Hz) incorporated, it can be used for calibrating and maintaining the DMM, DPM (digital pwer meter), circuit tester and industrial instruments.
  • Installs 90 (6x15) output memories
    With 90 (6x15) output memories installed, it is possible to save desired setting.
  • User-friendly speedy operability
    Use of soft-touch push button switches for operation on the panel(except the power switch). Use of semiconductor switches with greater heat resistance and durability for change switches of the circuit, and latch-type relays requiring less electro motive force.
  • With overload protection device
    To enhance security, overload protection in case of low voltage and current generation is performed on the semiconductor circuit, and overload protection in case of medium and high voltage generation(50V or more) is achieved by releasing the output terminal and circuit.
