PC Link 7 Software PC Link software

 Software Feature

• Automatically detects a port connected with a digital multimeter.
• No additional driver installation required with Windows standard USB drivers.
• The retrieval interval can be set by seconds. The shortest reading interval of 0.2 – 0.3 seconds depending on the digital multimeter measuring function.

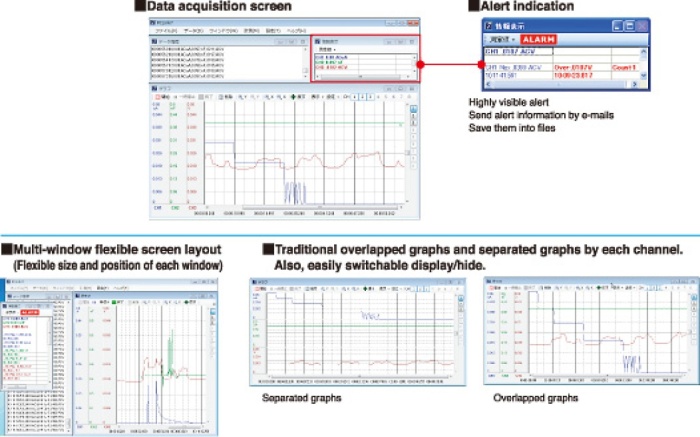

• Allows setting for vertical/horizontal zoom, reading at the cursor position, and Y axis split while retrieving data.
• Allows automatic retrieval by schedule setting.
• Allows data saving into CSV files and sending e-mails of alert information with alarm setting.
• Allows data saving into CSV files with the date and time appended.
• Multi-window, separated graphs by each channel
• Allows automatic e-mail of measurement data.
• Allows limited operations depending on the user with usage restriction function.
• Allows conditional recording by event function.

   Applicable models

 Software

Version

Support OS

 Applicable Model

.NET Framework 3.5 included with Windows10 must be turned on before you install PC Link7 on Windows10.
To turn .NET Framework 3.5 on : Click Control Panel, click Programs, click Turn Windows features on or off, and then select its check box.

MicrosoftWindows are registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Applicable cable type

  Model

•  PC20、PC20TK

•  PC773

•  PC720M、PC700、PC710、PC7000

Specification

•  PC7000、PC720M、PC710、PC700、PC773、PC20、PC20TK

•  Windows 8（32bit/64bit）/Windows 10（32bit/64bit）/Windows 11

•  PentiumIV 1.6G or better

•  1GB or better

•  800×600 or better

   Download HERE

   Note: When upgrading the version which is before Ver.1.41, the setting of PC Link7will return to the factory default setting.
To use the current setting: finding thecurrent setting file (PCLink7_config) at folder (C￥Program Files￥SANWA￥PCLink7),copy this(PCLink7_config) file to My Document PCLink7 folder.
