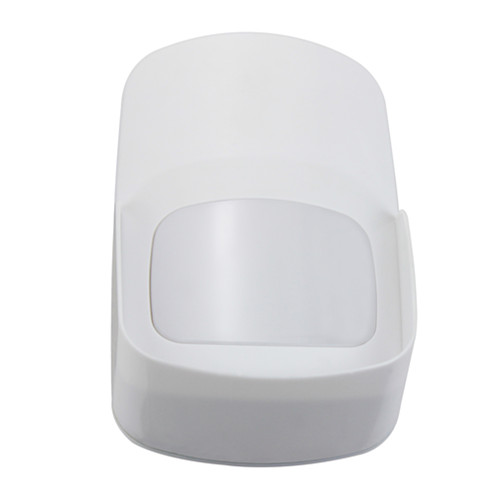

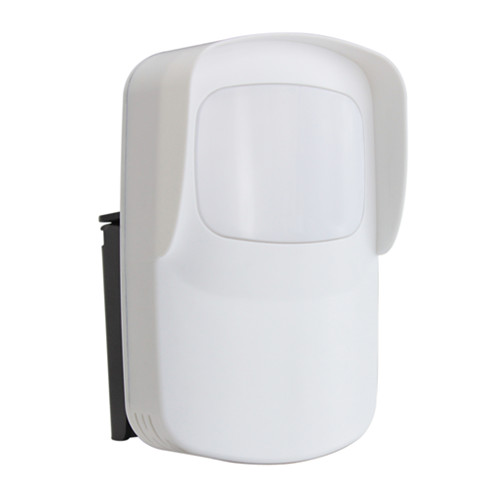

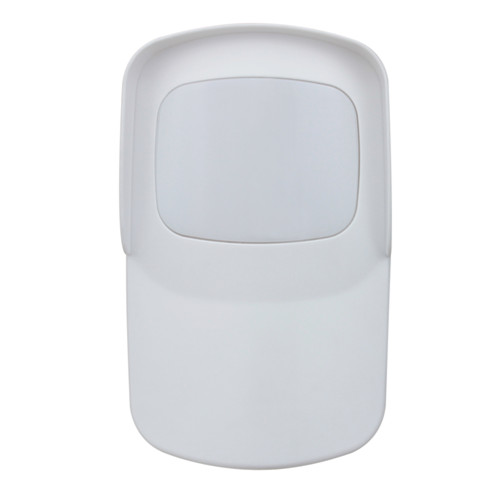

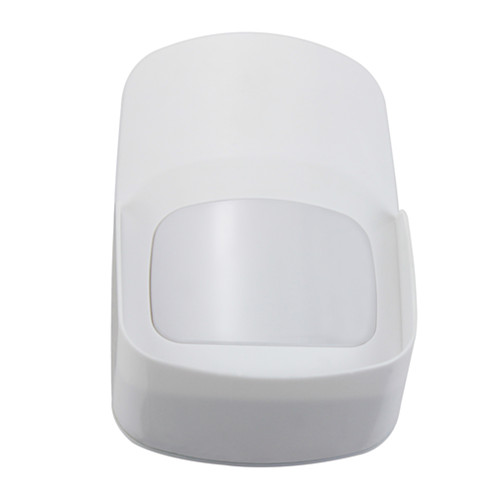

M/WS05.1 KNX Wall Mount Outdoor Microwave Sensor

Overview :

  • KNX Wall Mount Outdoor Microwave Sensor contains four independent logic blocks and one combined logic block. Supported input logical conditions include: Microwave sensing status, brightness value, temperature value, dry contact status and external telegram. The sensor can control lighting, curtain and threshold value.
  • KNX เซนเซอร์ไมโครเวฟติดผนังกลางแจ้ง KNX ประกอบด้วยบล็อกลอจิกอิสระสี่บล็อกและบล็อกลอจิกรวมหนึ่งบล็อก เงื่อนไขตรรกะอินพุตที่รองรับ ได้แก่ สถานะการตรวจจับไมโครเวฟ ค่าความสว่าง ค่าอุณหภูมิ สถานะหน้าสัมผัสแห้ง และโทรเลขภายนอก เซ็นเซอร์สามารถควบคุมแสง ม่าน และค่าธรณีประตูได้


หมายเหตุ : สินค้ารายการนี้ มีศูนย์ บริการในประเทศ มีบริการติดตั้ง สอนการใช้งานฟรี และให้คำแนะนำกรณีมีช่างติดตั้งเอง จัดส่งถึงมือลูกค้าก่อนชำระเงิน ค่าจัดส่งค่าใช้จ่ายอัตตราของผู้ให้บริการรายต่างๆ ตามบิล สำหรับร้านค้าและช่างมีราคา พิเศษ ร้านค้าหรือช่างสามารถสมัครสมาชิกสะสมแต้ม เพื่อแลกของรางวัลได้ที่หน้าเวปไซด์ มีของรางวัลหลายรายการ ( สินค้านี้ซื้อ 1ชิ้น ขึ้นไป ส่งฟรี ) รับตัวแทนจำหน่าย ฟรีข้อมูลสินค้า รับสอนประกอบและตรวจซ่อมฟรี / ไม่มีค่าใช้จ่าย / มีอะไหล่และเครื่องมือในราคาช่าง / มีบริการปรับปรุง อาคาร, เครื่องจักรเพื่อให้มีประสิทธิภาพในการประหยัดพลังงาน ให้ระบบทำงานเพื่อเพิ่มประสิทธิภาพลดการซ่อมยึดอายุการใช้งาน สินค้านี้ขายยกลังในราคาส่ง ราคาที่เสนอต่อ ชิ้น สินค้านี้ต้องตรวจสอบล่าสุดก่อนส่งถึงมือผู้ใช้งานตามมาตรฐานของผู้ผลิตเพื่อลดปัญหาการเสื่อมคุณภาพจากการจัดเก็บที่ไม่ถูกต้องเป็นเวลานาน

KNX Wall-Mount Outdoor Microwave Sensor

 Feature

  • With 2CH constant brightness control function, the sensor supports 4 preset constant values and forced operationdimming.
  • 5 logic blocks with 10 target output for each and supports dry contacts and external telegram locking/unlocking, ordelay unlocking. Telegram locking/unlocking can be set to send on/off telegram.
  • Control types: Switch control, Absolute dimming control, Curtain control, Alarm control, Percentage control , Sequence control, Scene control, String(14 bytes) control, Logic combination control.
  • 5 logical condition sources: Microwave sensing status, brightness value, temperature value, dry contact statusand external telegram.
  • 2 logical relations: AND, OR
  • 2 working modes: Single mode and Master & Slave mode.
  • 2 dry contact input interfaces can wok as dry contact or LED indicators. The control types of dry contact targetoutput can be set as switch, dimming and scene.
  • The logic validity can be set through external telegram input.
  • The sensor can be set to automatic or semi-automatic mode.

Product Parameter

 Basic Parameters

External Environment

Specifications

  • Working voltage 21~30V DC
  • Working current 20mA/30V DC
  • Communication KNX
  • Cable diameter of KNX terminal 0.6 - 0.8mm
  • Microwave detection range Φ28m (Installation height:3m)
  • Temperature detection range -30°C~70°C
  • Humidity detection range 20~95%RH
  • Brightness detection range 0~35000LUX
  • Working temperature -5℃~45℃
  • Working relative humidity ≤90%
  • Storage temperature -20℃~60℃
  • Storage relative humidity ≤93%





  • Dimensions 126×78×114(mm)
  • Net weight 360g
  • Housing material: ASA, stainless steel

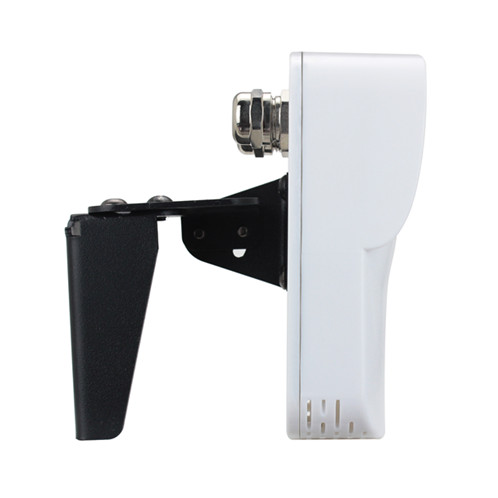

  • Installation: Wall mount
  • Protection rating (Compliant with EN 60529): IP54
