M/US05.1 KNX Mini Ultrasonic Sensor

Overview :

  • KNX Mini Ultrasonic Sensor contains four independent logic blocks and one combined logic block. The logic inputs include ultrasonic sensor status, brightness value, temperature and external telegrams. Depending on the user's needs, the sensor can be set to either master-slave mode or single mode, etc.
  • KNX Mini Ultrasonic Sensor ประกอบด้วยบล็อกลอจิกอิสระสี่บล็อกและบล็อกลอจิกรวมหนึ่งบล็อก อินพุตลอจิกประกอบด้วยสถานะเซ็นเซอร์อัลตราโซนิก ค่าความสว่าง อุณหภูมิ และโทรเลขภายนอก เซ็นเซอร์สามารถตั้งค่าเป็นโหมดมาสเตอร์ทาสหรือโหมดเดี่ยว ทั้งนี้ขึ้นอยู่กับความต้องการของผู้ใช้


หมายเหตุ : สินค้ารายการนี้ มีศูนย์ บริการในประเทศ มีบริการติดตั้ง สอนการใช้งานฟรี และให้คำแนะนำกรณีมีช่างติดตั้งเอง จัดส่งถึงมือลูกค้าก่อนชำระเงิน ค่าจัดส่งค่าใช้จ่ายอัตตราของผู้ให้บริการรายต่างๆ ตามบิล สำหรับร้านค้าและช่างมีราคา พิเศษ ร้านค้าหรือช่างสามารถสมัครสมาชิกสะสมแต้ม เพื่อแลกของรางวัลได้ที่หน้าเวปไซด์ มีของรางวัลหลายรายการ ( สินค้านี้ซื้อ 1ชิ้น ขึ้นไป ส่งฟรี ) รับตัวแทนจำหน่าย ฟรีข้อมูลสินค้า รับสอนประกอบและตรวจซ่อมฟรี / ไม่มีค่าใช้จ่าย / มีอะไหล่และเครื่องมือในราคาช่าง / มีบริการปรับปรุง อาคาร, เครื่องจักรเพื่อให้มีประสิทธิภาพในการประหยัดพลังงาน ให้ระบบทำงานเพื่อเพิ่มประสิทธิภาพลดการซ่อมยึดอายุการใช้งาน สินค้านี้ขายยกลังในราคาส่ง ราคาที่เสนอต่อ ชิ้น สินค้านี้ต้องตรวจสอบล่าสุดก่อนส่งถึงมือผู้ใช้งานตามมาตรฐานของผู้ผลิตเพื่อลดปัญหาการเสื่อมคุณภาพจากการจัดเก็บที่ไม่ถูกต้องเป็นเวลานาน

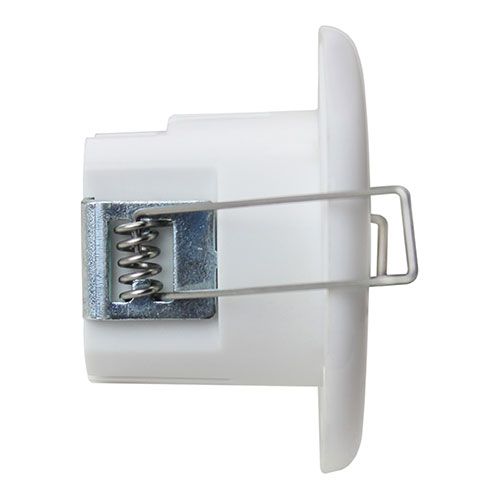

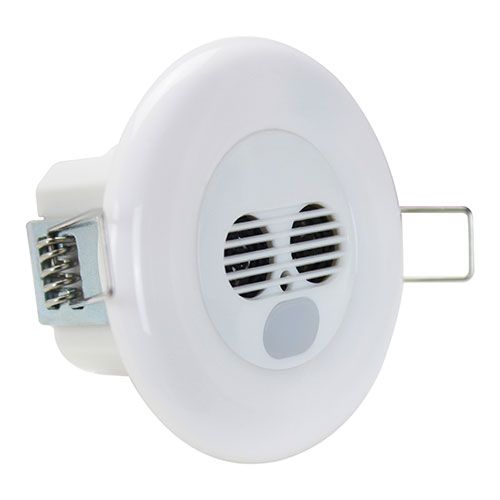

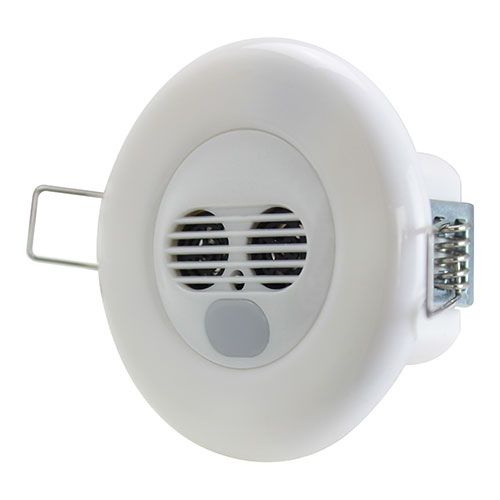

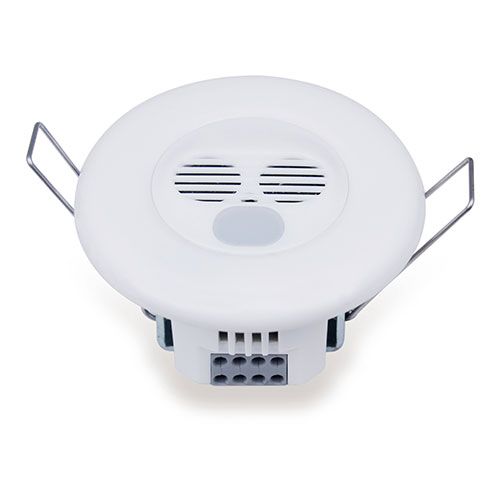

KNX Ceiling-Mount Mini Ultrasonic Sensor

 Feature

  • With 2CH lighting control, 4 sections of brightness and delay time can be set in dimming output. With gradually dimming effect, the sensor supports automatic or semi-automatic mode. Telegram locking/unlocking and delay time can be set.
  • With 2CH constant brightness control, dimming values and forced operation can be set.
  • The sensor has 5 logic blocks and each block contains 10 object outputs. Telegram locking/unlocking and delay time can be set.
  • Control types: Switch control, Absolute dimming control, Shutter control, Alarm control, Percentage control , Sequence control, Scene control, String(14 bytes) control, Threshold control, Logic combination control.
  • Logic inputs: Ultrasonic sensing status, brightness value, temperature and external telegrams.
  • 2 logical relations: AND, OR
  • 2 working modes: Single mode and master / slave mode.
  • The logic validity can be set by external telegram so as to ensure that end users can reset the logics.

KNX Ceiling-Mount Mini Ultrasonic Sensor Parameters

Basic Parameters

External Environment

Specifications

  • Working voltage 21~30V DC
  • Working current 10mA/30V DC
  • Communication KNX

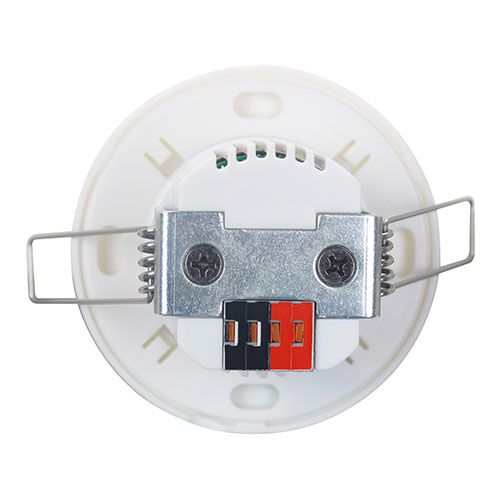

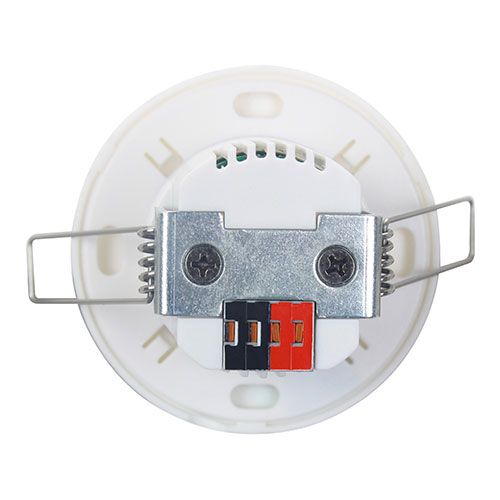

  • Cable diameter of KNX terminal 0.6 - 0.8mm
  • PIR detection range Φ8m (Installation height:3m)
  • Temperature detection range -30°C~70°C
  • Brightness detection range 0~1200LUX
  • Working temperature -5℃~45℃
  • Working relative humidity ≤90%
  • Storage temperature -20℃~60℃
  • Storage relative humidity ≤93%




  • Dimensions Φ63×38 (mm)
  • Net weight 42.4g
  • Housing material ABS

Installation

  • Ceiling-mounted/Flush-mounted
  • Protection rating (Compliant with EN 60529) IP20
