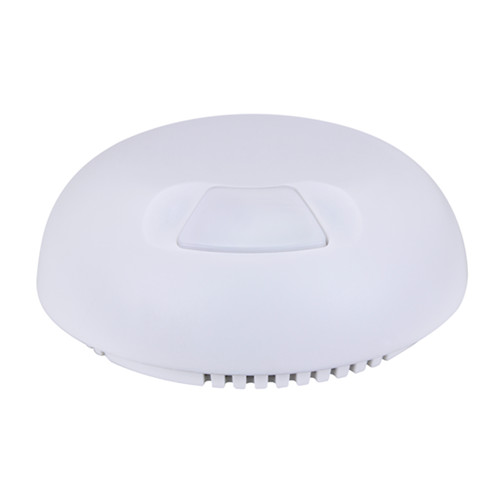

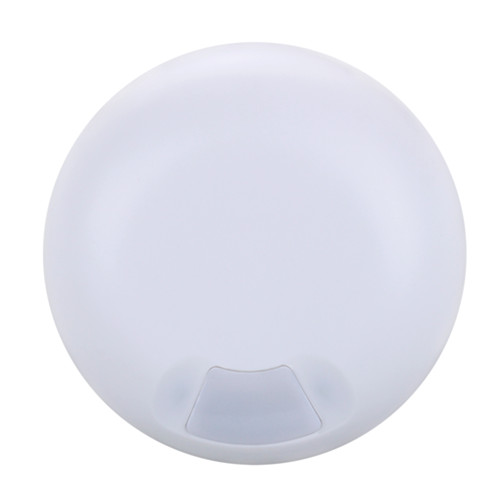

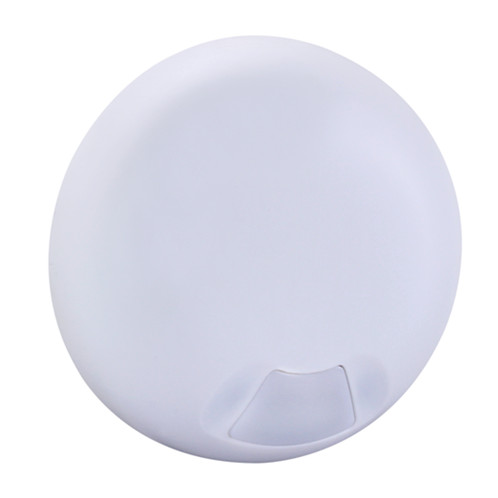

M/WS05.1 KNX Ceiling Mount Indoor Microwave Sensor

Order tracking

SKU : M/WS05.1-Ceiling

Price

350.00 USD


375.00 USD

 (-7%)
Quantity to buy
Total 350.00 USD

Do not have enough stock

Out of stock

M/WS05.1 KNX Ceiling Mount Indoor Microwav

Overview :

  • KNX Ceiling Mount Indoor Microwave Sensor contains four independent logic blocks and one combined logic block. The logic inputs include microwave sensor status, brightness value, temperature, dry contact input and external telegrams, which enables the control of lighting, curtains, thresholds, etc.
  • KNX เซนเซอร์ไมโครเวฟในร่มแบบติดตั้งบนเพดานประกอบด้วยบล็อกลอจิกอิสระสี่บล็อกและบล็อกลอจิกรวมหนึ่งบล็อก อินพุตลอจิกประกอบด้วยสถานะเซ็นเซอร์ไมโครเวฟ ค่าความสว่าง อุณหภูมิ อินพุตหน้าสัมผัสแบบแห้ง และโทรเลขภายนอก ซึ่งช่วยให้สามารถควบคุมแสง ผ้าม่าน ธรณีประตู และอื่นๆ


หมายเหตุ : สินค้ารายการนี้ มีศูนย์ บริการในประเทศ มีบริการติดตั้ง สอนการใช้งานฟรี และให้คำแนะนำกรณีมีช่างติดตั้งเอง จัดส่งถึงมือลูกค้าก่อนชำระเงิน ค่าจัดส่งค่าใช้จ่ายอัตตราของผู้ให้บริการรายต่างๆ ตามบิล สำหรับร้านค้าและช่างมีราคา พิเศษ ร้านค้าหรือช่างสามารถสมัครสมาชิกสะสมแต้ม เพื่อแลกของรางวัลได้ที่หน้าเวปไซด์ มีของรางวัลหลายรายการ ( สินค้านี้ซื้อ 1ชิ้น ขึ้นไป ส่งฟรี ) รับตัวแทนจำหน่าย ฟรีข้อมูลสินค้า รับสอนประกอบและตรวจซ่อมฟรี / ไม่มีค่าใช้จ่าย / มีอะไหล่และเครื่องมือในราคาช่าง / มีบริการปรับปรุง อาคาร, เครื่องจักรเพื่อให้มีประสิทธิภาพในการประหยัดพลังงาน ให้ระบบทำงานเพื่อเพิ่มประสิทธิภาพลดการซ่อมยึดอายุการใช้งาน สินค้านี้ขายยกลังในราคาส่ง ราคาที่เสนอต่อ ชิ้น สินค้านี้ต้องตรวจสอบล่าสุดก่อนส่งถึงมือผู้ใช้งานตามมาตรฐานของผู้ผลิตเพื่อลดปัญหาการเสื่อมคุณภาพจากการจัดเก็บที่ไม่ถูกต้องเป็นเวลานาน

KNX Ceiling-Mount Indoor Microwave Sensor

 Feature

  1. With 2CH constant brightness control, 4 dimming values and forced operation can be set.
  2. The sensor has 5 logic blocks and each block contains 10 object outputs. Dry contact and telegram locking/unlocking and delay time can be set.
  3. Control types: Switch control, Absolute dimming control, Shutter control, Alarm control, Percentage control , Sequence control, Scene control, String(14 bytes) control, Threshold control, Logic combination control.
  4. Logic inputs: Microwave sensor status, brightness value, temperature , dry contact input and external telegrams.
  5. 2 logical relations: AND, OR
  6. 2 working modes: Single mode and master / slave mode.
  7. 2CH dry contact can be set as dry contact and LED status display and the operation function can be set as switch control, dimming control, scene control and percentage control.
  8. The logic validity can be set by external telegram.

KNX Ceiling-Mount Indoor Microwave Sensor Parameters

  • Working voltage 21~30V DC
  • Working current 17mA/30V DC
  • Communication KNX
  • Cable diameter of KNX terminal 0.6 - 0.8mm
  • Microwave sensing range Φ16m (Installation height: 3m)
  • Temperature detection range -30°C~70°C
  • Brightness detection range 0~15000LUX
  • Working temperature -5℃~45℃
  • Working relative humidity ≤90%
  • Storage temperature -20℃~60℃
  • Storage relative humidity ≤93%



  • Dimensions Φ84.5×32 (mm)
  • Net weight 67.5g
  • Housing material ABS
  • Installation
  • Ceiling mount
  • Protection rating (Compliant with EN 60529) IP20
