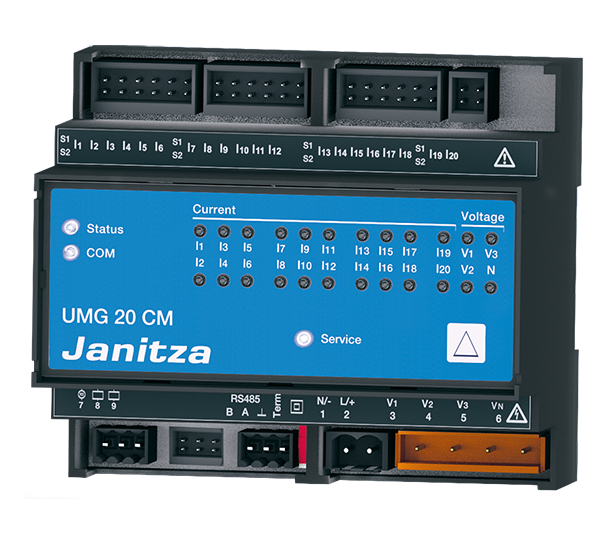

UMG 20CM Multichannel operating current and residual current measurement device

SKU : UMG 20CM

Price

1,400.00 USD


1,450.00 USD

 (-3%)
Quantity to buy
Total 1,400.00 USD

Do not have enough stock

Out of stock

UMG 20CM Multichannel operating

Current and residual current measurement device

Feature :

20 Channel Branch Circuit Monitoring Device with RCM

  • การได้มาซึ่งกระแสการดำเนินงานอย่างต่อเนื่อง การตรวจสอบกระแสไฟย้อนหลัง ข้อความในกรณีที่กระแสไฟเกินที่กำหนด การจัดหาพลังงานเพื่อการจ่ายกระแสไฟที่สมบูรณ์ การบัญชีศูนย์ต้นทุน ความโปร่งใสของต้นทุนพลังงาน การใช้โครงสร้างพื้นฐานด้านไอทีอย่างมีประสิทธิภาพมากขึ้น PDU ในศูนย์ข้อมูล การเพิ่มขึ้นของแหล่งจ่ายไฟที่มีความพร้อมใช้งานสูง
  • Continuous acquisition of the operating currents Permanent residual current monitoring Messages in the event of the nominal current being exceeded Energy acquisition for complete current distribution Cost centre accounting Transparency of energy costs More effective use of IT infrastructure PDUs in data centres Increase of high availability power supply


หมายเหตุ : สินค้ารายการนี้ มีศูนย์ บริการในประเทศ,มีอะไหล่ตู้อบราคาส่งพร้อมช่างผู้ชำนาญ มีบริการติดตั้ง สอนการใช้งานฟรี และให้คำแนะนำกรณีมีช่างติดตั้งเอง จัดส่งถึงมือลูกค้าก่อนชำระเงิน ค่าจัดส่งค่าใช้จ่ายอัตตราของผู้ให้บริการรายต่างๆ ตามบิล สำหรับร้านค้าและช่างมีราคา พิเศษ ร้านค้าหรือช่างสามารถสมัครสมาชิกสะสมแต้ม เพื่อแลกของรางวัลได้ที่หน้าเวปไซด์ มีของรางวัลหลายรายการ ( สินค้านี้ซื้อ 1เครื่อง ขึ้นไป ส่งฟรี ) รับตัวแทนจำหน่าย ฟรีข้อมูลสินค้า รับสอนประกอบและตรวจซ่อมฟรี / ไม่มีค่าใช้จ่าย / มีอะไหล่และเครื่องมือในราคาช่าง / มีบริการปรับปรุง อาคาร, เครื่องจักรเพื่อให้มีประสิทธิภาพในการประหยัดพลังงาน ให้ระบบทำงานเพื่อเพิ่มประสิทธิภาพลดการซ่อมยึดอายุการใช้งาน สินค้านี้ขายยกลังในราคาส่ง ราคาที่เสนอต่อ ชิ้น สินค้านี้ต้องตรวจสอบล่าสุดก่อนส่งถึงมือผู้ใช้งานตามมาตรฐานของผู้ผลิตเพื่อลดปัญหาการเสื่อมคุณภาพจากการจัดเก็บที่ไม่ถูกต้องเป็นเวลานาน

Order tracking

The system for smart people

  • Compact nature of the system
  • Can be retrofitted to existing systems
  • Modbus RTU directly on board
  • State indication per channel (LEDs)
  • Name stored per channel in the measurement device
  • Wide range power adapter (90 – 276 V ... AC / DC)
  • Integration in the GridVis® software
  • Diverse current transformer variants for the individual application
  • Standard measured values: V, A, kW, kVA, kVar, kWh (variable list)
  • Scalability of the system
  • Measurement variants:
    • Three-phase and single-phase energy measurement
    • RCM measurement three-phase and single-phase
  • High sampling rate 20,000 Hz
  • Current transformer connection monitoring (i.e. wire break will be detected)
  • Harmonics analysis up to 63rd harmonic via analysis channel
  • Saving of minimum and maximum values with time stamp


 RCM and energy measurement device in a single unit

Power supply without drop-outs

  • 20 current measurement channels +/- 0.5 %
  • 4 voltage measurement channels +/- 0.5 %
  • Internal RS485 interface (Modbus as Slave)
  • 20 LEDs – One LED for each current channel (Green = o.k., Yellow = Warning; Red = Nominal current exceed)
  • Measurement range of operation current with burden up to 63 A with closed or split core current transformers (standard measured values: V, A, kW, kVA, kVar, kWh)

  • Permanent monitoring and logging of processes in TN-S or TN-C-S systems
  • Simple parameterisation and operation of the RCM measurement
  • Automatic reporting in the event of problems enables a rapid initiation of countermeasures
  • Comprehensive diagnostics increase safety and efficiency of a company
