LZ-12-24 Series DC to DC LED Driver

SKU : LZ-12-24

Product not found

Price

13.00 USD

15.00 USD

Quantity to buy
Total

Do not have enough stock

Out of stock

LZ-12-24 Series DC to DC LED Driver 1W - 150W

Feature :

  • Waterproof input : 12-24VDC / AC Constant current 300mA - 4500mA. for led lighting
  • Output : 12 - 50VDC. / 300mA. -4500mA.

หมายเหตุ : สินค้านี้ มีศูนย์ บริการในประเทศไทย สินค้านี้มีบริการจัดส่งถึงมือลูกค้าพร้อมชำระเงิน /.พร้อมบริการหลังการขาย / สินค้ามีราคาตัวแทนและราคาช่าง สินค้ารับประกัน 3ปี / รับตัวแทนจำหน่ายสินค้าราคาส่งและช่างบริการทุกพื้นที่ รับปรับปรุงระบบใหม่/เก่า ให้รองรับการทำงานหนักเพื่อยึดอายุการใช้งาน ลดค่าซ่อม ลดค่าใช้จ่าย ประหยัดพลังาน เพิ่มประสิทธิภาพการทำงานผ่านระบบ ควบคุมที่ลูกค้าต้องการ / ฝึกสอน การใช้งานฟรี / ใช้งานง่ายมี VDO. สอนการใช้งานทุกขั้นตอน

Order tracking

Large stock Led drivers  Welcome to send your inquiry Input 12-24V DC Constant current LED drivers

  • ไดร์เวอร์ LED แบบคงที่แบบกันน้ำแบบมืออาชีพจาก tresun ยอมรับคำสั่งซื้อ OEM.
  • แรงดันไฟฟ้าขาเข้าเต็มช่วงระหว่างประเทศและใช้กันอย่างแพร่หลาย
  • การป้องกัน: ไฟฟ้าลัดวงจร/เกินพิกัด/แรงดันเกิน/ความร้อนสูงเกินไป
  • ระบายความร้อนด้วยอากาศตามธรรมชาติ โหลดเต็ม 100% อายุ
  • พลังงานที่ไม่ได้ใช้งาน < 1.1W
  • ส่วนประกอบคุณภาพสูงที่เลือกและทดสอบ ตัวเก็บประจุทั้งหมดเป็นอิเล็กโทรไลต์ อายุการใช้งานยาวนาน 105 °C
  • ความจุไฟกระชาก 300VAC: 5 วินาที อุณหภูมิในการทำงานสูงถึง 70 °C
  • ผ่านการทดสอบการสั่นสะเทือน 5G ประสิทธิภาพสูง อายุการใช้งานยาวนาน และความน่าเชื่อถือสูง
  • ใบรับรอง CE เป็นไปตามมาตรฐาน RoHSการป้องกันความร้อนเกิน
  • ไฟฟ้าลัดวงจร และโหลดเกินด้วยการตั้งค่าตัวเอง
  • ระลอกคลื่นรุนแรงและเสียงต่ำ
  • รับประกัน 2-5 ปีสำหรับไดรเวอร์ LED DC to DC เอาต์พุตกระแสคงที่ ทุกรุ่น
  • Professional waterproof Constant Current LED Driver from tresun, accept OEM. orders
  • International full-range input voltage and widely used
  • Protection: shortcircuit / overload / overvoltage / overheat
  • Natural air cooled, 100% full load aged
  • Idle power < 1.1W
  • High quality components choosed and tested, all capacitors are 105°C long-life electrolytic
  • Capacity of surge of 300VAC: 5 seconds, working temperature up to 70°C
  • Passes 5G vibration test, high efficiency, long life & high reliability
  • With CE certificate, complied RoHS standard
  • Over-heat, short-circuit & over-load protection with self-setting
  • Rigorous ripple and low noise
  • 2-5-year warranty for 40w led driver Alls mA constant current output


DC to DC  LED Driver  IP 67  Specification & Model

Waterproof boost driver DC12-24V input constant current led driver

1W -150W 300mA-45000mA IP65-IP67 Wholesale for LED street light

Power   Input Voltage Output Voltage   Output Current  Efficiency Waterproof   Size (L*W*H) Weight  Remark
 4-9*1W  DC12V 12-32V  300mA±3%  90%   Yes  55*25*20mm.  50g. 7CM. Cable
 10W(3S3P) DC12-24V   9-12V  900mA±3% 90%  Yes   55*25*20mm.  50g   7CM Cable
 5-12*1W  AC/DC12V 15-42V  300mA±3%   90%  Yes  85*24*24mm. 70g   7CM Cable
 9-12*1W AC/DC24V   27-42V  300mA±3% 90%   Yes   85*24*24mm.  70g 7CM Cable
 6-18*1W  AC/DC12V  18-65V  300mA±3% 90%   Yes   102*29*19mm. 100g  9CM Cable
 10-25*1W AC/DC24V   30-90V 300mA±3%  90%   Yes  102*29*19mm.   100g 9CM Cable
20W-A(10S2P)   12-24VDC 30-36V   600mA±3% 90%  Yes   105*36*25mm.  150g   Half Aluminium
 20W-B(10S2P) 12-24VAC/DC  30-36V    600mA±3% 90%  Yes    102*29*19mm.  100g Half Aluminium
28W(14S2P) DC12-24V   42-50V  600mA±3%  90%  Yes    105*36*27mm.  150g  Half Aluminium

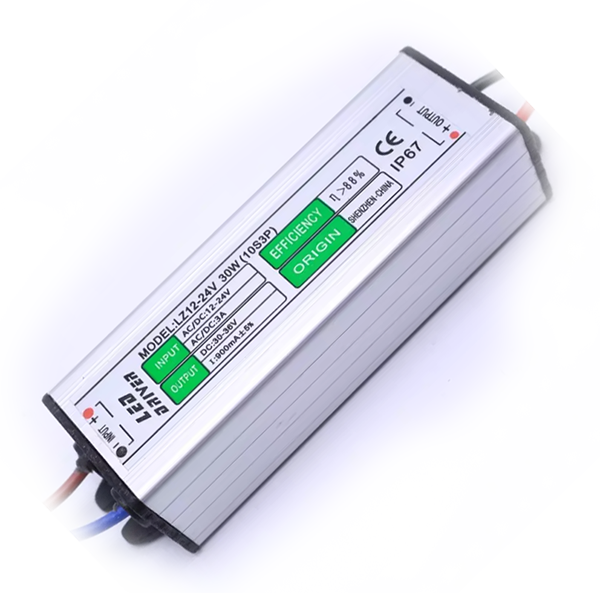

30W-A(10S3P)  DC12-24V   30-36V   900mA±3% 90%  Yes   105*36*27mm.  150g  Half Aluminium
 30W-B(10S3P)  DC12-24V  30-36V   600mA±3%   90%  Yes 105*36*27mm.   150g Half Aluminium
 42W(14S3P) DC12-24V   42-50V  900mA±3%  90%  Yes  100*42*31mm.  220g  Aluminium Case

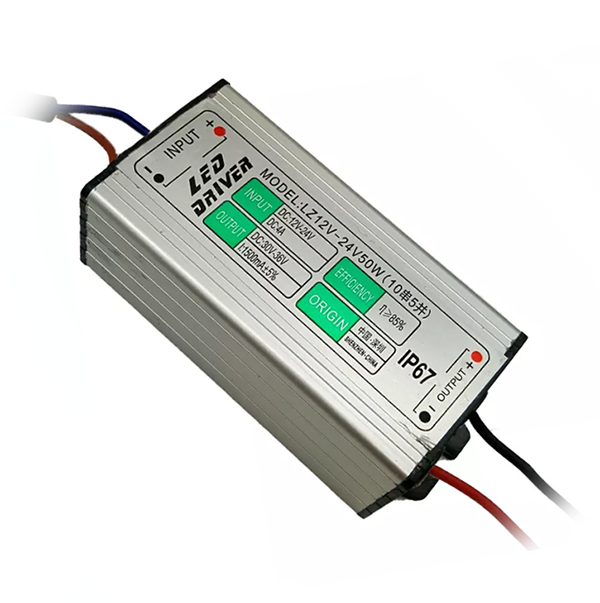

 50W(10S5P)  DC12-24V 30-36V    1500mA±3%  90% Yes   100*42*31mm.  220g Half Aluminium
 56W(14S4P)  DC12-24V 42-50V    1200mA±3% 90%  Yes   148*49*38mm.  440g Aluminium Case
 60W(10S6P) DC12-24V  30-36V   1800mA±3%  90%   Yes  162*50*40mm.  490g  Aluminium Case
 70W(10S7P) DC12-24V  30-36V   2100mA±3%  90%   Yes  168*49*38mm. 580g   Aluminium Case
 70W(14S5P) DC12-24V  42-50V   1500mA±3%   90% Yes  168*49*38mm.   580g  Aluminium Case
 80W(10S8P)  DC12-24V 30-36V   2400mA±3%  90%  Yes  168*49*38mm.  580g   Aluminium Case
 84W(14S6P)  DC12-24V 42-50V   1800mA±3%  90%   Yes 168*49*38mm.  580g   Aluminium Case
 98W(14S7P)  DC12-24V 42-50V   2100mA±3%   90%  Yes 153*66*43mm.  760g  Aluminium Case
 100W(10S10P)  DC12-24V 30-36V    3000mA±3%  90%  Yes  153*66*43mm.  760g  Aluminium Case
 120W(10S12P) DC12-24V  30-36V    3600mA±3%  90%  Yes 219*66*44mm.   1250g  Aluminium Case
 150W(10S15P) DC12-24V  30-36V   4500mA±3%   90%  Yes  219*66*44mm  1250g  Aluminium Case

           Brochure & Picture Download :
