600W Universal Golf Cart Battery Wireless Charger Receiver Coil

SKU : LCY600

Price

850.00 USD


900.00 USD

 (-6%)
Quantity to buy
Total 850.00 USD

Do not have enough stock

Out of stock

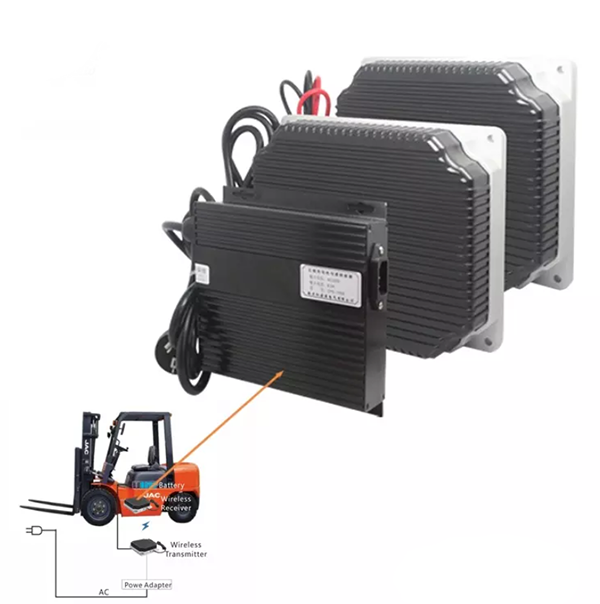

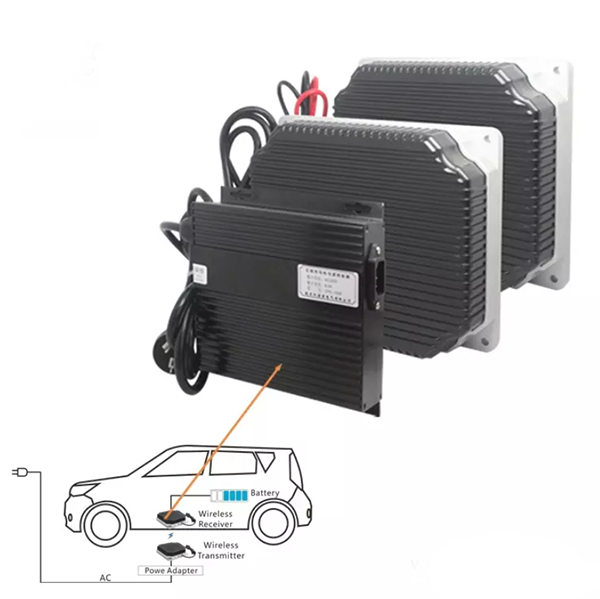

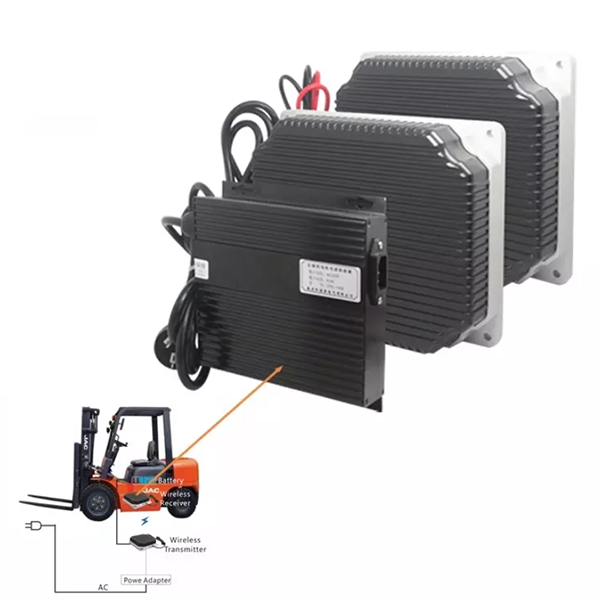

Universal Golf Cart Battery Wireless Charger Receiver

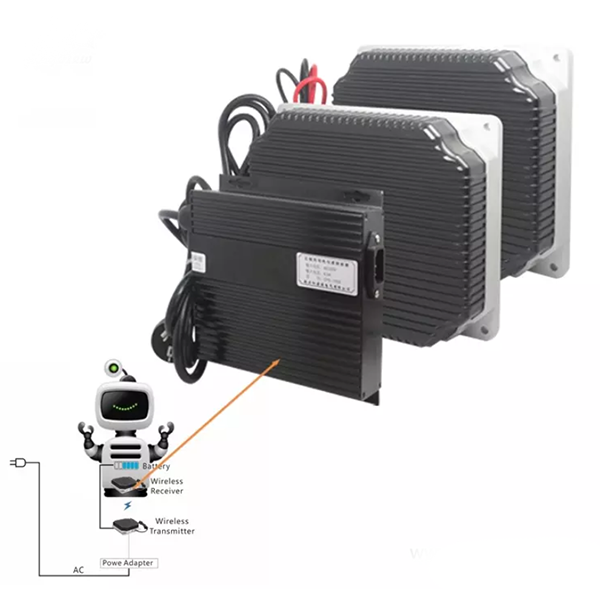

Coil Mobile Robot Agv Wireless Charger Receiver

Essential details :

  • Place of Origin: Guangdong, China or OEM. Thailand / Brand Name: Leynew or Energy Power / Use: Standard Battery, Industrial, electric car Output : 24V/10A, 36V/7A, 60V/5A, 110-220V
  • Output Power: 300W, 500W, 600W, 1000W / Input : 110V-220V Private Mold: Yes Multi-function integrated: with power / Function: providing non-contact charging for various mobile robots
  • Name: wireless charger Input Voltage: DC48V / Power : 300W - 1000W / Warranty: 2 Years Color: Black White / Feature: High Speed

หมายเหตุ : สินค้ารายการนี้ มีศูนย์ บริการในประเทศ,มีอะไหล่เครื่องราคาส่งพร้อมช่างผู้ชำนาญ มีบริการติดตั้ง สอนการใช้งานฟรี และให้คำแนะนำกรณีมีช่างติดตั้งเอง จัดส่งถึงมือลูกค้าก่อนชำระเงิน ค่าจัดส่งค่าใช้จ่ายอัตตราของผู้ให้บริการรายต่างๆ ตามบิล สำหรับร้านค้าและช่างมีราคา พิเศษ ร้านค้าหรือช่างสามารถสมัครสมาชิกสะสมแต้ม เพื่อแลกของรางวัลได้ที่หน้าเวปไซด์ มีของรางวัลหลายรายการ ( สินค้านี้ซื้อ 1 ระบบ ขึ้นไป ส่งฟรี ) รับตัวแทนจำหน่าย ฟรีข้อมูลสินค้า รับสอนประกอบและตรวจซ่อมฟรี ในเวลารับประกัน 2 ปี / ไม่มีค่าใช้จ่าย / มีอะไหล่และเครื่องมือในราคาช่าง / มีบริการปรับปรุง ระบบงานเพื่อให้มีประสิทธิภาพในการประหยัดพลังงาน ให้ระบบทำงานเพื่อเพิ่มประสิทธิภาพลดการซ่อมยึดอายุการใช้งาน สินค้านี้ขายโครงการหรือร้านค้าในราคาส่ง ราคาที่เสนอต่อ ชิ้น ราคาที่เสนอยังไม่รวมภาษีมูลค่าเพิ่ม และสัญญาบริการอื่นๆ ตามใบเสนอราคา สินค้านี้ต้องตรวจสอบล่าสุดก่อนส่งถึงมือผู้ใช้งานตามมาตรฐานของผู้ผลิตเพื่อลดปัญหาการเสื่อมคุณภาพจากการจัดเก็บที่ไม่ถูกต้องเป็นเวลานาน

Order tracking

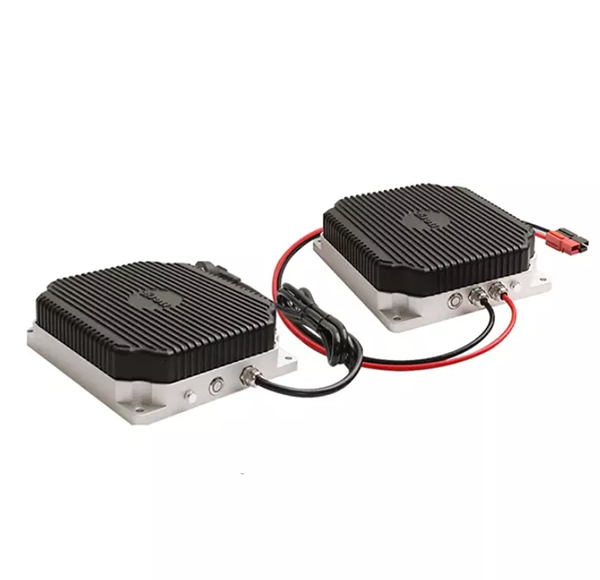

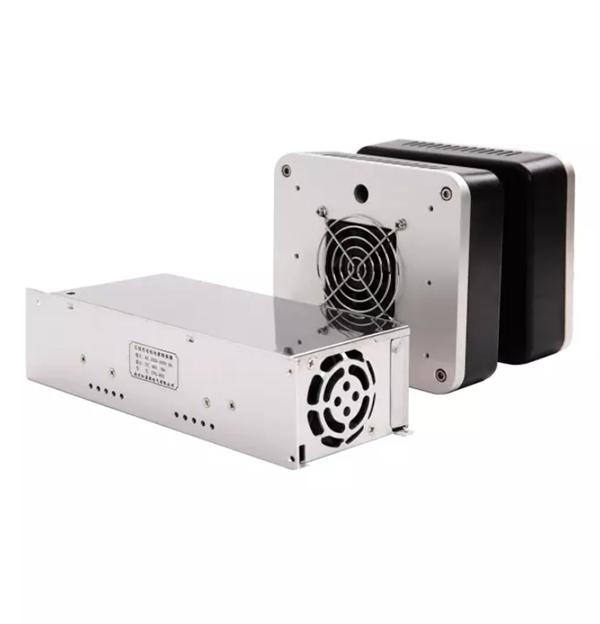

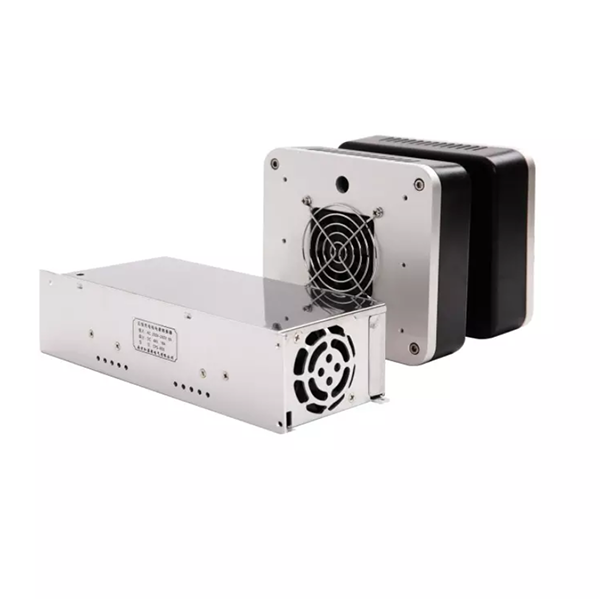

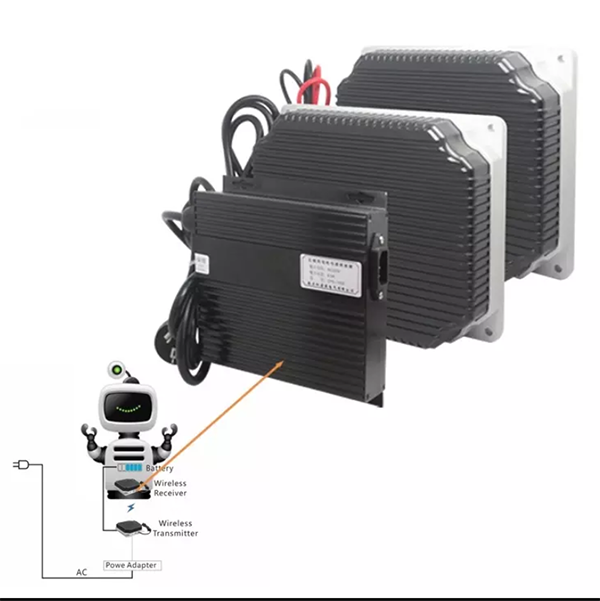

Battery Wireless Charger Receiver Coil Mobile Robot Agv Wireless Charger Receiver

 Wireless charger product, suitable for providing non-contact charging for various mobile robots or devices, which can realize the battery charging process is fully automated, easy to use, and simple to maintain.



Product Spec.

 Item

Motor Data

 Model   LYC-300/500/600/1000
 Output voltage   24V(12.0~30.0V),36V(30~45V),48V(45~60V )
 Output current   5~10A,3~7A,3~5A
 Voltage Accuracy  ± 0.3%
Stability accuracy   ± 1.0%
Voltage ripple   ≤0.3%
Wireless efficiency   ≥85%
 Charging distance Air gap length: 0mm ~ 20mm;X axis deviation: ± 20mm; Y-axis deviation: ± 20mm
 Charging frequency  10 ~ 50kHz (self-tuning)
Ambient temperature  -20 ~ + 50 ℃
Storage temperature  -30 ~ + 60 ℃
Insulation resistance  ≥100MΩ
 Weight  About 5kg
 Dimensions  170 (W) x 150 (H) x 25 (D) mm
