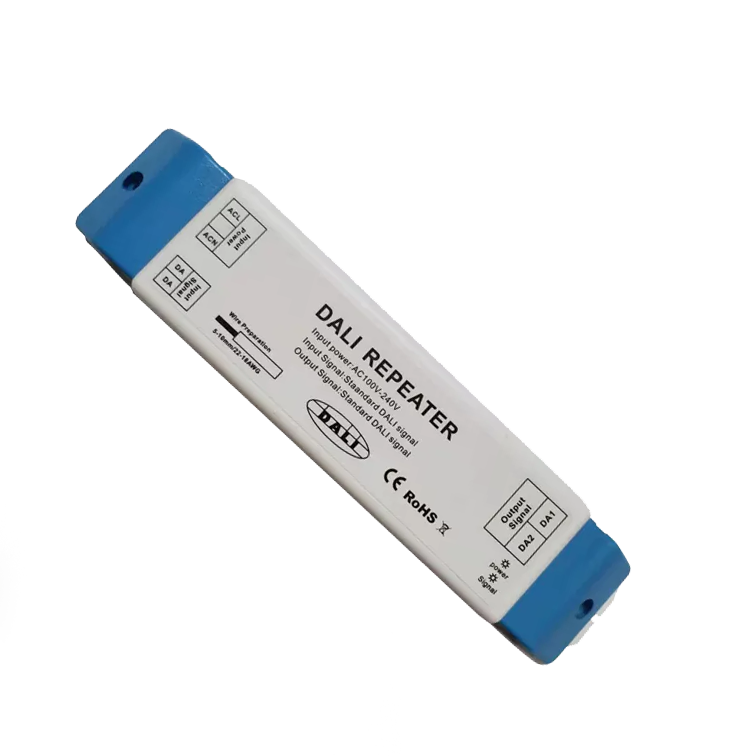

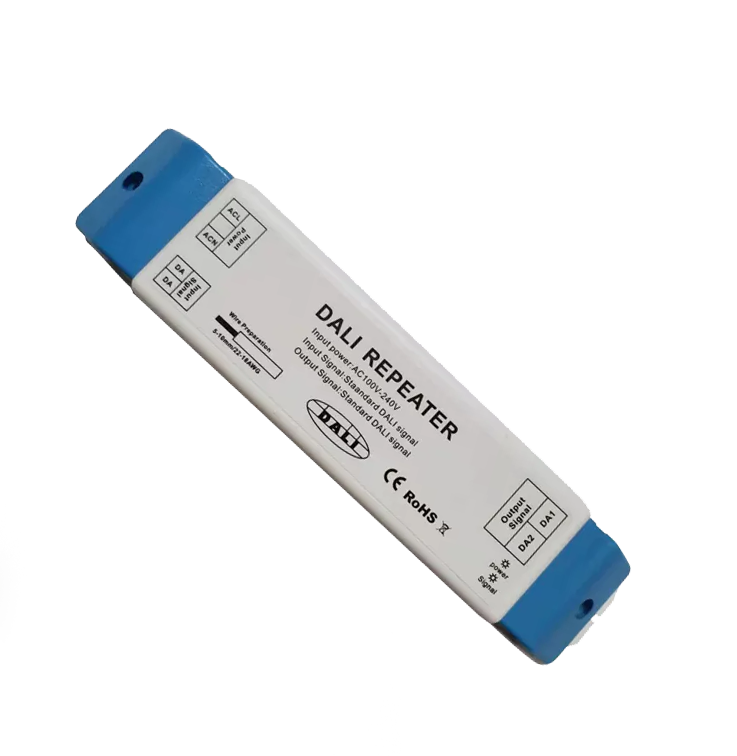

DL812 LED DALI Bus System Signal Repeater

SKU : DL812

Price

50.00 USD


55.00 USD

 (-9%)
Quantity to buy
Total 50.00 USD

Do not have enough stock

Out of stock

DL812 LED DALI Bus System Signal Repeater

DALI signal splitter for DALI Lighting control system

Essential details

  • Warranty(Year): 2-Year / Lighting solutions service: Lighting and circuitry design, Project Installation / Product Weight(kg): 0.12 / Place of Origin: Guangdong, China / Brand Name: leynew Type: MANUAL SWITCH
  • Max. Load Power: 1W / Connection Mode: common code Input signal: Standard DALI signal / Input current: ≤3mA / Output current: ≤200mA / IP Rating: IP20 / Certification: RoHS / Application: Lighting Controller
  • CRI (Ra>): Working temperature: 20C - +60C / Product name: DL812 / Size: L195mm*W45mm*H40mm

หมายเหตุ : สินค้ารายการนี้ มีศูนย์ บริการในประเทศ,มีอะไหล่เครื่องราคาส่งพร้อมช่างผู้ชำนาญ มีบริการติดตั้ง ฟรี สอนการใช้งานฟรี และให้คำแนะนำกรณีมีช่างติดตั้งเอง จัดส่งถึงมือลูกค้าก่อนชำระเงิน ค่าจัดส่งค่าใช้จ่ายอัตตราของผู้ให้บริการรายต่างๆ ตามบิล สำหรับร้านค้าและช่างมีราคา พิเศษ ร้านค้าหรือช่างสามารถสมัครสมาชิกสะสมแต้ม เพื่อแลกของรางวัลได้ที่หน้าเวปไซด์ มีของรางวัลหลายรายการ ( สินค้านี้ซื้อ 1 ระบบ ขึ้นไป ส่งฟรี ) รับตัวแทนจำหน่าย ฟรีข้อมูลสินค้า รับสอนประกอบและตรวจซ่อมฟรี ในเวลารับประกัน 2 ปี / ไม่มีค่าใช้จ่าย / มีอะไหล่และเครื่องมือในราคาช่าง / มีบริการปรับปรุง ระบบงานเพื่อให้มีประสิทธิภาพในการประหยัดพลังงาน ให้ระบบทำงานเพื่อเพิ่มประสิทธิภาพลดการซ่อมยึดอายุการใช้งาน สินค้านี้ขายโครงการหรือร้านค้าในราคาส่ง ราคาที่เสนอต่อ ชิ้น ราคาที่เสนอยังไม่รวมภาษีมูลค่าเพิ่ม และสัญญาบริการอื่นๆ ตามใบเสนอราคา สินค้านี้ต้องตรวจสอบล่าสุดก่อนส่งถึงมือผู้ใช้งานตามมาตรฐานของผู้ผลิตเพื่อลดปัญหาการเสื่อมคุณภาพจากการจัดเก็บที่ไม่ถูกต้องเป็นเวลานาน

Order tracking

DALI signal Repeater-Enhanced signal Increase transmission distance Signal Amplifier

Summary

  • DALI repeater ใช้ชิปควบคุมคอมพิวเตอร์ขั้นสูง ผลิตภัณฑ์นี้สามารถปรับปรุงสัญญาณ DALI ขยายระยะการส่งสัญญาณ DALI สามารถขยายระยะการส่งสัญญาณ DALI จาก 300m เป็น 600m สามารถใช้สำหรับสร้าง DALI Star Network
  • DALI repeater adopt advanced computer control chip, this product can enhance DALI signal, expand DALI signal transmission distance, can expand the DALI signal transmission distance from 300m to 600m, can use for build DALI Star Network

พารามิเตอร์ทางเทคนิค / Technical parameters

 Power supply  AC100-240V
 Input signal  Standard DALI signal
 Output signal  Standard DALI signal
 Input current  ≤3mA
 Output current ≤200mA
 Connection mode Spring loaded from the screw connection mode,Terminal diameter 2.6mm
 Working temperature  -20-60 ℃
 protect ion grade  IP20

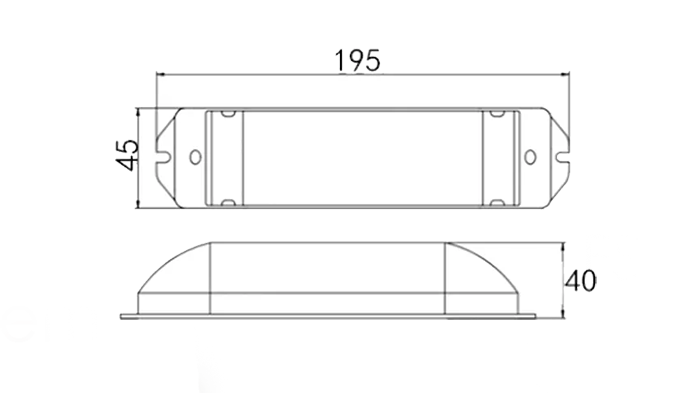

External Dimension

แนวทางการใช้งาน / Direction for use

 1. ไฟ DC17V ภายในเครื่องทวนสัญญาณ DALI สัญญาณเอาต์พุต DALI หน่วยจ่ายไฟนอกสุดโดยไม่มีโควต้า

2. เชื่อมต่อสายสัญญาณก่อน จากนั้นจึงต่อสายสัญญาณขาออก และสุดท้ายคือสายไฟ โปรดตรวจสอบให้แน่ใจว่าไม่มีการลัดวงจรเกิดขึ้นระหว่างสายเชื่อมต่อก่อนที่คุณจะเปิดเครื่อง

3. ไฟแสดงสถานะสีแดง: ไฟแสดงการทำงานปกติบนแหล่งจ่ายไฟสวิตช์ภายในตัวแทนเป็นการทำงานปกติ

4. ไฟแสดงสถานะสีเขียว: ไฟแสดงสถานะสัญญาณ, ปกติเปิดแสดงถึงอินพุตสัญญาณ, ส่องแสงในนามของการสื่อสารปกติ

5. เนื่องจากความล่าช้าของสัญญาณ ดังนั้นในหนึ่งบรรทัดจึงไม่สามารถเชื่อมต่อตัวทวนสัญญาณ DALI หลายตัวได้

6. 64 ที่อยู่ DALI สามารถตั้งค่าใน DALI BUS หมายเลขอุปกรณ์ควบคุมสูงสุดของ DALI BUS เดิมจะเหมือนกัน



1. DC17V power inside the DALI repeater,The output signal DALI power supply units outside the end without quota

2. Connect the signal wire first,then the output signal wire, finally the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;

3. Red indicator light:Power light,Normally on representative internal switch power supply is normal work.

4. Green indicator light: the signal indicator light,Normally on represents a signal input,Shine on behalf of the normal communication.

    5. Because signal delay, so in one line can not connect multiple DALI signal repeaters.

6. 64 DALI address can set in DALI BUS, original DALI BUS maximum control equipment number is the same.
