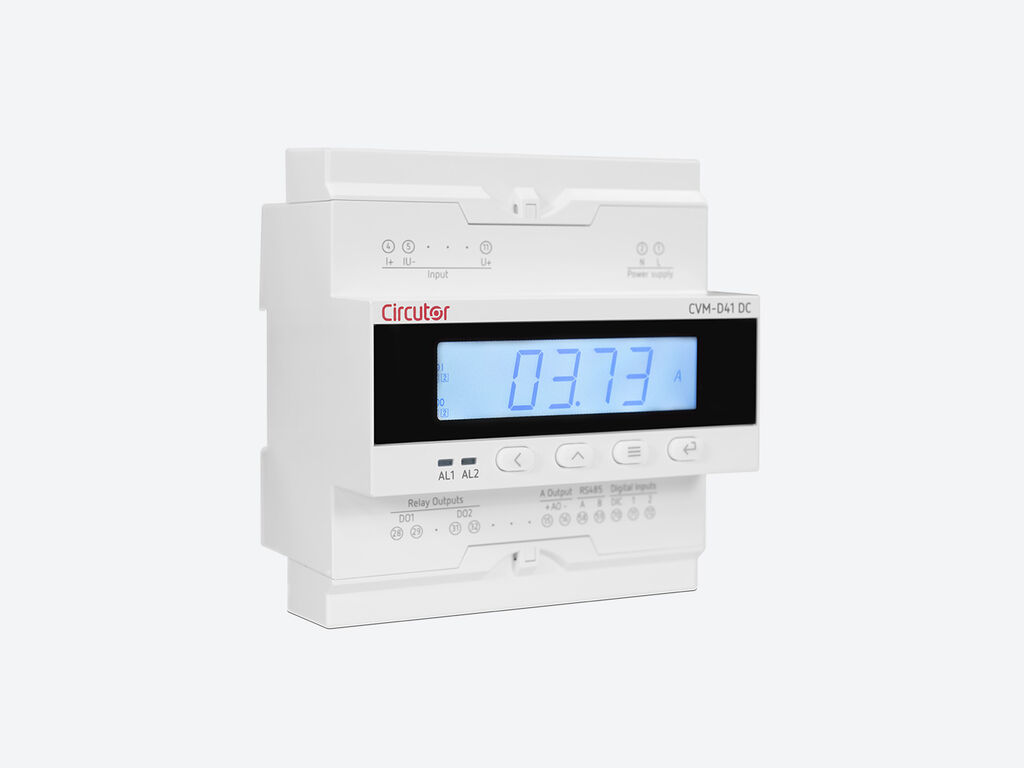

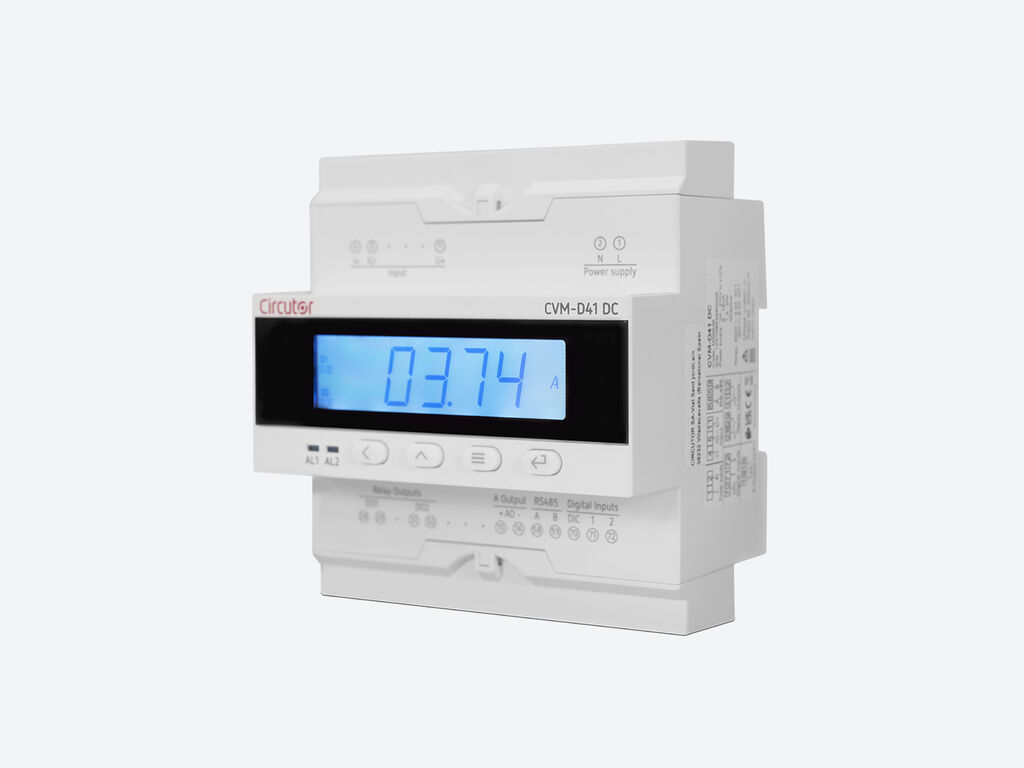

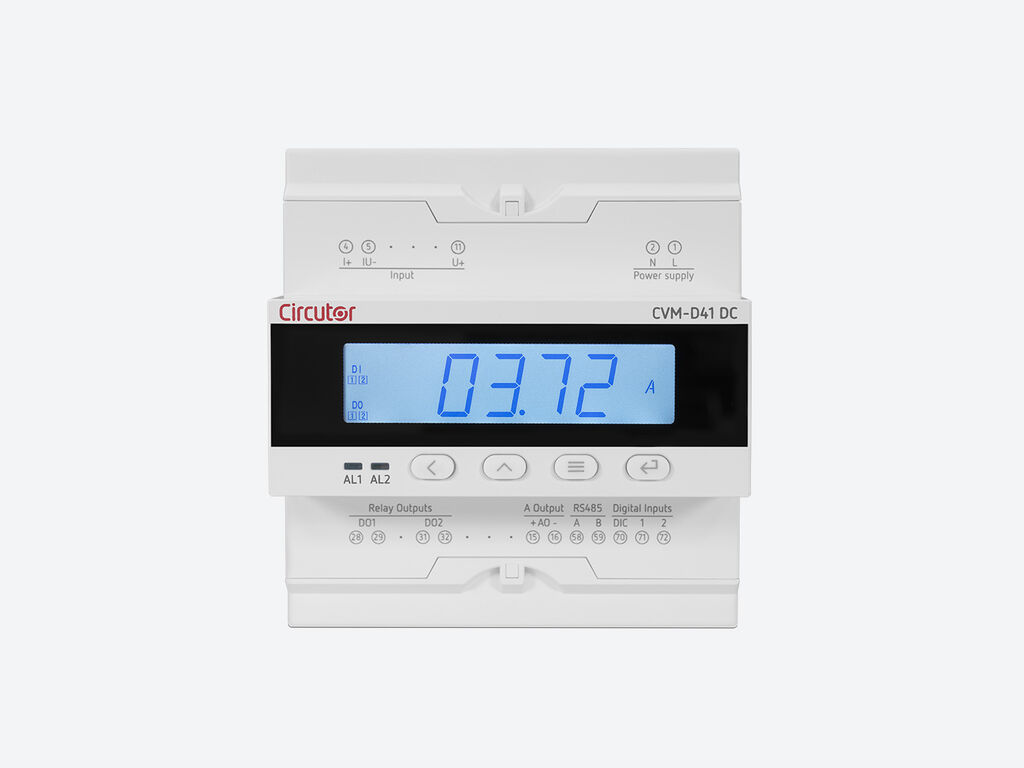

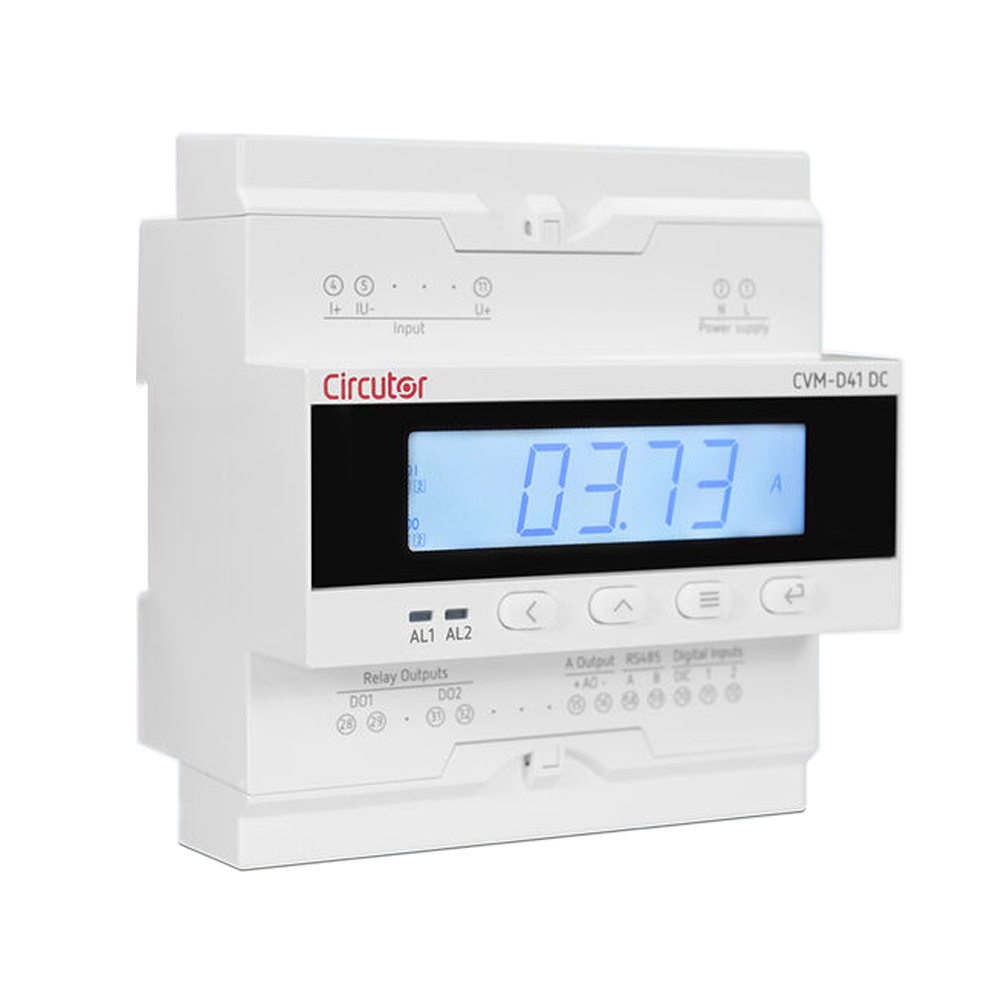

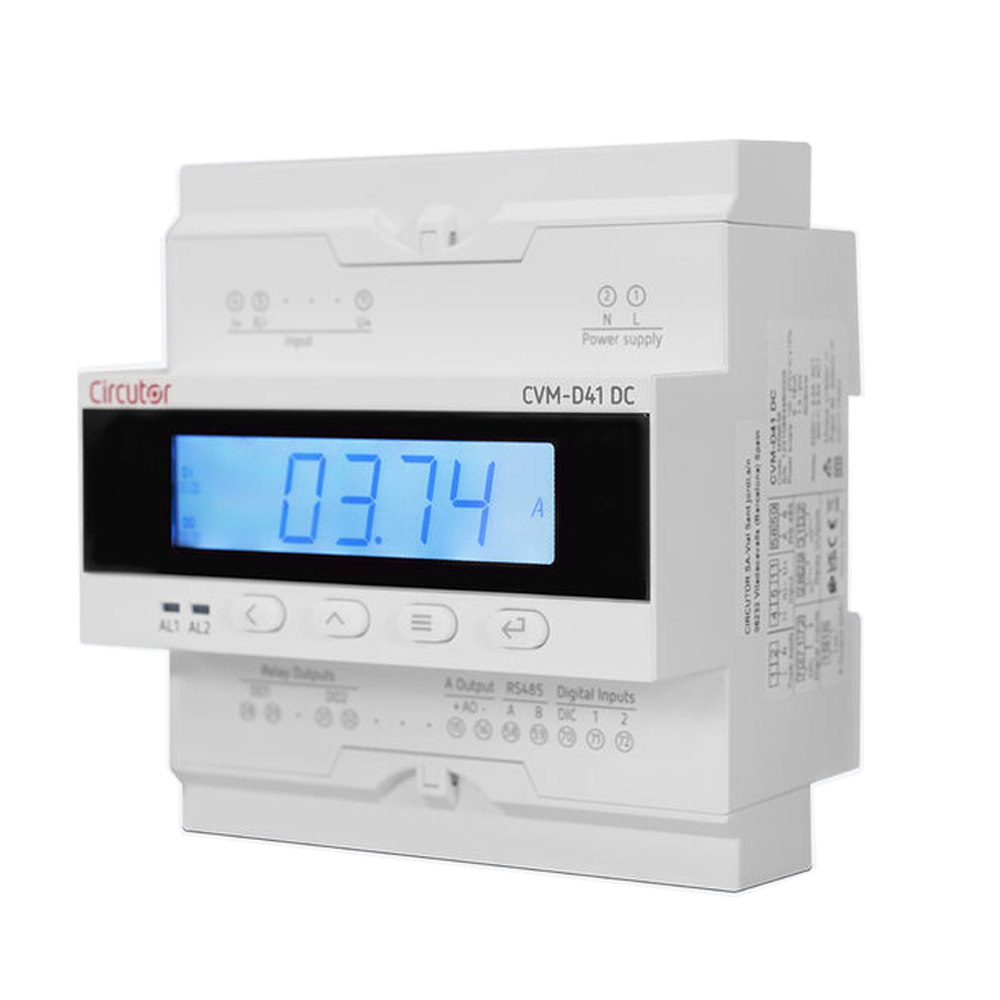

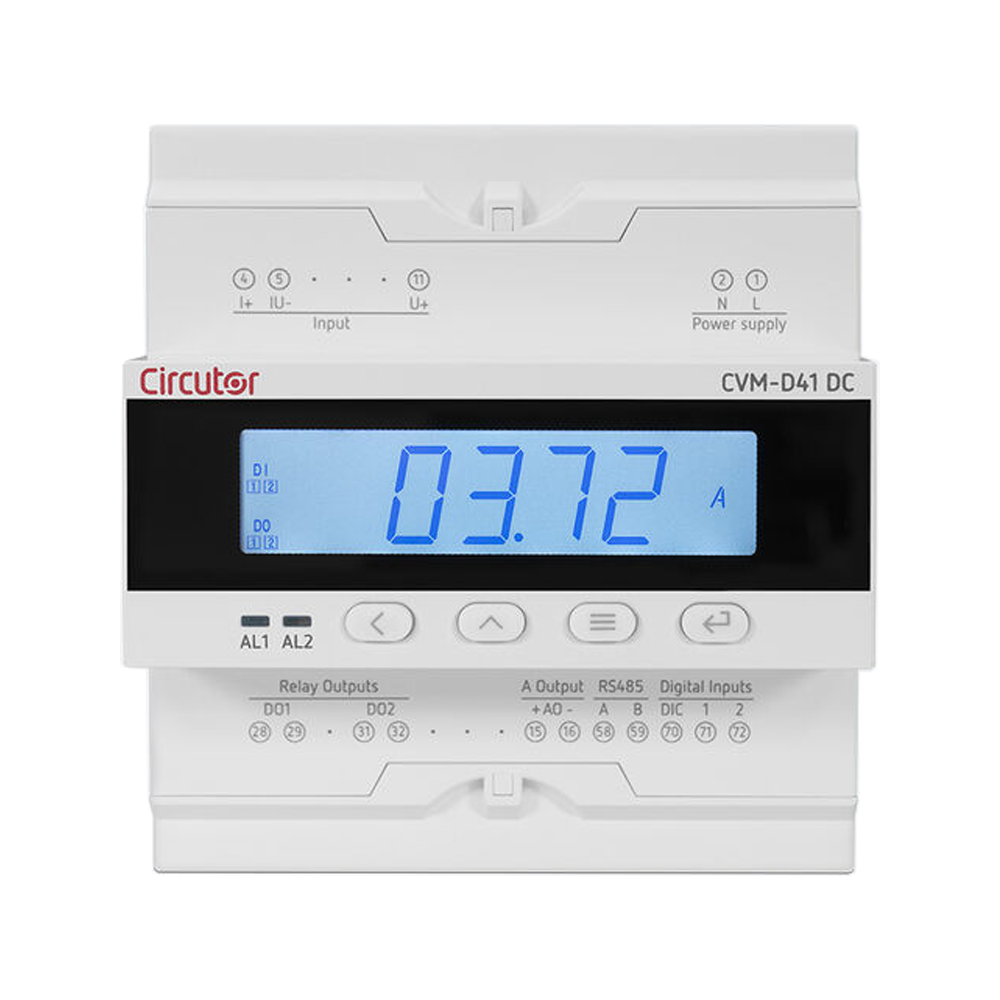

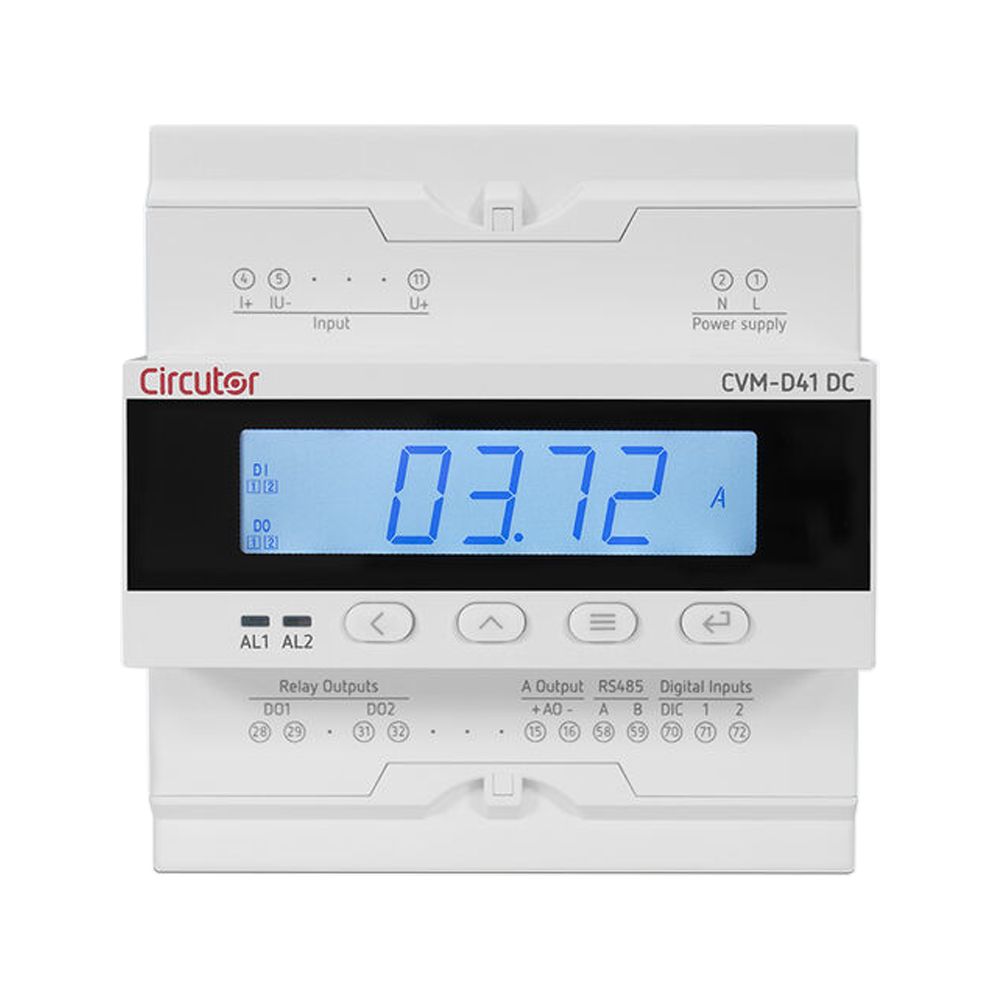

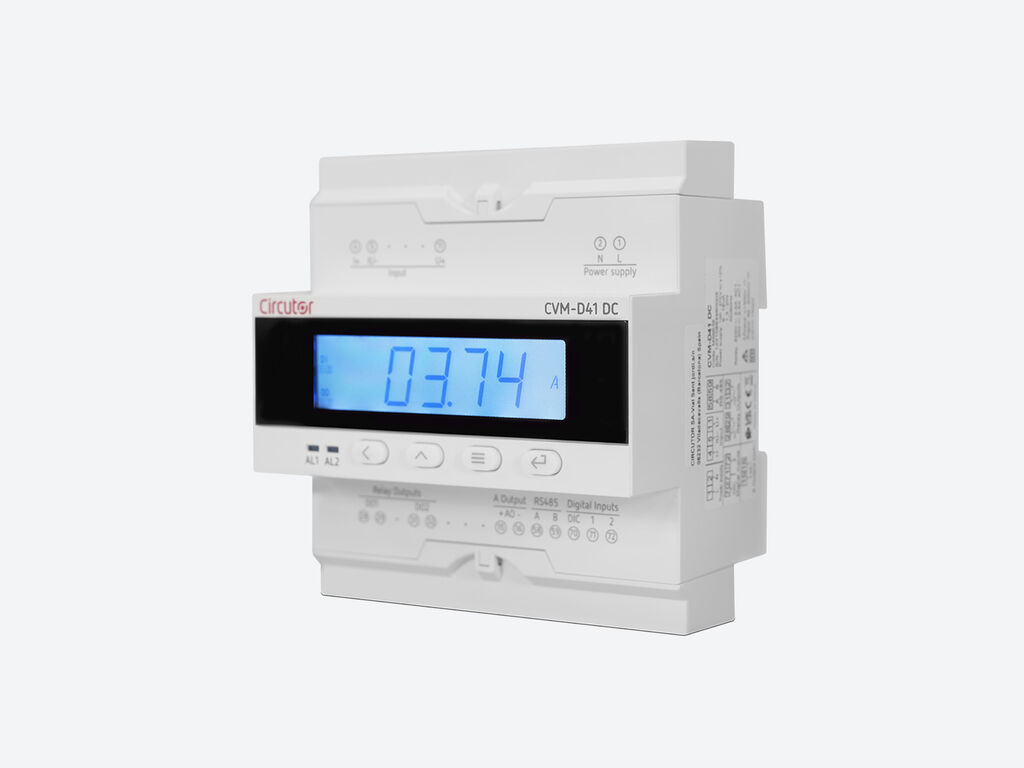

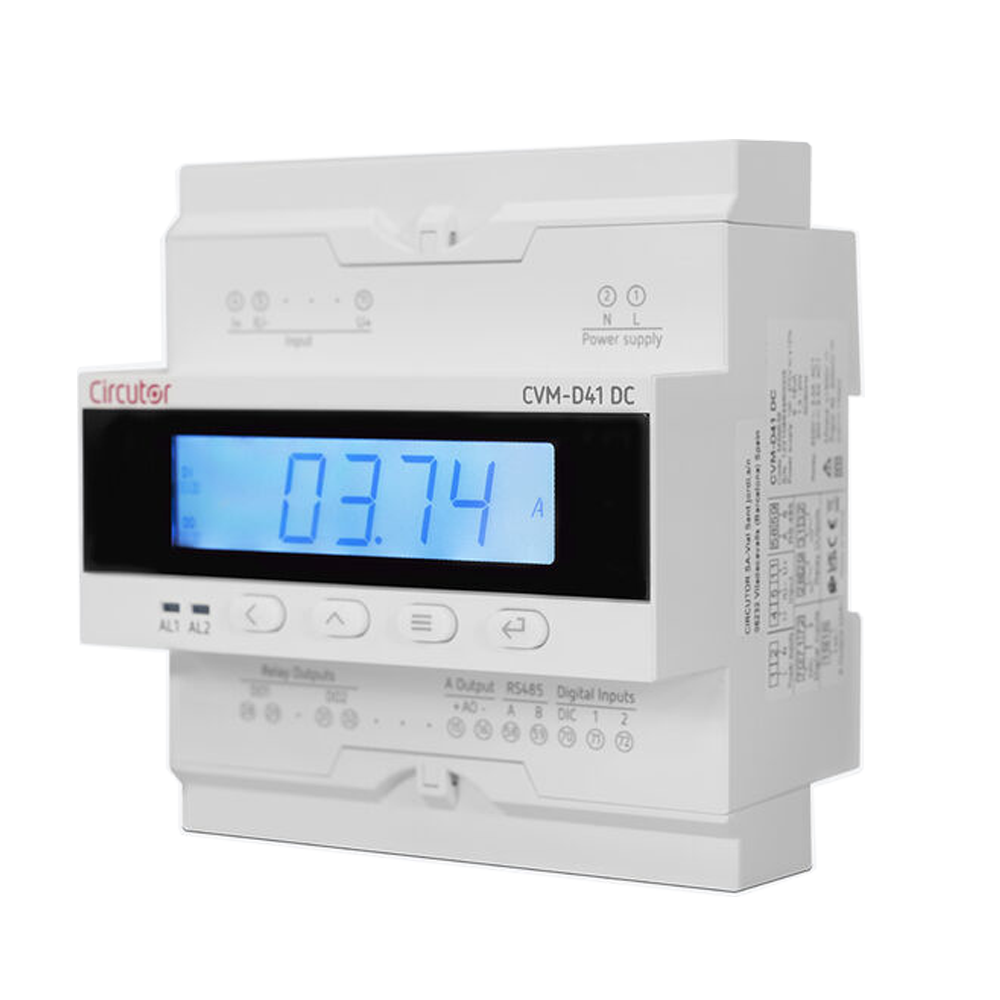

CVM-D41 DC V, Digital multimeter DIN rail, 2 output relays

SKU : CVM-D41 DC V Step

Price

230.00 USD


255.00 USD

 (-10%)
Quantity to buy
Total 230.00 USD

Do not have enough stock

Out of stock

CVM-D41 DC V, Digital multimeter DIN rail, 2 output relays

Code: M5663A0040000

  • Protocol: Modbus/RTU
  • Módules: 6
  • IP: 54
  • Communications: RS-485
  • Nº relays: 2
  • Digital inputs: 2
  • Analog output: 1 (0 ... 10V)
  • System: DC (Shunt)
  • Measurement Range (V): ± 150 / 300 /600 / 1000 / 1500 Vdc
  • Measurement Range (A): 50 / 60 / 75 / 100 / 150 / 200 / 250 / 300 / 400 / 600 mV
  • Parameters: V/A/kW/kWh dc
  • Mounting: DIN Rail

หมายเหตุ : สินค้ารายการนี้ มีศูนย์ บริการในประเทศ,มีอะไหล่เครื่องราคาส่งพร้อมช่างผู้ชำนาญ มีบริการติดตั้ง สอนการใช้งานฟรี และให้คำแนะนำกรณีมีช่างติดตั้งเอง จัดส่งถึงมือลูกค้าก่อนชำระเงิน ค่าจัดส่งค่าใช้จ่ายอัตตราของผู้ให้บริการรายต่างๆ ตามบิล สำหรับร้านค้าและช่างมีราคา พิเศษ ร้านค้าหรือช่างสามารถสมัครสมาชิกสะสมแต้ม เพื่อแลกของรางวัลได้ที่หน้าเวปไซด์ มีของรางวัลหลายรายการ ( สินค้านี้ซื้อ 1เครื่อง ขึ้นไป ส่งฟรี ) รับตัวแทนจำหน่าย ฟรีข้อมูลสินค้า รับสอนประกอบและตรวจซ่อมฟรี / ไม่มีค่าใช้จ่าย / มีอะไหล่และเครื่องมือในราคาช่าง / มีบริการปรับปรุง เครื่องจักรเพื่อให้มีประสิทธิภาพในการประหยัดพลังงาน ให้ระบบทำงานเพื่อเพิ่มประสิทธิภาพลดการซ่อมยึดอายุการใช้งาน สินค้านี้ขายยกลังในราคาส่ง ราคาที่เสนอต่อ ชิ้น สินค้านี้ต้องตรวจสอบล่าสุดก่อนส่งถึงมือผู้ใช้งานตามมาตรฐานของผู้ผลิตเพื่อลดปัญหาการเสื่อมคุณภาพจากการจัดเก็บที่ไม่ถูกต้องเป็นเวลานาน

Order tracking

                            Description :



The CVM-D41 DC is a digital power analyzer for installing on a DIN rail. Its screens are operated using buttons to display different electrical parameters in a DC network of up to 1500 VDC, such as voltage, current, power and energy (A·h).

This analyzer has the following key features:

  • DIN rail installation.
  • DC voltage measurement up to 1500VDC CATIIII
  • Shunt current measurement
  • 2 digital inputs + 2 relay outputs + 1 analogue output (0/4...20 mA) or (0 / 2 ... 10 Vdc), depending on the model
  • LED status indicator
  • RS-485 communications (Modbus/RTU)
  • Configuration via Power Studio SCADA

                            Applications :



Measurement and management of installations with a DC power supply:

  • Industrial Applications
  • Electric vehicle charging points
  • Self-supply systems
  • Solar photovoltaic Installations
  • HVAC
  • Industrial process control

              Brochure & Picture Download :
