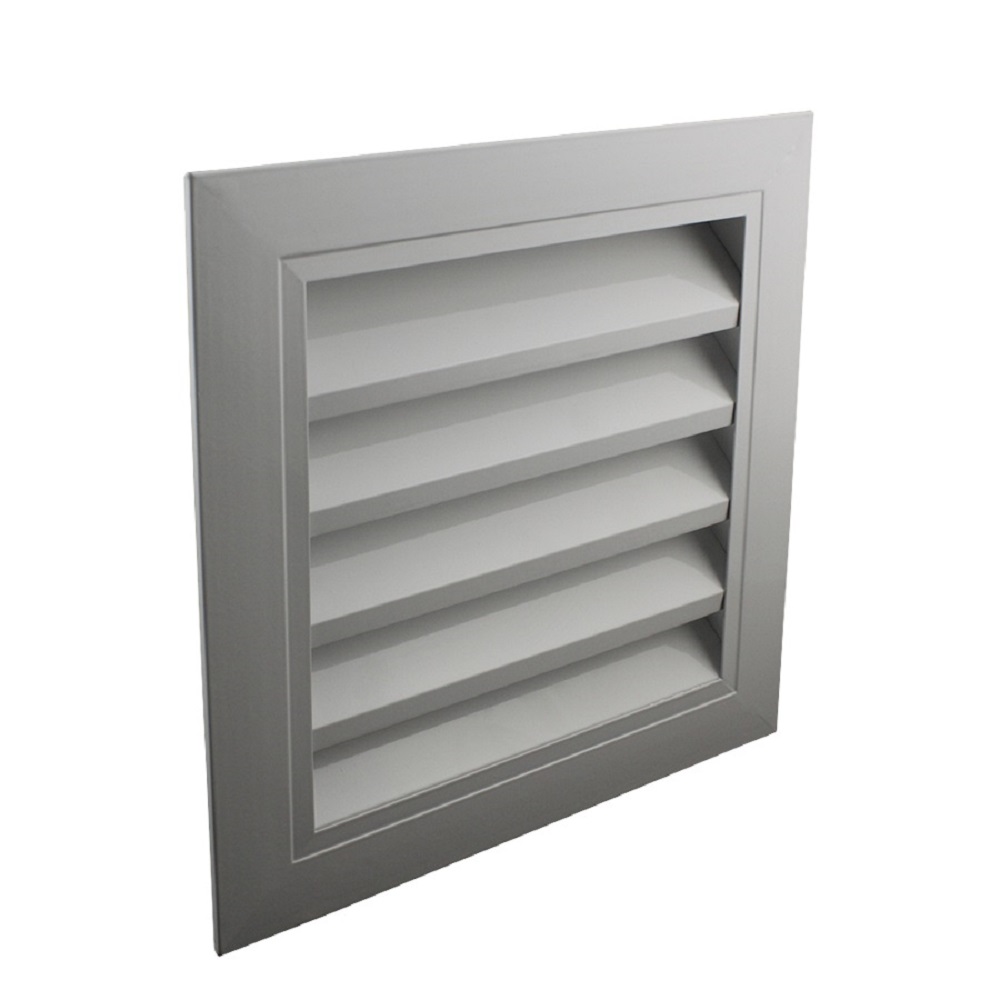

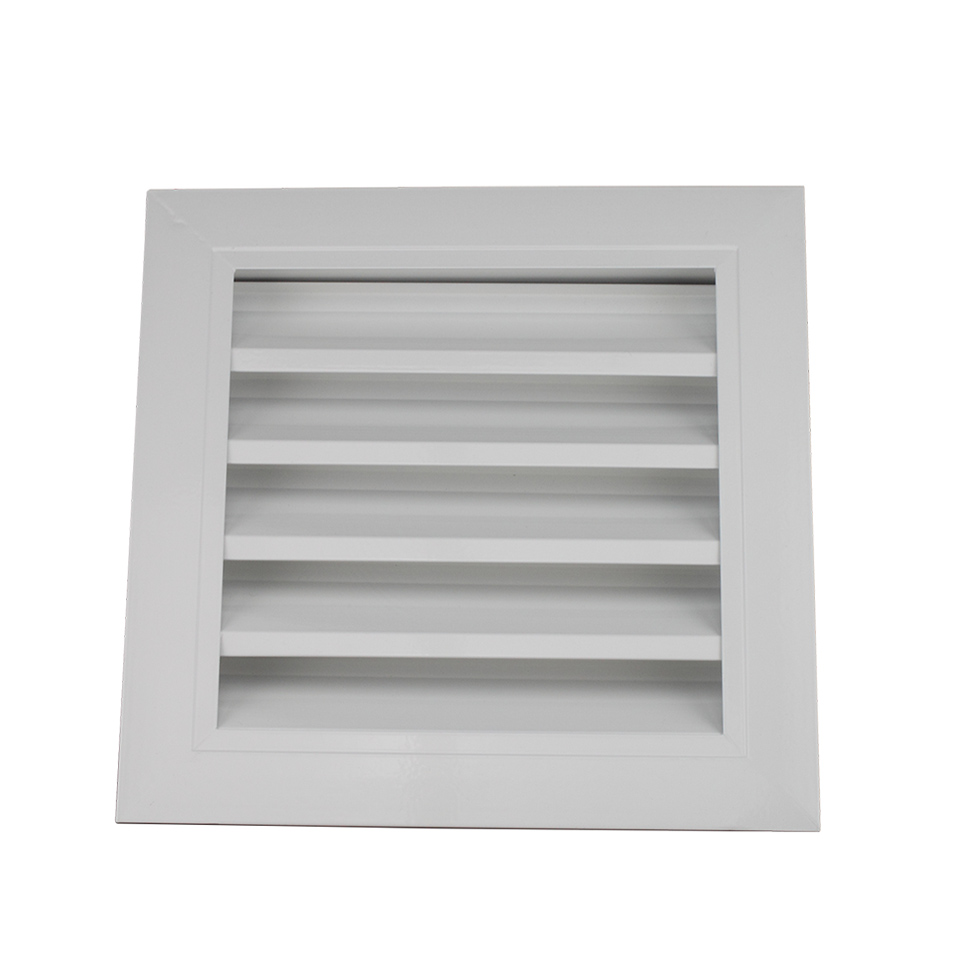

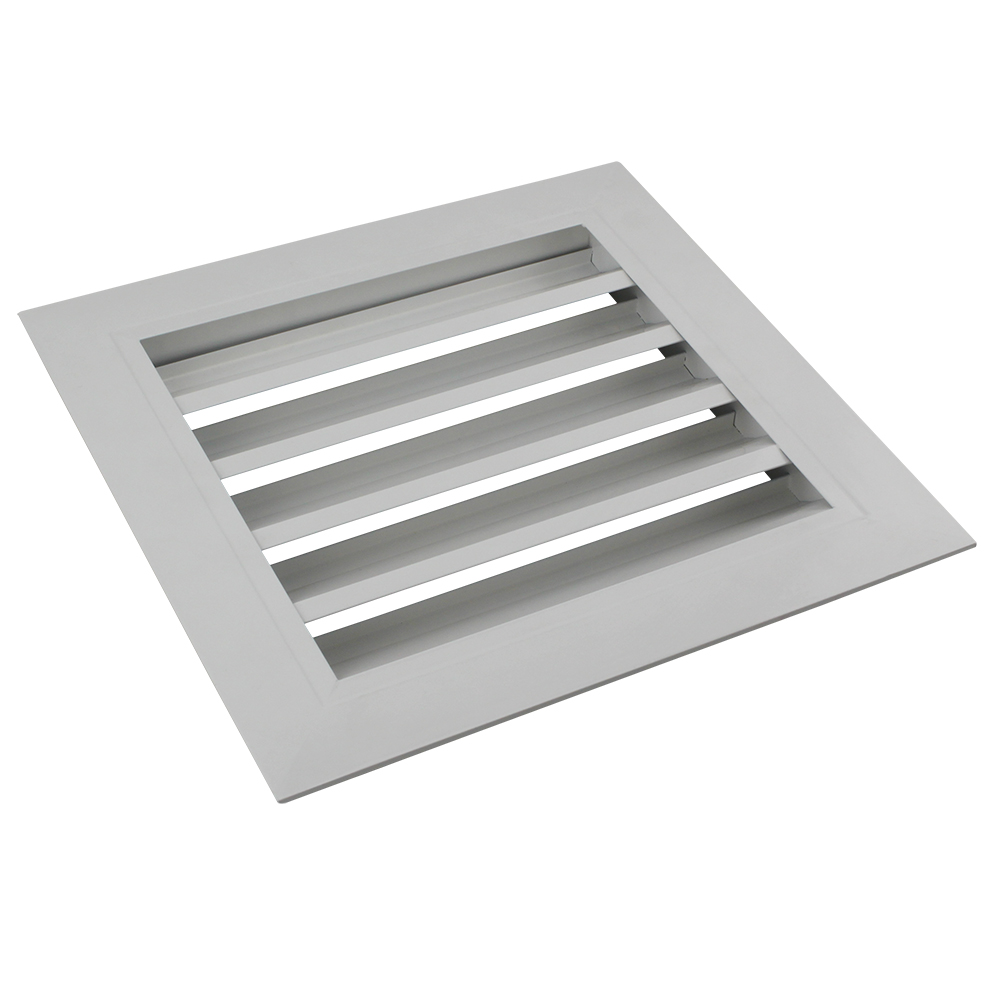

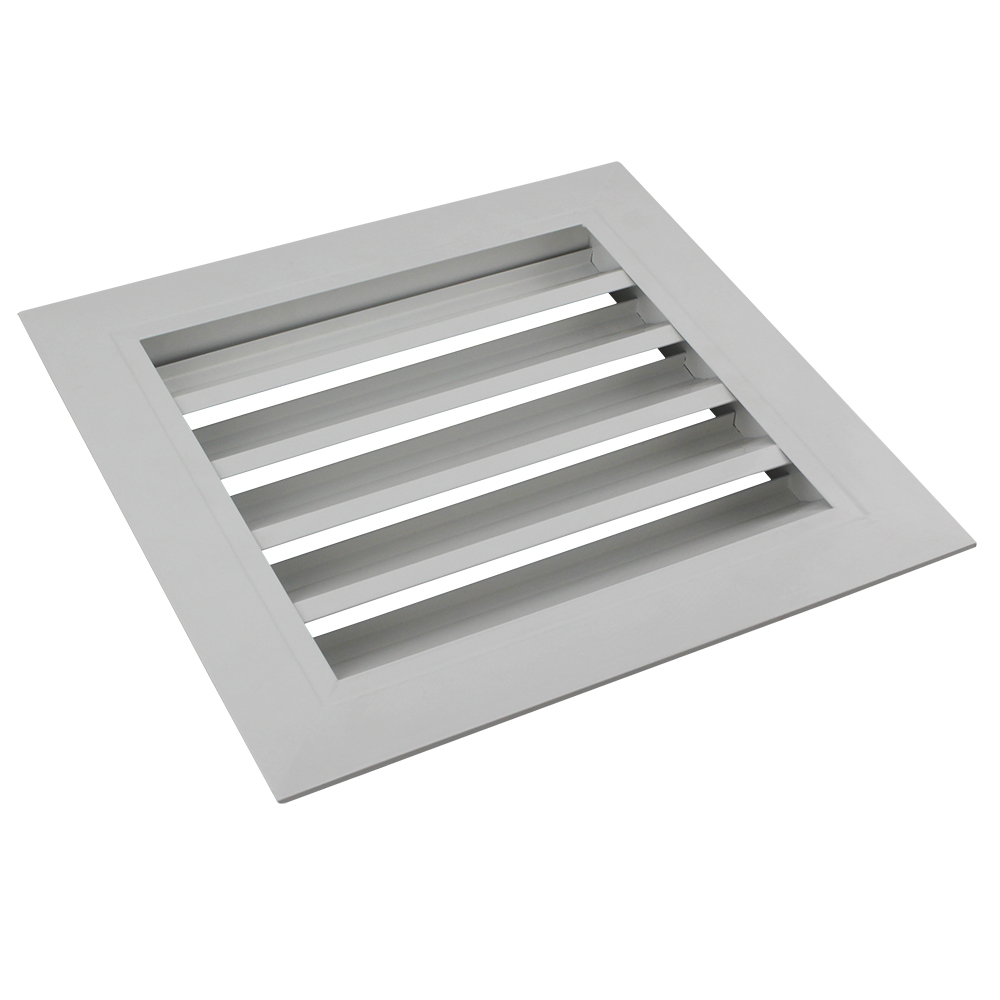

Air Louver FL-A Air Conditioning Aluminium Exterior Wall Waterproof Shutter Prefabricated Fixed Fresh

SKU : Air Louver FL-A

Product not found

Price

8.00 USD

10.00 USD

Quantity to buy
Total

Do not have enough stock

Out of stock

Air Louver FL-A Air Conditioning Aluminium Exterior

Wall Waterproof Shutter Prefabricated Fixed Fresh

Overview :

Hvac weatherproof intake louver is usually used on the outside of walls to offer fresh air ventilation. The exhaust louvered air vents grille design also gets a mesh to avoiding the insects' entering into rooms.

Product Specification :

  •   Material : Extruded aluminum alloy
  •   Material thickness : 0.8/1.0/1.2mm
  •   Finish : Powder coating/anodized
  •   Standard color : RAL9016, 9010
  •   Size : Any size
  •   Blade : Fixed
  •   Accessories : Filter screen/air duct/filter

หมายเหตุ : สินค้ารายการนี้ มีศูนย์ บริการในประเทศ,มีอะไหล่เครื่องราคาส่งพร้อมช่างผู้ชำนาญ มีบริการติดตั้ง ฟรี สอนการใช้งานฟรี และให้คำแนะนำกรณีมีช่างติดตั้งเอง จัดส่งถึงมือลูกค้าก่อนชำระเงิน ค่าจัดส่งค่าใช้จ่ายอัตตราของผู้ให้บริการรายต่างๆ ตามบิล สำหรับร้านค้าและช่างมีราคา พิเศษ ร้านค้าหรือช่างสามารถสมัครสมาชิกสะสมแต้ม เพื่อแลกของรางวัลได้ที่หน้าเวปไซด์ มีของรางวัลหลายรายการ ( สินค้านี้ซื้อ 1 ระบบ ขึ้นไป ส่งฟรี ) รับตัวแทนจำหน่าย ฟรีข้อมูลสินค้า รับสอนประกอบและตรวจซ่อมฟรี ในเวลารับประกัน 2 ปี / ไม่มีค่าใช้จ่าย / มีอะไหล่และเครื่องมือในราคาช่าง / มีบริการปรับปรุง ระบบงานเพื่อให้มีประสิทธิภาพในการประหยัดพลังงาน ให้ระบบทำงานเพื่อเพิ่มประสิทธิภาพลดการซ่อมยึดอายุการใช้งาน สินค้านี้ขายโครงการหรือร้านค้าในราคาส่ง ราคาที่เสนอต่อ ชิ้น ราคาที่เสนอยังไม่รวมภาษีมูลค่าเพิ่ม และสัญญาบริการอื่นๆ ตามใบเสนอราคา สินค้านี้ต้องตรวจสอบล่าสุดก่อนส่งถึงมือผู้ใช้งานตามมาตรฐานของผู้ผลิตเพื่อลดปัญหาการเสื่อมคุณภาพจากการจัดเก็บที่ไม่ถูกต้องเป็นเวลานาน

Order tracking

         Product Detail :

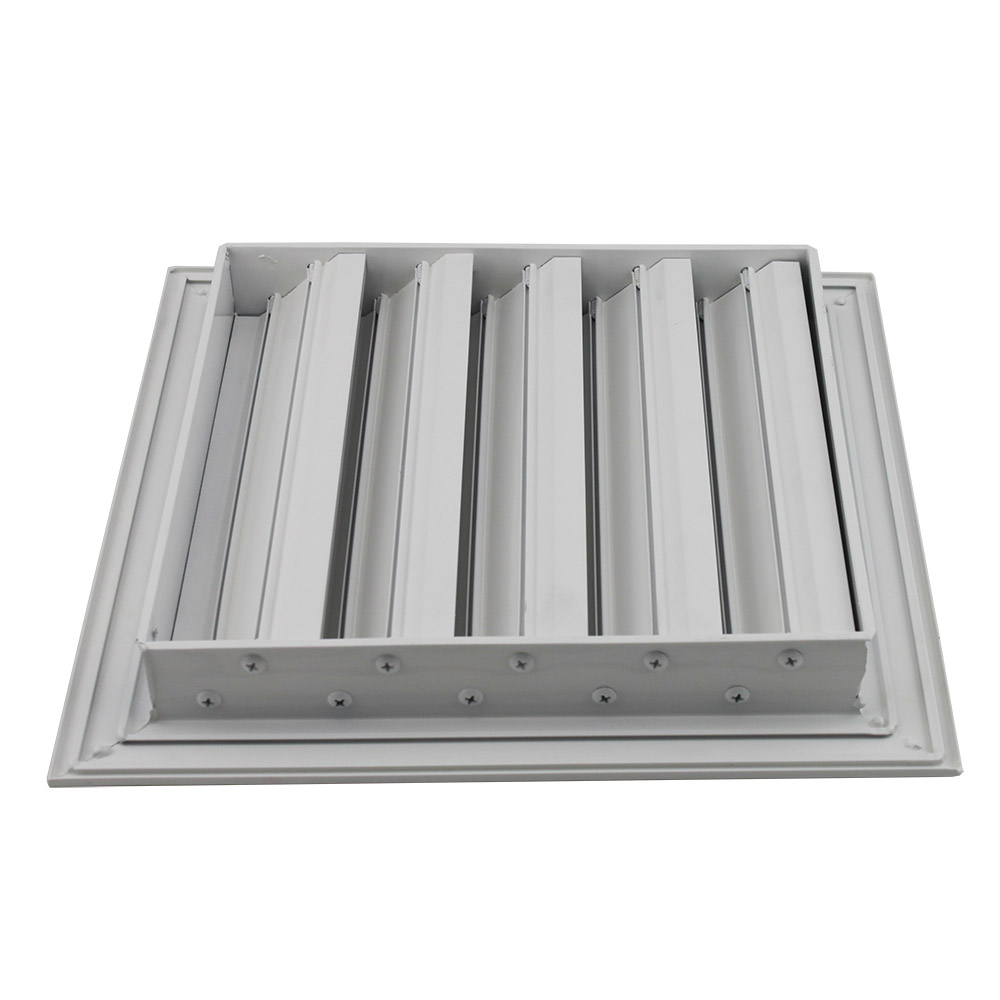

 Construction

Description

  • Frame: High quality extruded aluminum alloy(A6063) profile with 30mm flange as standard.
  • Blades: Aerofoil blades in 45° from aluminum profile
  • Blades spacing: 35mm as standard
  • Support pipe: 8mm diameter aluminum pipe






  • Fresh air louvers consist of a frame and horizontal blade assembly, manufactured with high quality
    Extruded aluminum profile structure has the advantages of corrosion resistance and good rigidity.
  • The blades are at a 45° Angle with a spacing of 30mm and fixed on the inner frame with rivets and support tubes.
  • The overall structure is weatherproof, with blades sloping downward to prevent rain.
  • ​The structure provides about 45% of the effective pressure area.
 Surface Finish Material thickness

  • Powder coated color finish as per RAL color
    Standard color: RAL9016, 9010
  • Natural anodized aluminum finish
  •  Standard 1.0mm



              Brochure & Picture Download :
