Operating Handle :

Operating Handles can operates the breaker ON and OFF by the external handles on the panel door. Various types of handles are prepared.

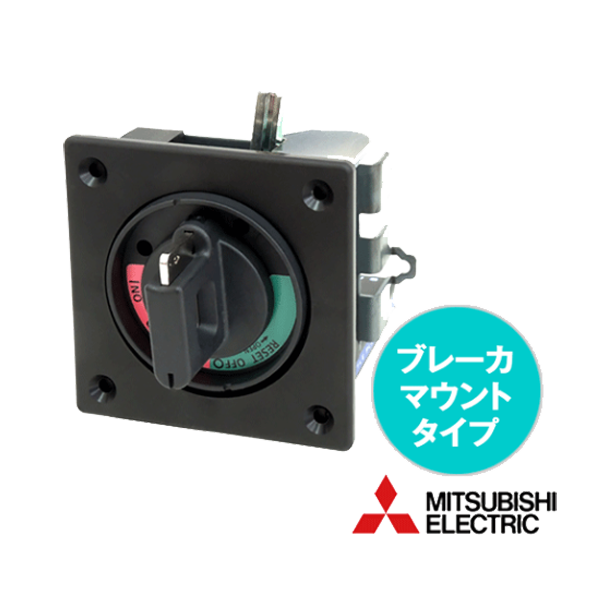

 F-type Operating Handle (Breaker mount type) :

• Operating handle of the breaker mount type to be installed on the circuit breaker.
• It has a safety device which prevents the circuit breaker turning ON while the door is open.
• It can be locked OFF position by padlock.

 V-type Operating Handle (Handle on panel door type) :

• Operating handle of door mount type consisting of operating mechanism to be mounted on the breaker and operating handle on the panel door.
• It can be locked OFF position by padlock.
• The depth between panel door and the breaker can be adjustable by using extension shaft.
• Protection degree : IP65 (IEC60529)
