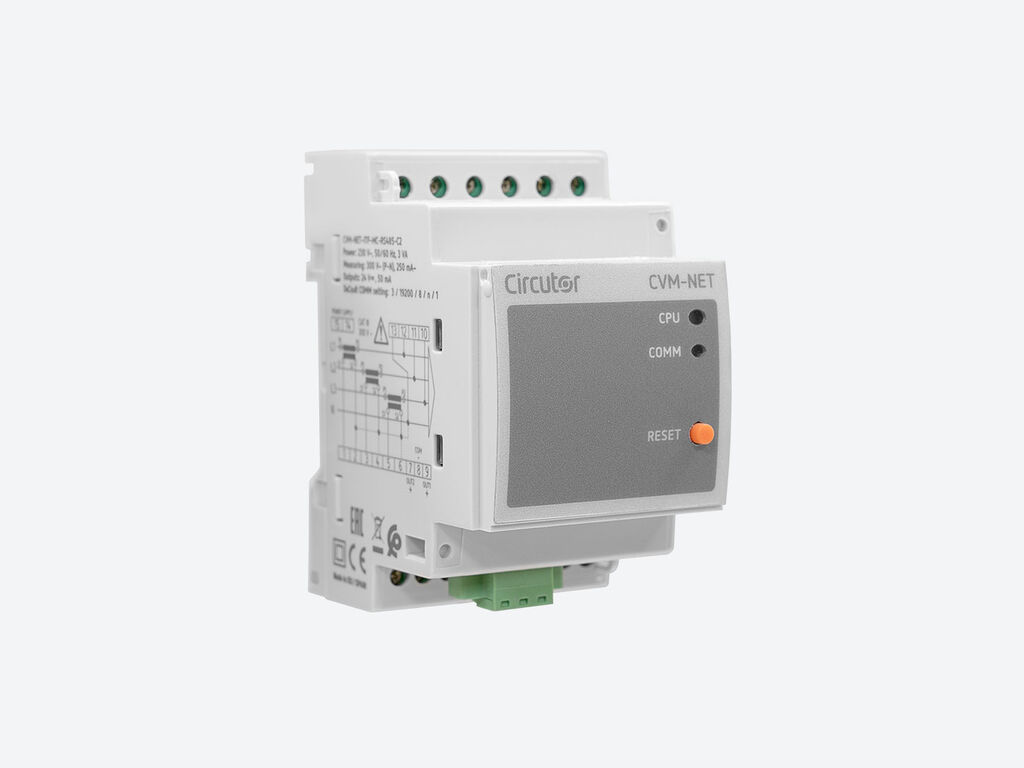

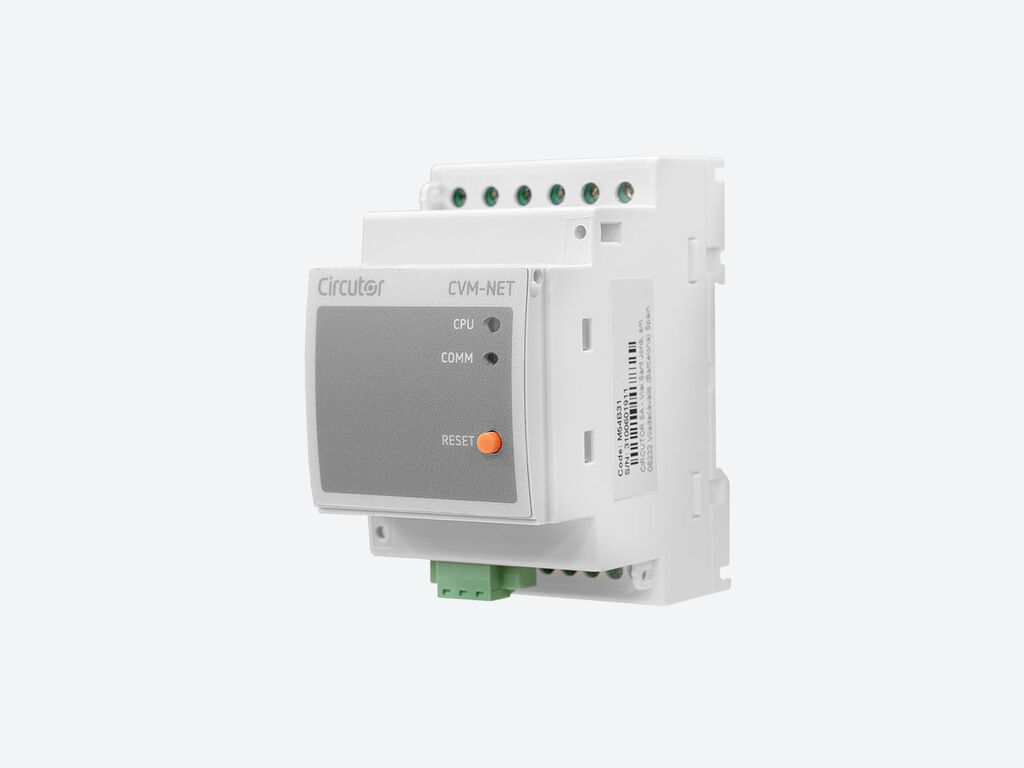

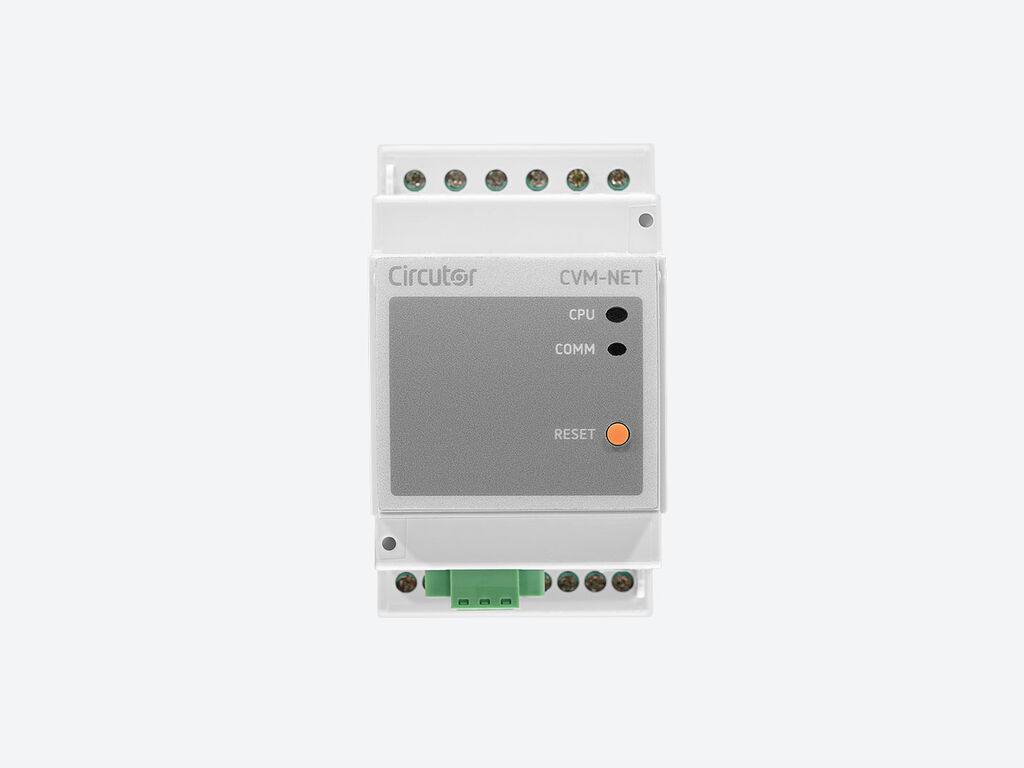

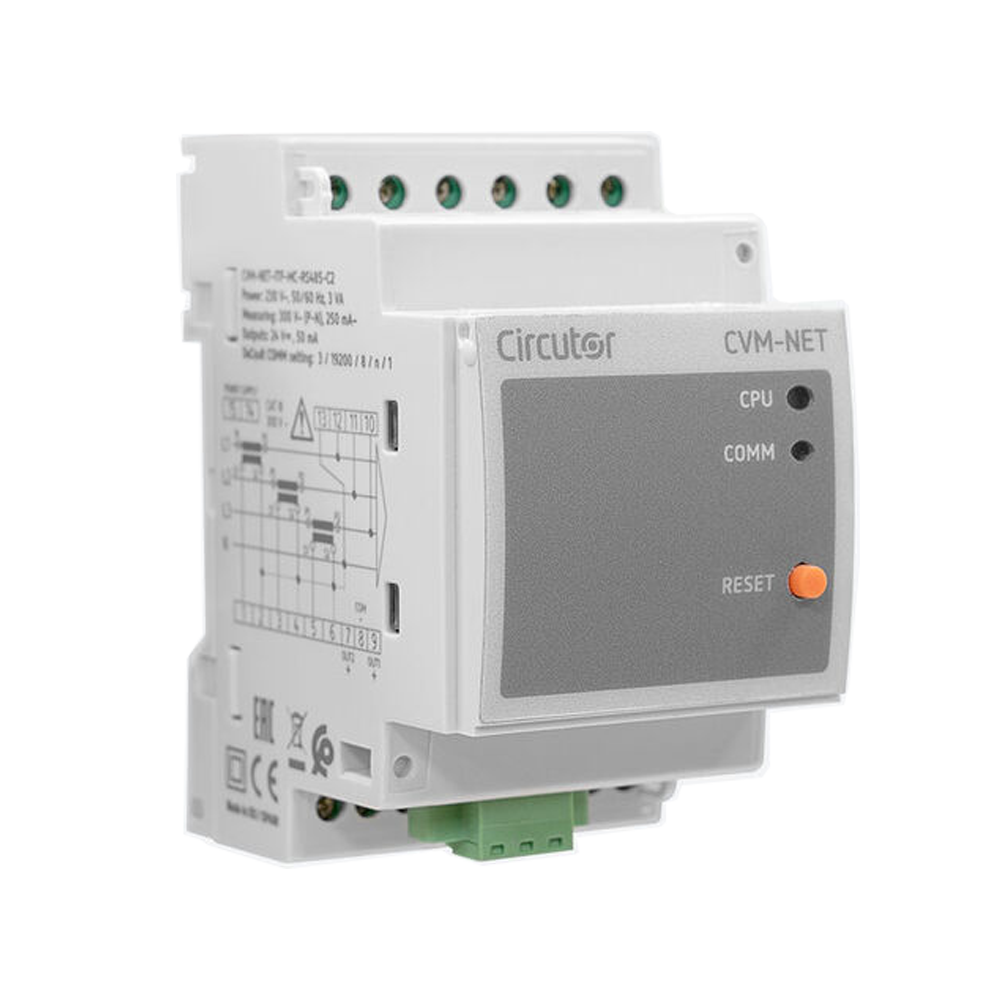

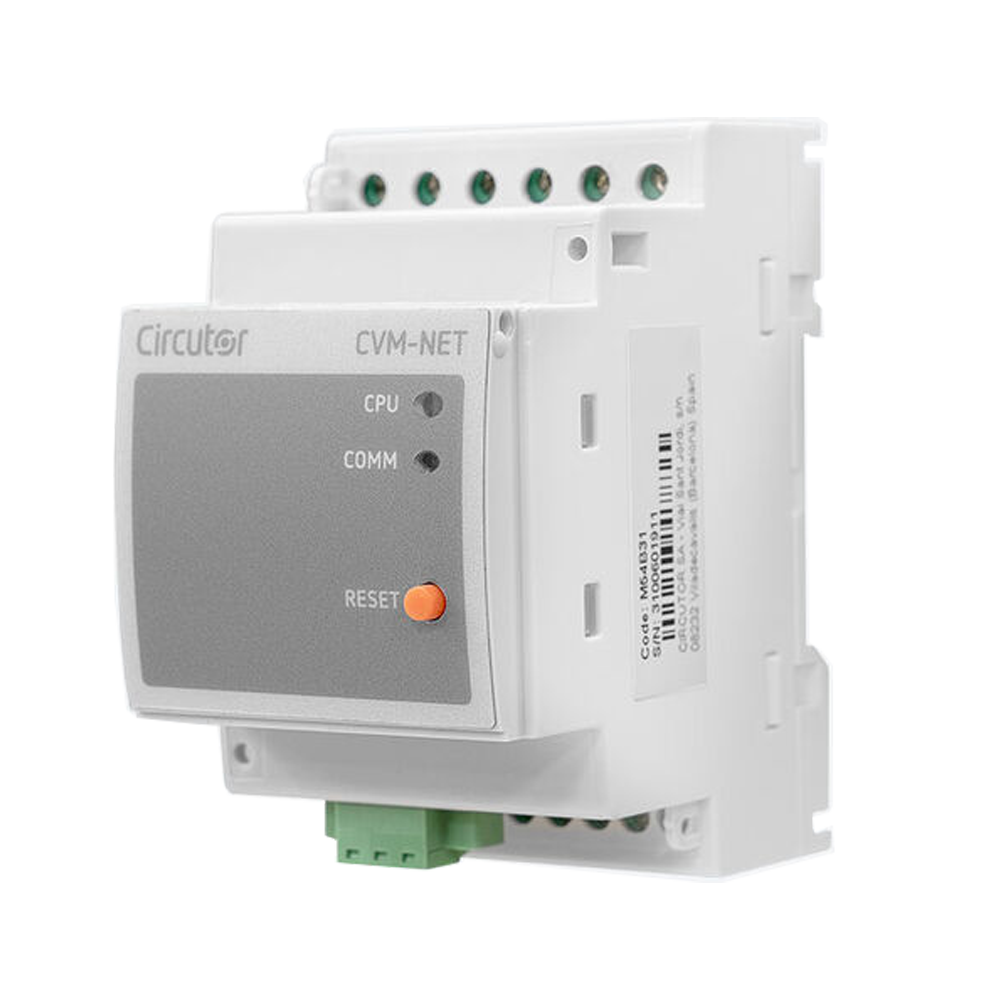

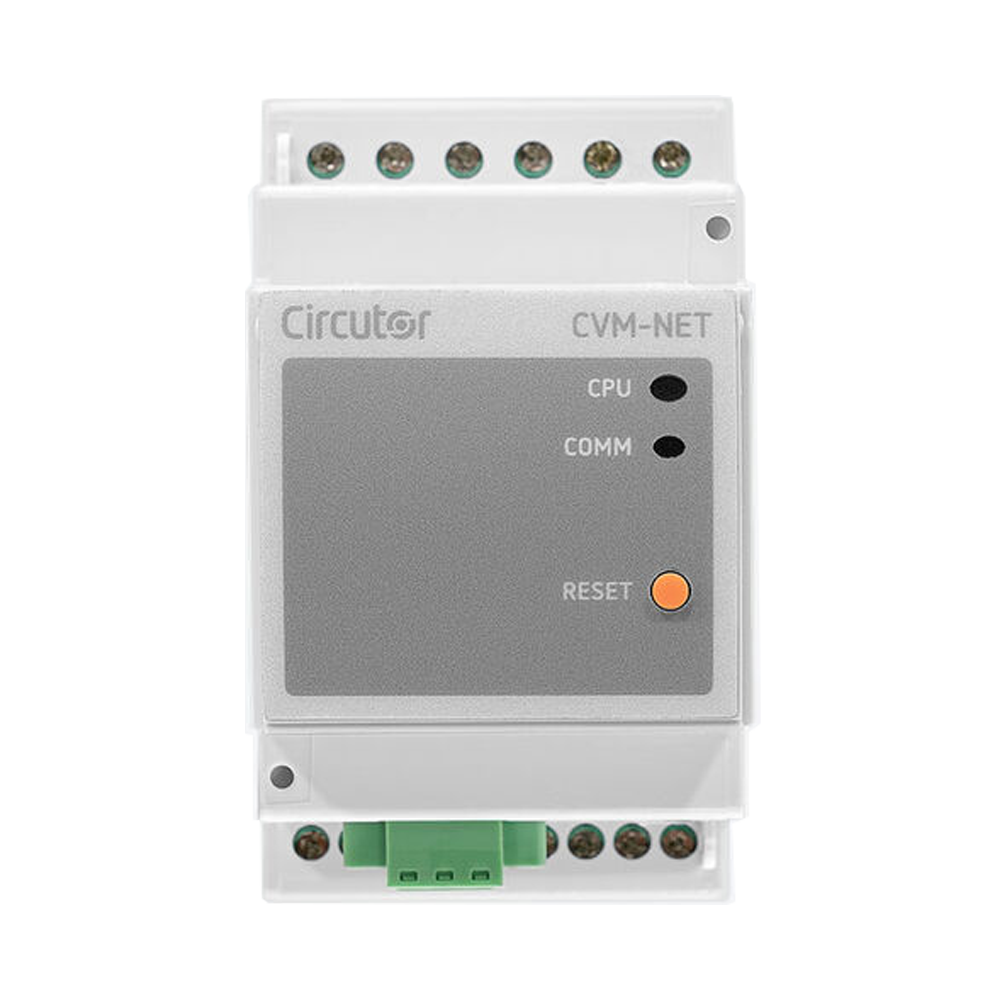

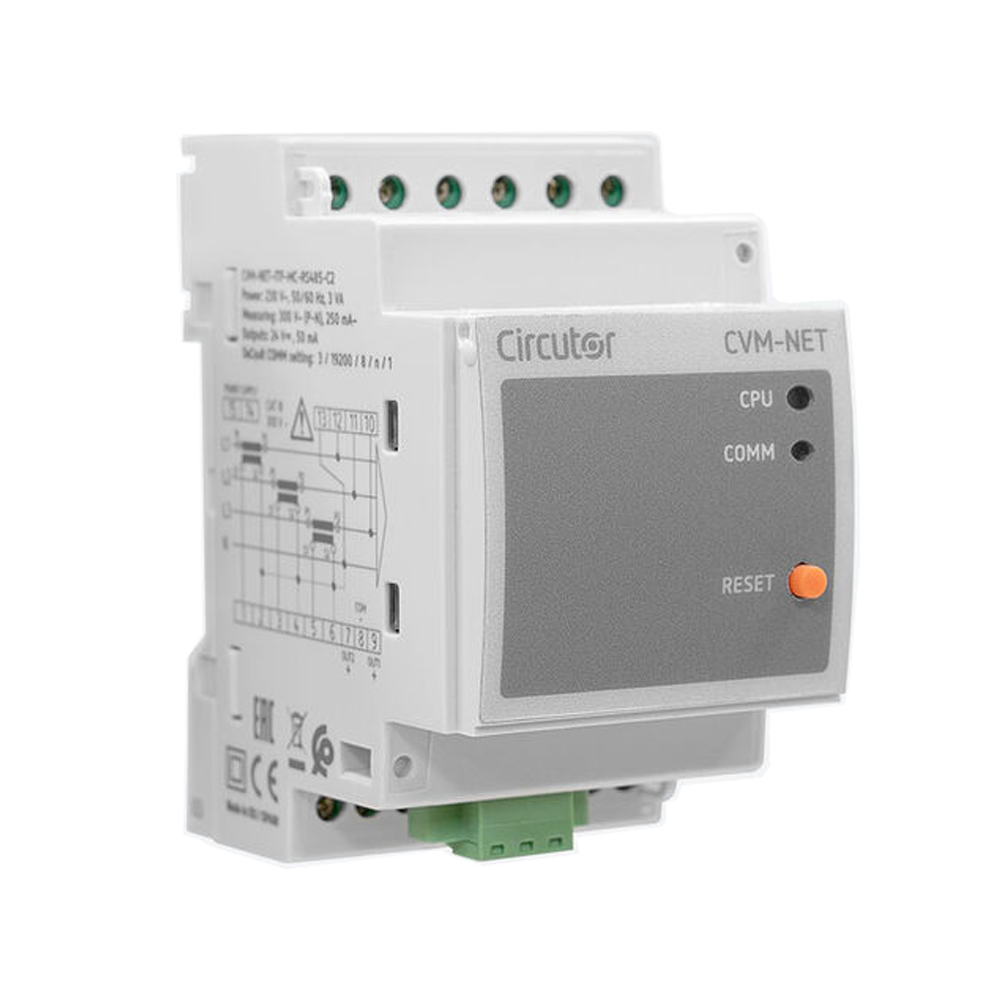

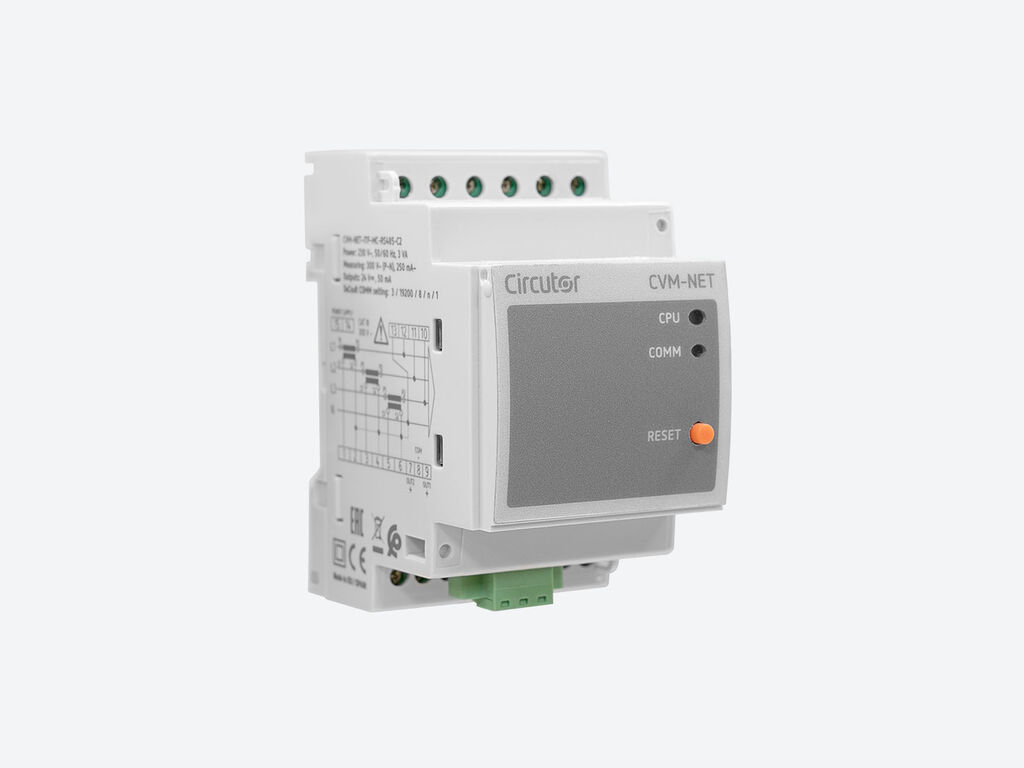

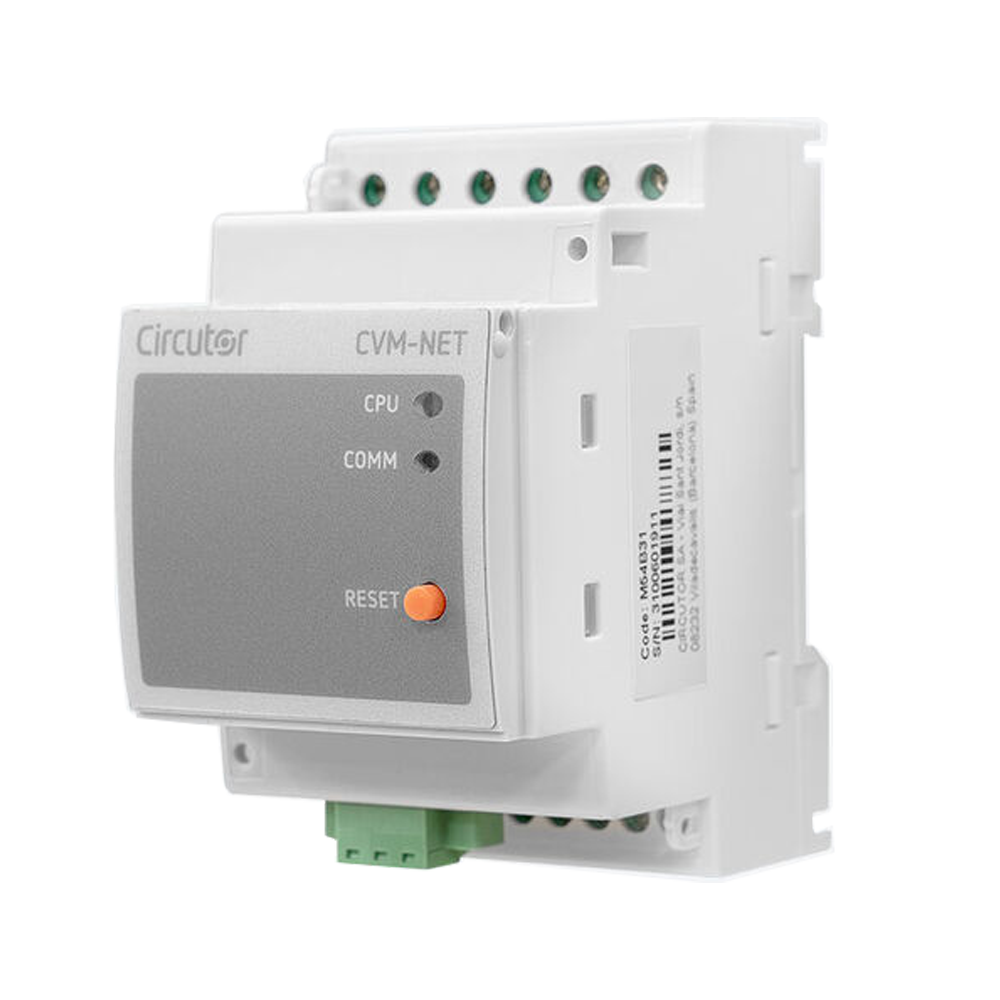

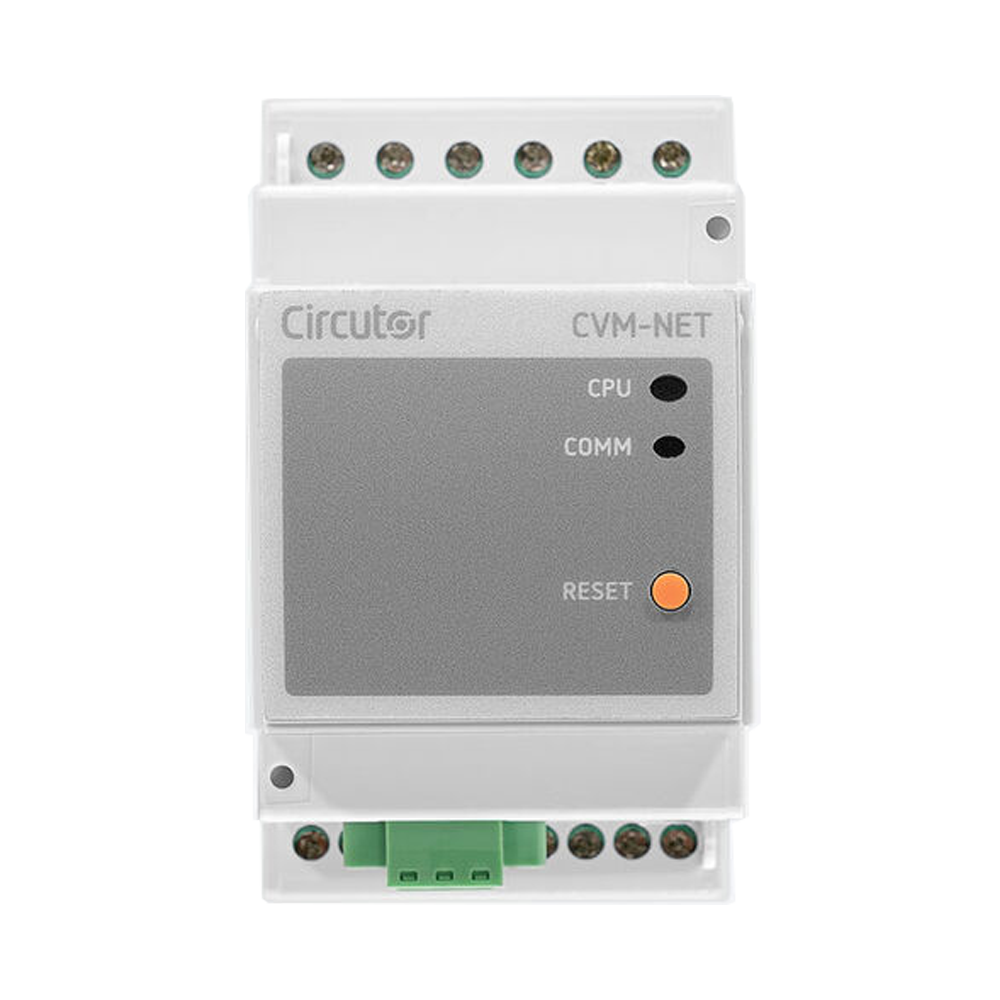

CVM-NET-MC-ITF-485-C2, Power analyzer

                    Description :

 CVM NET is a Power Analyzer for measuring balanced or unbalanced single and three-phase networks. It has been specifically designed for measuring up to 230 electrical parameters and for transmitting this data through the RS-485 communication bus with the Modbus/RTU protocol to the supervision SCADA.

Its main features are:

• DIN rail format of only 3 modules
• Mounted on 72 x 72 mm panel, with adapter front panel (M5ZZF1)
• Measures the current with ... / 5 A and .../250 mA external transformers (MC model), .../333 mV
• Possibility of measuring Medium and Low Voltage networks
• RS-485 communication (Modbus RTU)
• Compatible with PowerStudio / PSS / PSSDeluxe software
• 2 programmable digital outputs
• Universal power supply (optional)
• Sealable

                     Applications :

• Control application on switchboards and low and medium voltage connection points, where an analyzer must be installed on a DIN rail due to space restrictions.
• Alarm control. Maximum value, minimum value and programmable delay.
• Control of active or reactive energy using the impulse output
• Instantaneous data capture, maximum and minimum values of the electrical parameters measured.
